ROTADISK Pneumatic Actuator RD & RDF
Operating Manual – BA3002 EN
8 Repair
Page 58 of 79

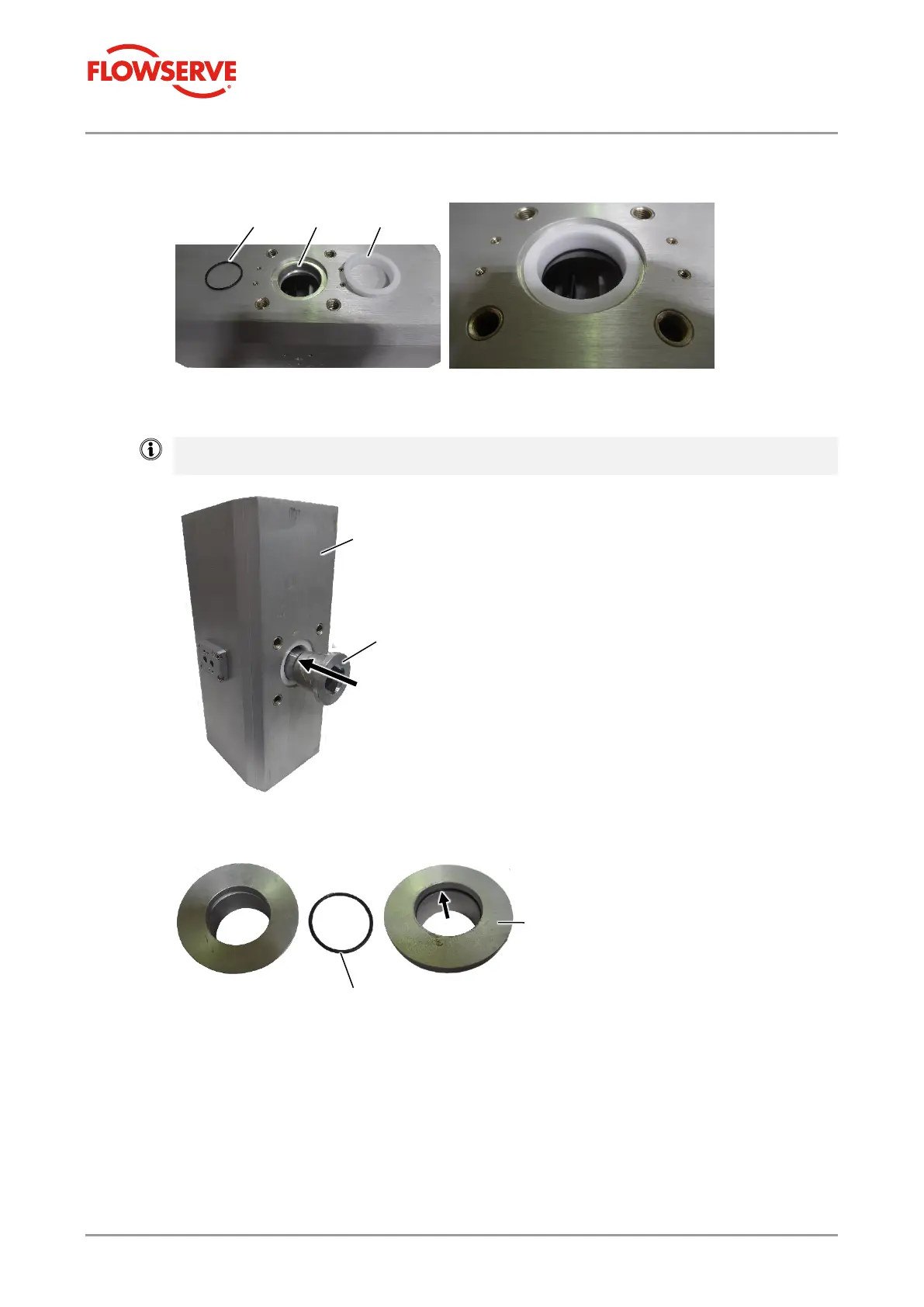

22. Fit a new greased Q-ring [14] on the top body flange side and a new bearing
bush [15] into the bearing opening [13].
23. Press the greased drive shaft [4] carefully into the body [10] from the bottom.
Make sure that the groove in the drive shaft [4] has the original position (transverse or
parallel to the longitudinal axis).
24. Place a new O-ring [12] in the shim bushing [8].
[14]
[13]
[15]
[10]
[4]
[12]
[8]
