Flowserve ROTADISK RDF User Manual

ROTADISK Pneumatic Actuator RD & RDF
Operating Manual – BA3002 EN
8 Repair
Page 59 of 79

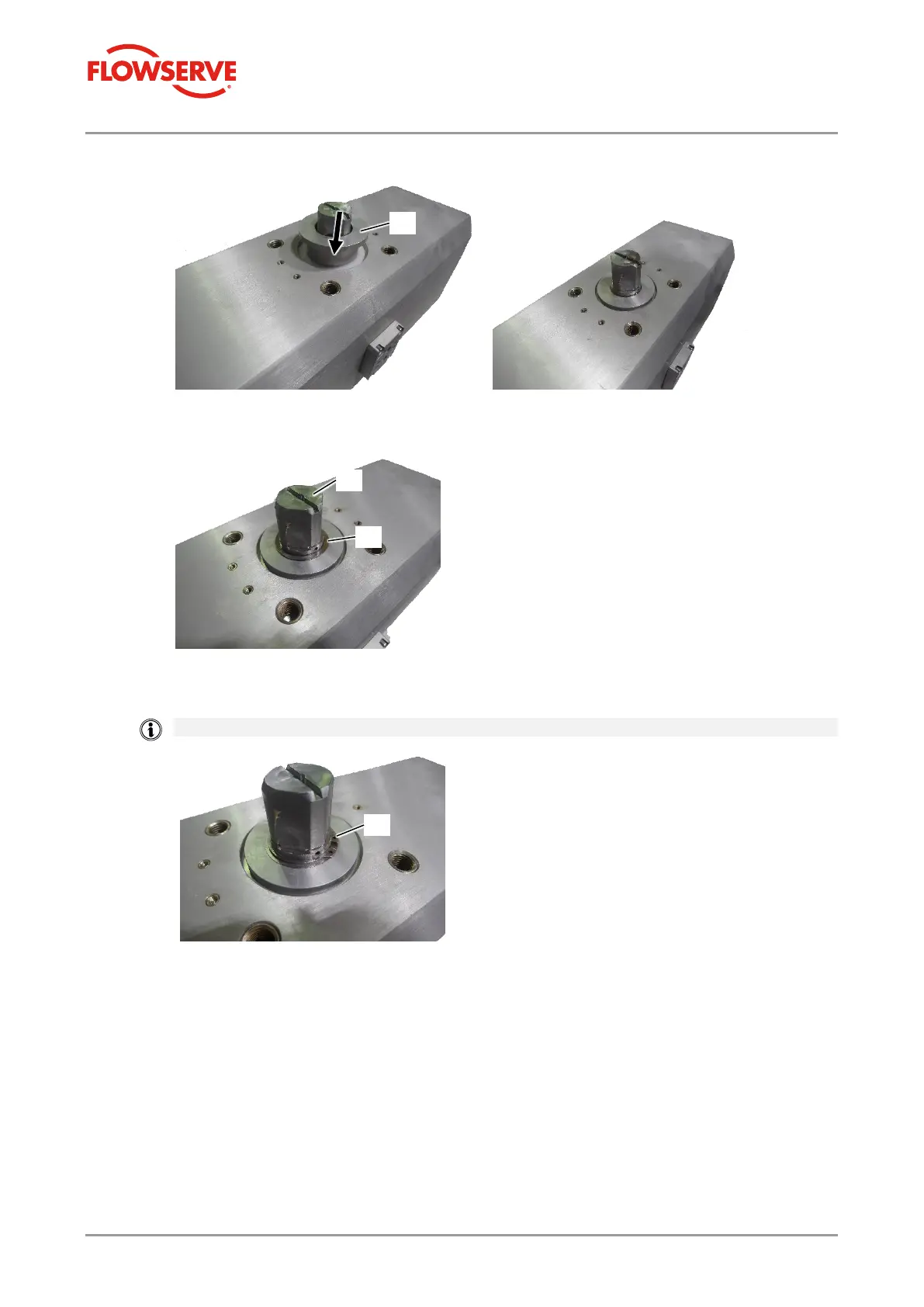

25. Insert the shim bushing [8] into the bearing opening.
26. Place the washer [7] over the drive shaft [4].
27. Fit the shaft locking ring [6].
Make sure that the sharp side is facing upwards.
[7]
[4]
[6]
[8]
