ROTADISK Pneumatic Actuator RD & RDF
Operating Manual – BA3002 EN
8 Repair
Page 60 of 79

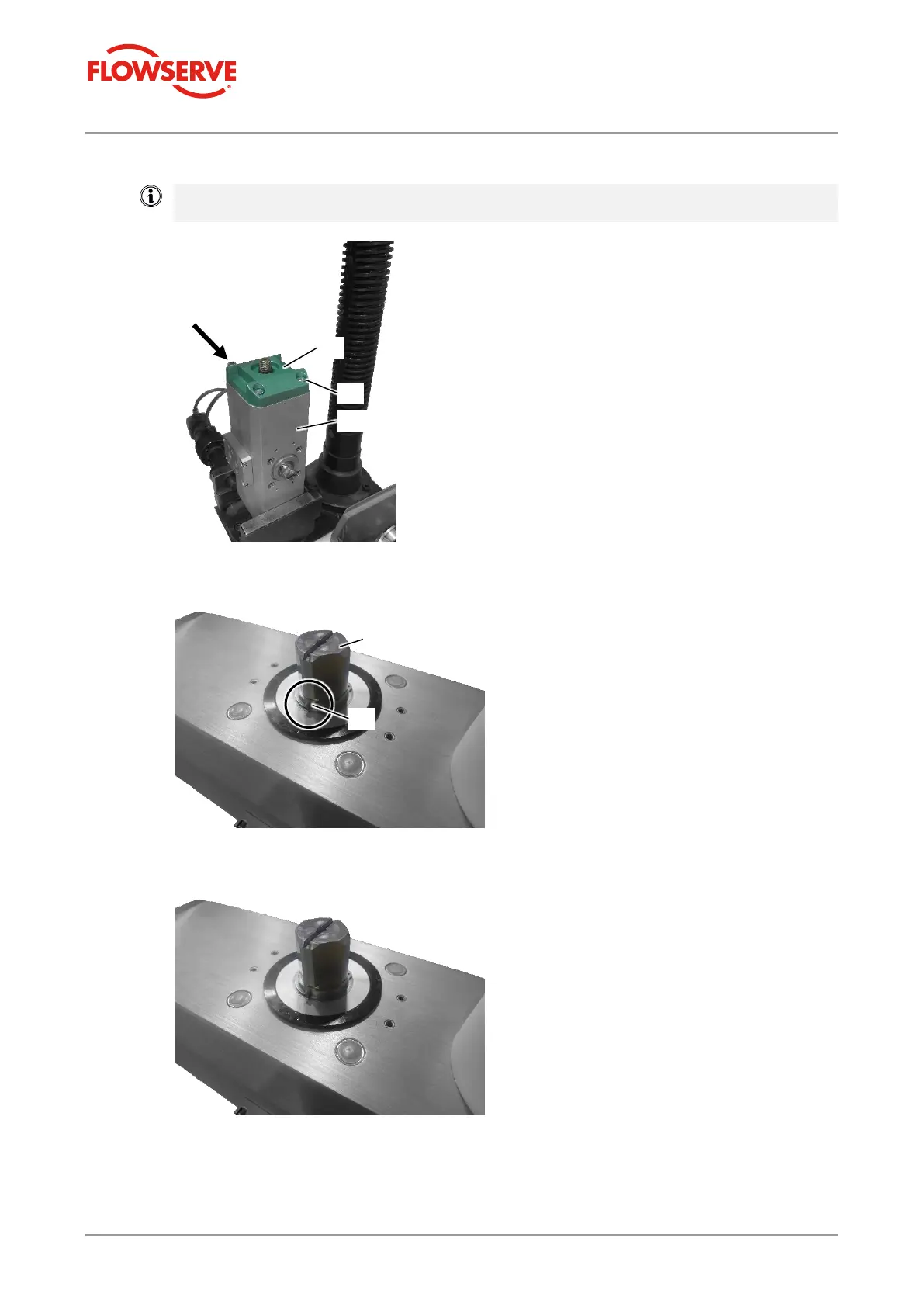

28. Mount both lids [2] on the body [10].
Use an assembly device with press and the lid screws [1] for mounting.
Also check whether the marks ( see step 1) on the lid [2] and body [10] match.
29. Screw the locking pin (threaded pin) [5] into the drive shaft [4].
30. Place the black support ring [17] on the shim bushing [8].
[2]
[1]
[5]
[4]
[10]
