Fluance RT80 - Components and Connections

5

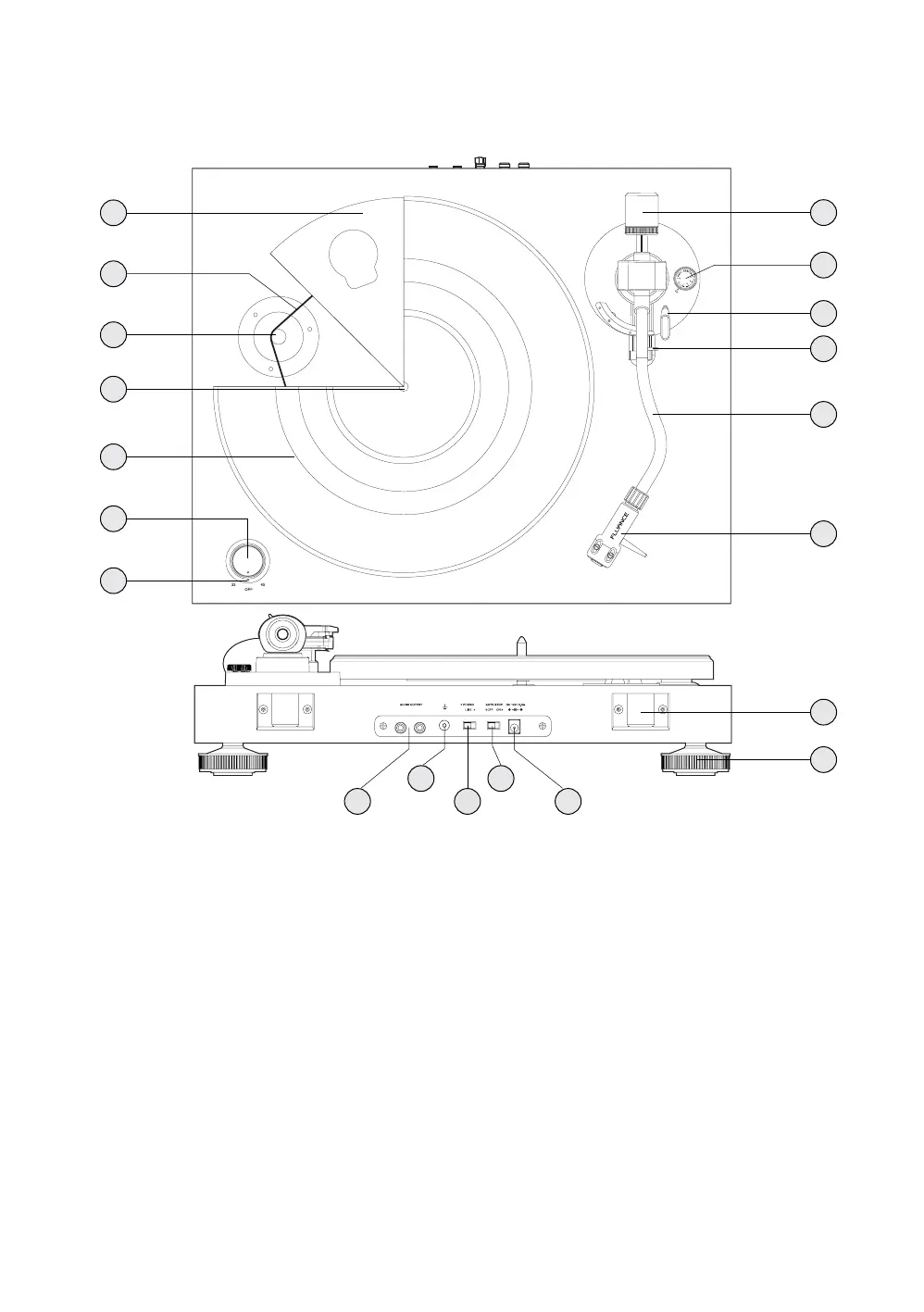

Components and Connections
1. Platter
2. Rubber Belt
3. Motor Pulley
4. Spindle
5. Turntable Mat
6. Speed Selection
7. Power LED
8. Counterweight
9. Anti-Skating Control
10. Cueing Lever
11. Tonearm Lock
12. Tonearm
13. Headshell & Stylus
14. RCA Audio Outputs
15. Ground Terminal
16. Preamp Switch
17. Auto Stop Switch
18. Power Input
19. Hinge
20. Isolation Feet
1
4
2
8
9
10
11
12
13
19
20
5
6
7
14 16 18
15 17
3
