CONE
LOCK NUT
WASHER
WATER
SHUTOFF
FLAT
WASHER
COUPLING
NUT
LOCK NUT
COUPLING
NUT
LOCK NUT
COUPLING
NUT
COUPLING
NUT
WATER
SHUTOFF
SPIRAL
CONE
WASHER
WATER
SHUTOFF
WATER
SHUTOFF
BALL TUBING
METAL/COPPER
FLARED TUBING
METAL FLANGED
TUBING
METAL SPIRAL
TUBING
VINYL/BRAIDED
CONNECTOR
PLASTIC OR METAL
COMPRESSION

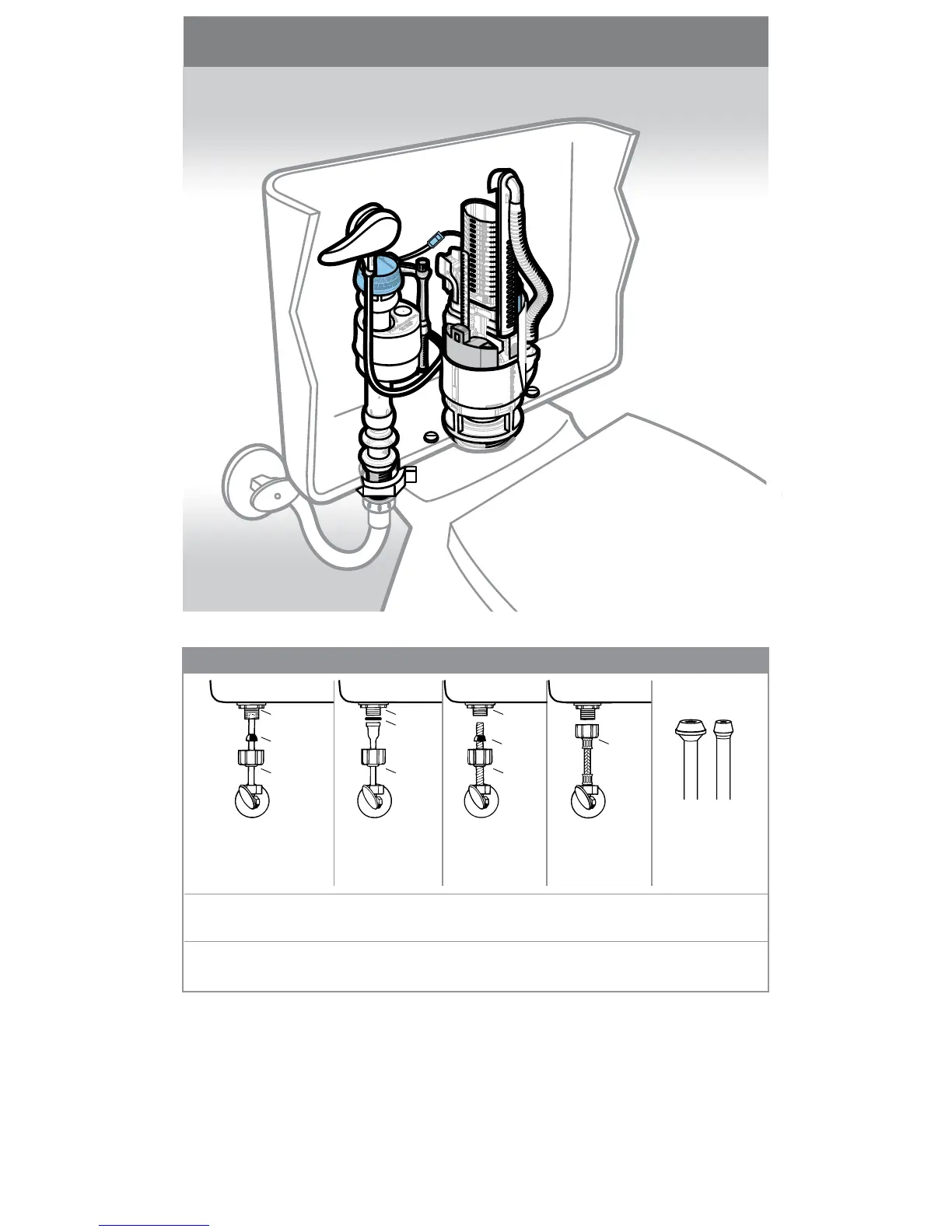

Use chart to determine the appropriate assembly parts required to properly reconnect the water supply.
DO NOT use plumber’s putty to seal these fittings (Teflon tape optional). Do not use thread lubricants. Use of thread sealants or
lubricants can damage plastic nut and result in flooding and property damage.
Use Fluidmaster coupling nut
and cone washer to replace
existing parts. Water supply
tube must extend 1/2 inch
inside threaded shank of valve.
Use existing coupling
nut and existing flat
washer.
Use existing spiral
cone washer.
Captive cone washer
already included.
No additional
washers required.
Do not use Fluidmaster's
coupling nut and the
cone washer on plastic or
metal tubing as shown.
CAUTION: DO NOT use CONE WASHER with PLASTIC SUPPLY LINE or METAL SPIRAL TUBING.
CAUTION: Locknut and coupling nut should be hand tightened only! Over tightening locknut or coupling nut could result in
breakage and flooding.
Go to our website at www.uidmaster.com for more information.
13
(Optional for Step 3.1) Identify union type
Completed installation
