Page 9

FW-F103-P-XN-M_v2002_03_EN.docx

Display historical day totals

Besides directly reviewing the Current Day Total and Previous Day Total, a list of the last 15

Previous Day Totals can be reviewed. To enter the list, press the CLEAR-key for 3 seconds. Use the

SELECT- and CLEAR-key to scroll up and down through the list of Previous Day Totals. The

number that is displayed on the left side of the bottom line indicates the age of the shown Previous

Day Total, in days. Note that the entry with age ‘00’ represents the (running) Current Day Total.

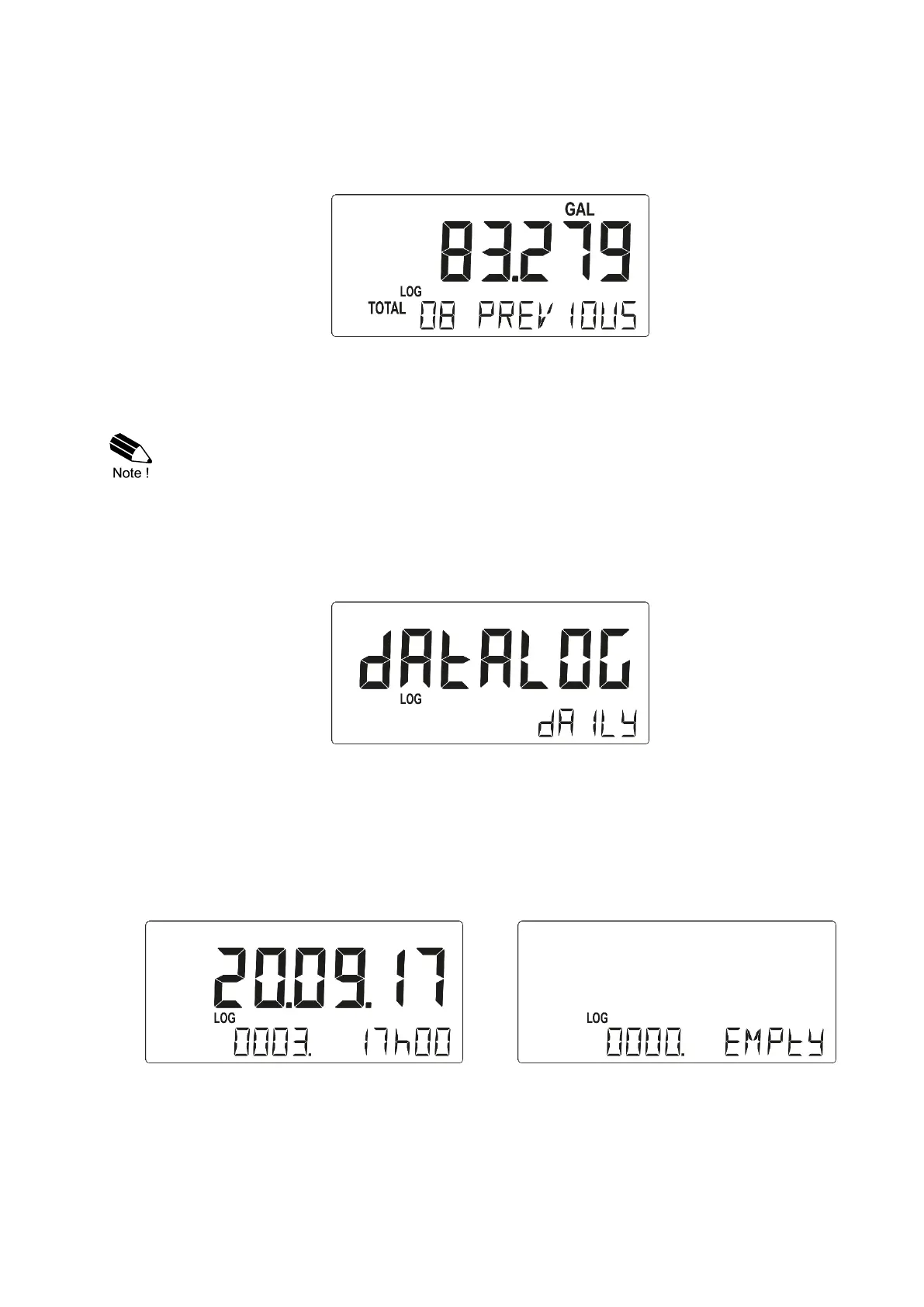

Fig. 4: Example of historical day total from 8 days ago

To return to the main display information again, press the PROG-key during 3 seconds or wait for 3

minutes.

When ordered with Type ZL - Datalogging, the historical day totals are not available.

Instead, powerful data and event logging functions and logbooks are available.

Display data and event log records (with Type ZL)

The data log function stores data records based on interval, daily contract hour and events in 3

separate logbooks. To review the records on the display, press the CLEAR-key for 3 seconds to

enter the DATALOG menu. Select the required logbook INTERVAL, DAILY or EVENT by using the

SELECT- and CLEAR-key and press the PROG-key to enter the selected logbook.

Fig. 5: Example of logbook selection screen

After entering, the record selection list of the logbook is shown (when EMPTY is displayed, the

selected logbook does not contain any records) and the SELECT- and CLEAR-key can be used to

scroll up and down through the list of records..

Every record has a sequence number (record number), shown below LOG on the bottom left side,

accompanied by the date and time the record was created. When the down-arrow is shown on the

left side of the display, the start of the list is reached (newest record); when the up-arrow is shown,

the end of the list is reached (oldest record).

Fig. 6: Example of record list with record 0003 selected (l) and empty record list (r).

When the correct record is selected in the list, press the PROG-key again to review the details of the

record. Use the SELECT- and CLEAR-key to scroll through the details, indicated by a letter-suffix

behind the record number (e.g. 15.A → 15.B → 15.C → 15.A)).
