4.4 MECHANICAL INSTALLATION

When installed according to Class I, Division 2, the F-Series enclosure is not suitable

for panel mount installation.

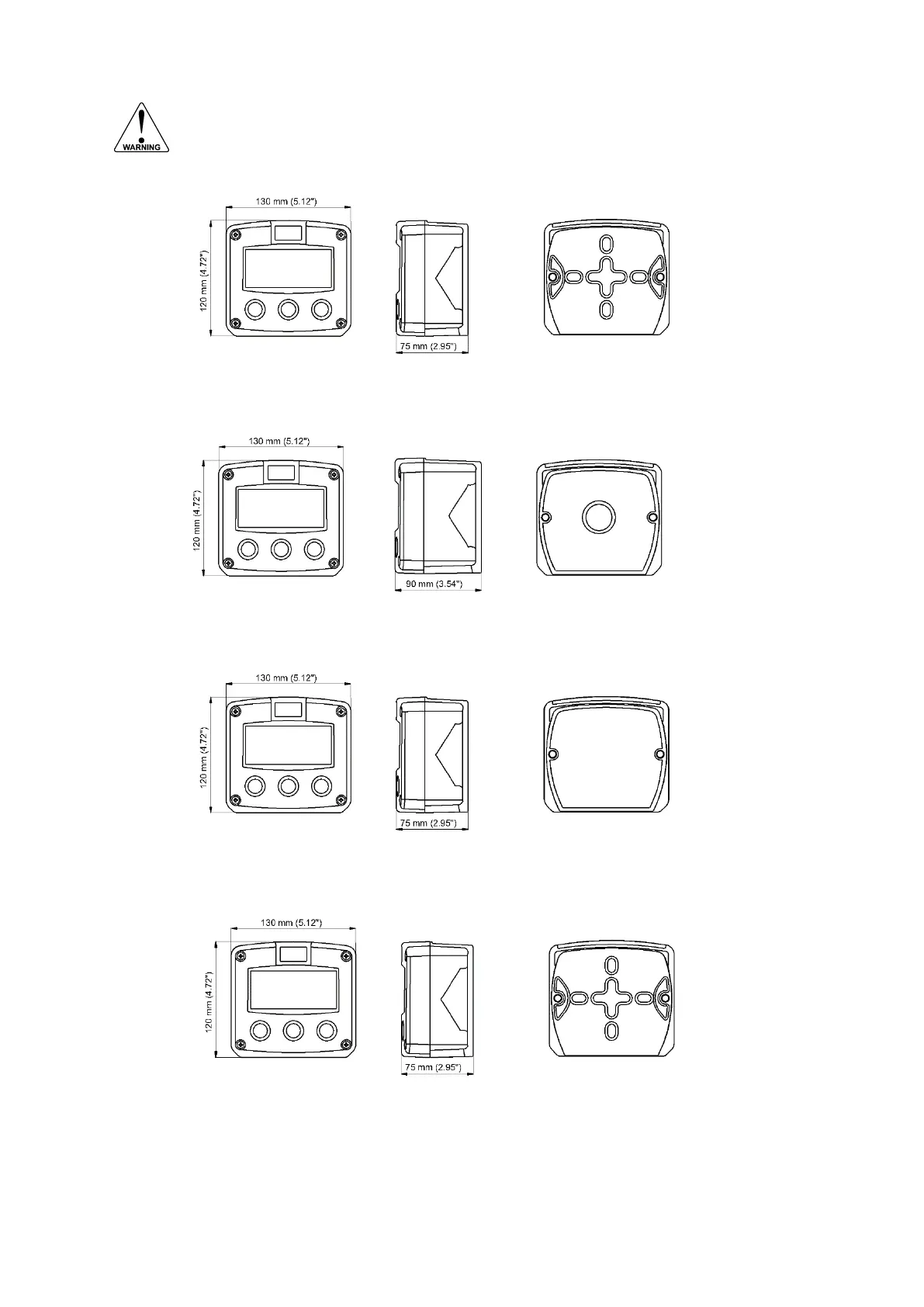

4.4.1 DIMENSIONS – ALUMINUM ENCLOSURE – TYPE HA, HL…HZ, HAA … HAZ

Fig. 15: Dimensions – Aluminum enclosures

4.4.2 DIMENSIONS – ALUMINUM W. EXTENDED BACK ENCLOSURE – TYPE HBA … HBZ

Fig. 16: Dimensions – Aluminum with extended back enclosures

4.4.3 DIMENSIONS – STAINLESS STEEL ENCLOSURE – TYPE HSA … HSZ

Fig. 17: Dimensions – Stainless Steel enclosures

4.4.4 DIMENSIONS – PLASTIC ENCLOSURE – TYPE HGA … HGZ

Fig. 18: Dimensions – Plastic enclosures
