Verification Box Assembly
This Verification Box provides more accurate voltages than a direct connection to
the 5520A. The 5520A uses a divider with a 50 Ω output impedance when
sourcing <330 mV. Due to variations in the 1730 input impedance, the actual
applied voltage is less than the programmed voltage. Using an external divider
where the parallel resistance is ~30 Ω allows calculation of the applied voltage
with confidence that the 1730 input loading will not significantly impact the
applied voltage.
Fluke recommends using a verification box that has a divider with 30 Ω across
the 1730 input and 10 kΩ in series with high side of the input. See Table 5 for
instructions on how to make the verification box.

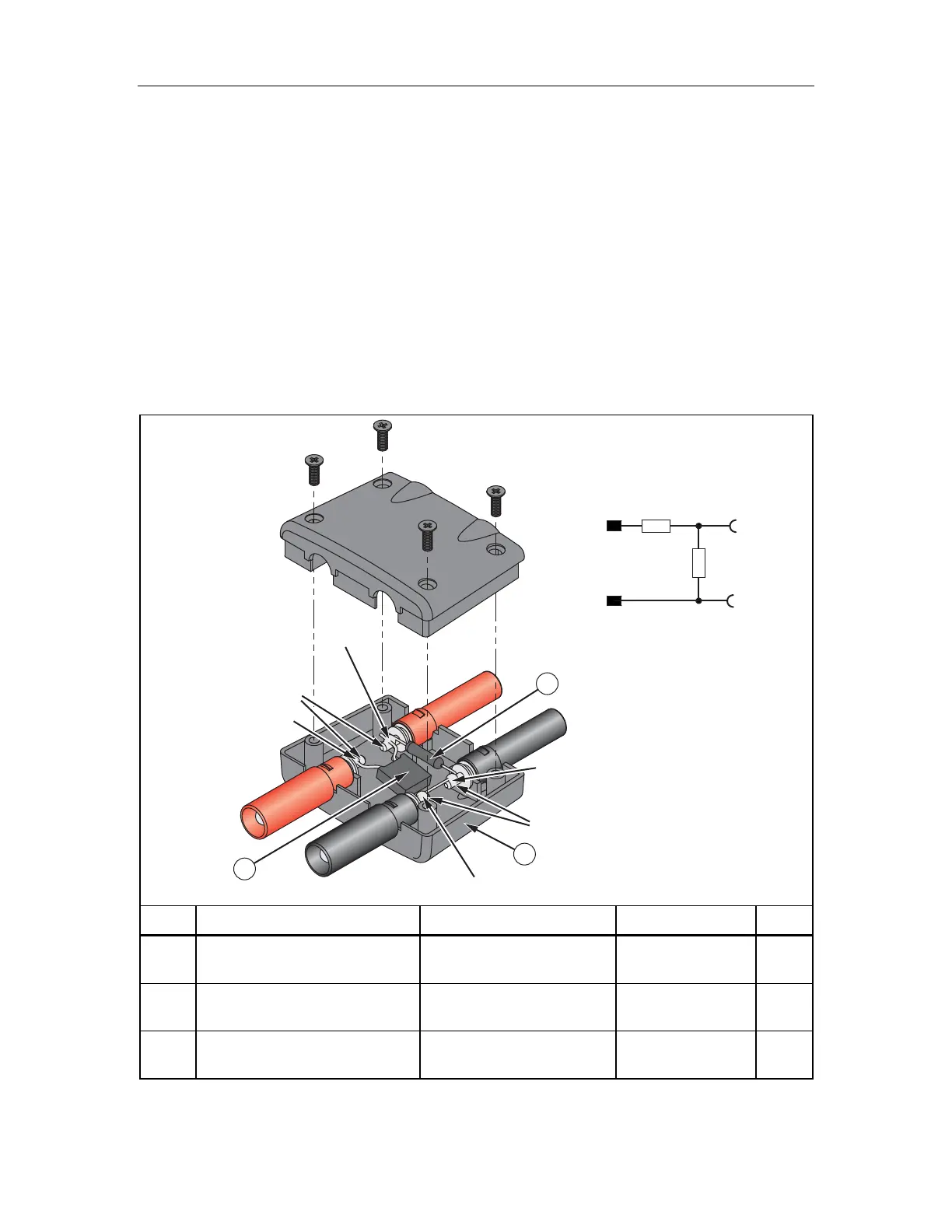

Table 5. 1730 Verification Box
2
3
1
Contacts Pretinned
Contacts
Pretinned
Red Plug
Red
Socket
Black Socket
Black Plug
Soldered
Soldered
Soldered
Soldered
10 k
30 Ω
Red
Black Black
Red
hcf105.eps
Item Description Part Number/Info Fluke Part Number QTY
 Multi-Contact Box: MA 524
Type: XKH-4/19/A
Order-No.: 66.9045-33
NA 1

Resistor, Metal Foil 10 kΩ,
±0.1 %, 0.6 W, ±4.5 PPM
Red Plug/Red Socket 2114858 1
 Resistor, 30 Ω, 1W, 1% 20 PPM
Red Socket/Black Socket +
Bridge Black Plug/Socket
1757740 1
