Options and Accessories
Accessories 6
6-17
Dimensions: See 2540445.
Flexi Current Sensor 100 A/500 A
This current probe has been designed for non intrusive, accurate AC current
measurements. Using the latest technologies (internal memory for calibration data)
provides current measurements between 1 A and 500 A. The measurement range can be
selected in the PQ Analyze software: IAC100 or IAC500.
XW Warning
To protect against electrical shock:
• Utilize the clamps only on insulated conductors, max.
600 V rms or dc to ground.
• Use personal protective equipment measures as required
by local government agencies, when attaching clamps to
live circuits.

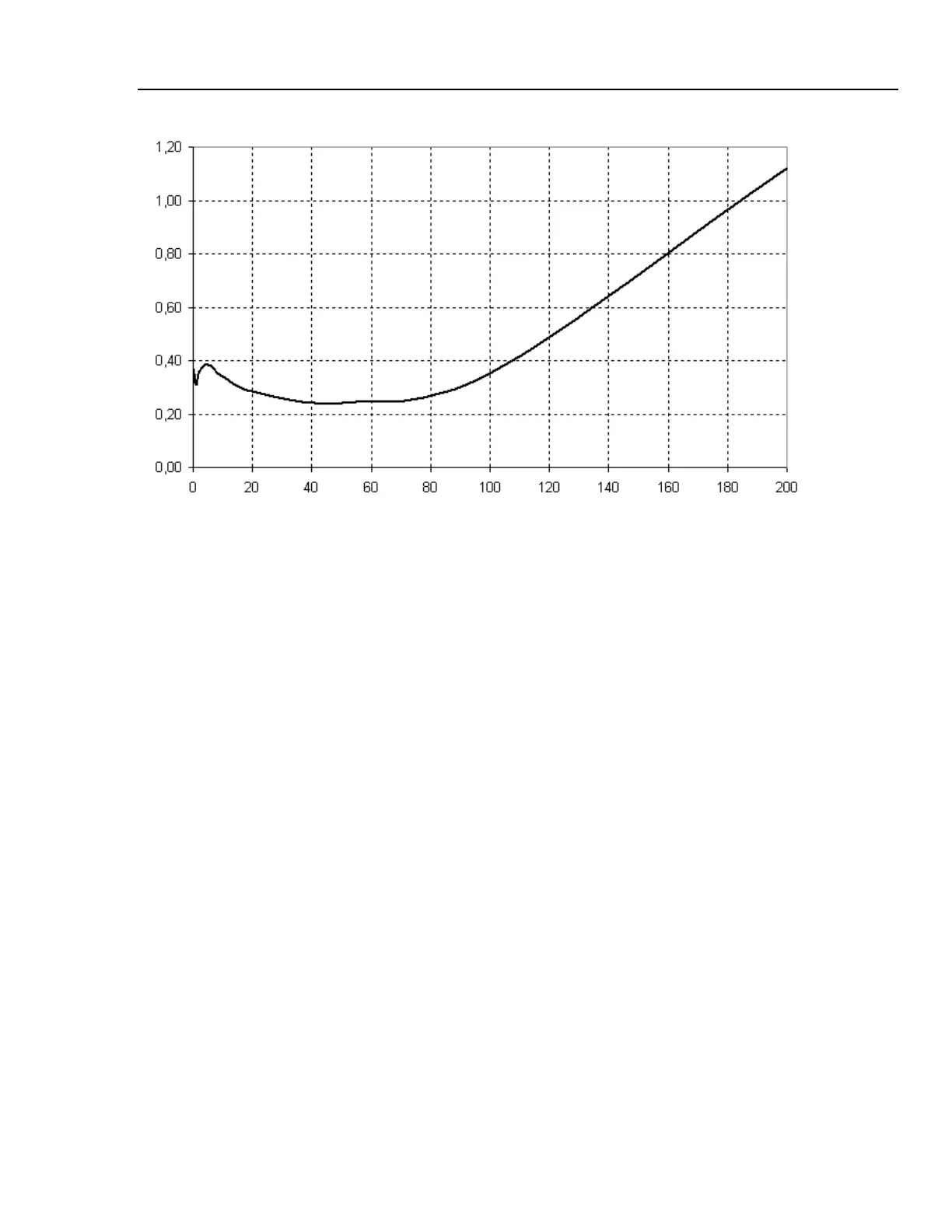

Electrical Characteristics
Nominal current In: 100 A, 500 A AC rms
Measuring ranges: 1 A – 100 A or 5 A – 500 A AC
Peak current: 240 A, 1350 A
Overload capacity: Up to 2000 A rms
Intrinsic error: < ±1 % of mv
Linearity (10 % - 100 % of In): ±0.2 % of In.
Conductor position influence: < ±2 % of mv, distance to measuring head
>30 mm
Error due to adjacent conductor: ≤ ±2 A (Iext = 500 A, distance to head
>200 mm)
