1760
Users Manual
6-10

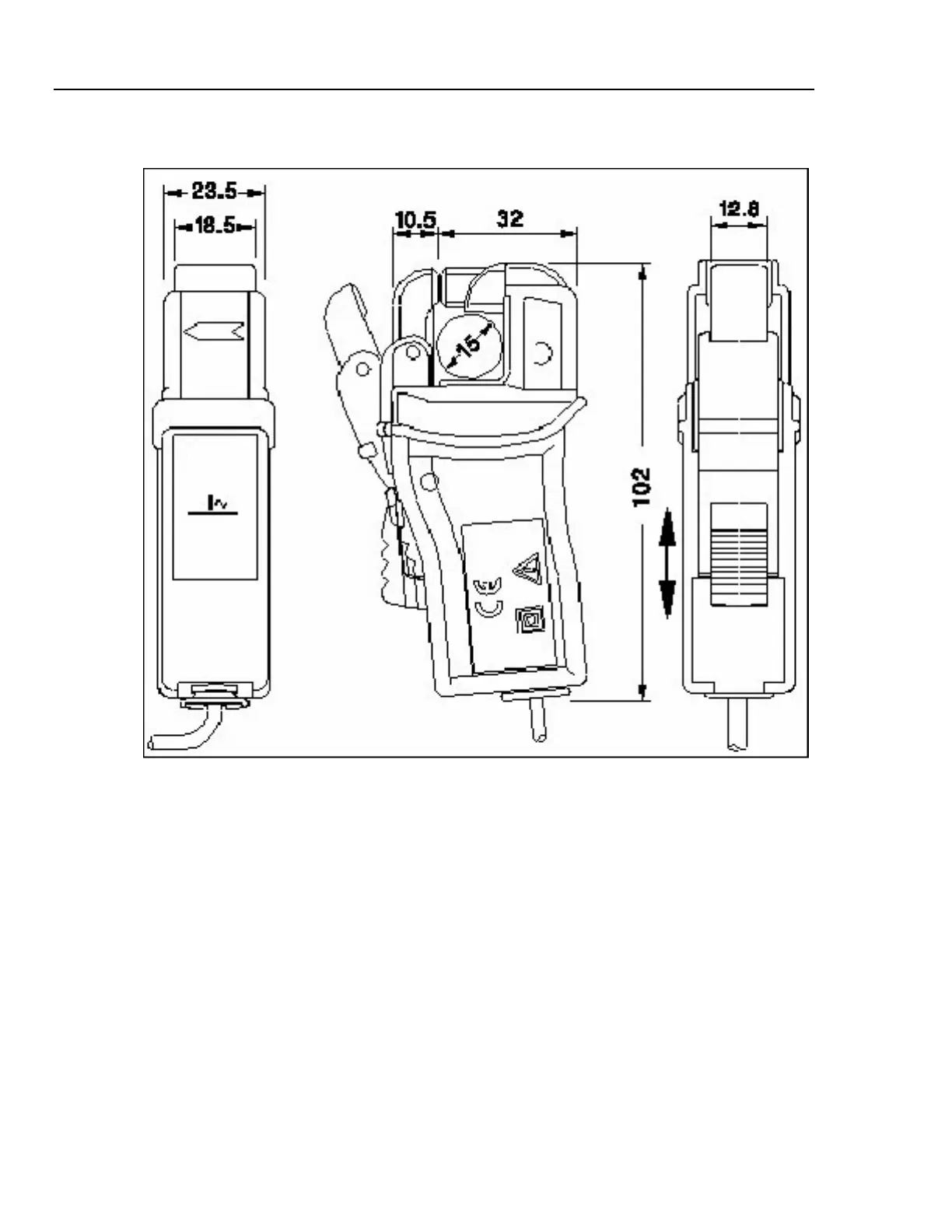

Dimensions (in mm):
small clamp-dimensions.bmp
Current Clamp 5 A/50 A AC
This current probe has been designed for non intrusive, accurate measurements of small
AC currents. Using the latest technologies (internal memory for calibration data) provides
reliable current ranges from 0.05 A up to 50 A. The measurement range can be selected
in the PQ Analyze software: IAC5 or IAC50.
XW Warning
To protect against electrical shock:
• Utilize the clamps only on insulated conductors, max.
600 V rms or dc to ground.
• Use personal protective equipment measures as required
by local government agencies, when attaching clamps to
live circuits.
Electrical Characteristics
Nominal current In: 5 A/50 A AC rms
Measuring ranges: 0.05 A – 5 A or 0.5 A – 50 A
