Fluke 177 User Manual

True-rms Multimeters
Display
7
Table 4. Rotary Switch Positions
Switch
Position
Measurement Function


DC mV 0.1 mV to 600 mV.
Temperature −40 °C to +400 °C.
−40 °F to +752 °F.
R

Beeper turns on at <25 Ω and turns off at >250 Ω.
Diode test. Displays  above 2.4 V.

A
Hz
AC A from 0.300 A to 10 A.
DC A from 0.001 A to 10 A.
>10.00, display flashes.
>20 A,  is displayed.
Frequency of ac A 2 Hz to 30 kHz.
e

Ohms from 0.1 Ω to 50 MΩ.
Farads from 1 nF to 9999 μF.

mA
Hz
AC mA from 3.00 mA to 400 mA.
DC mA from 0.01 mA to 400 mA.
Frequency of ac mA 2 Hz to 30 kHz.
Note: AC voltage and current AC-coupled, true-rms, up to 1 kHz.
Display

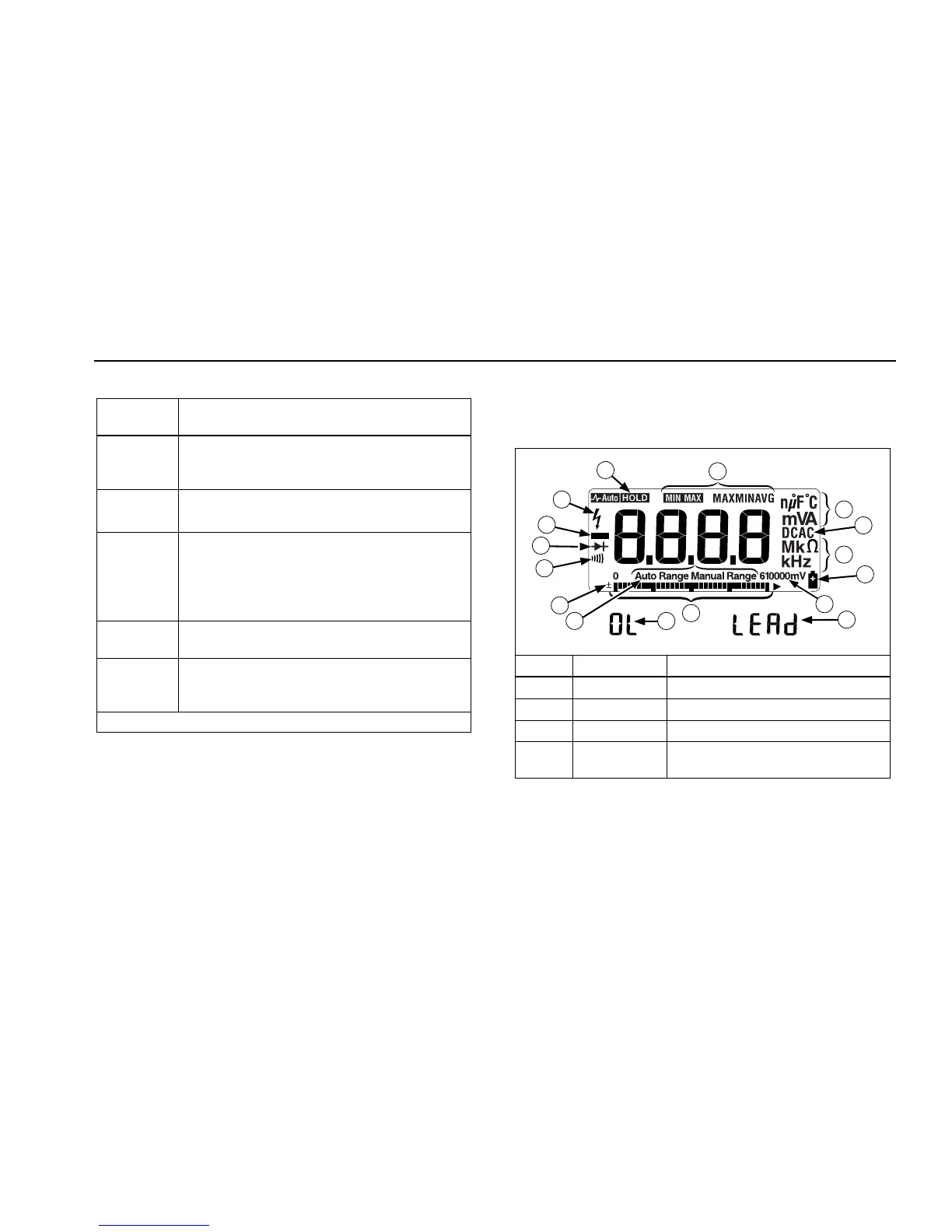

Table 5 shows the items on the Product display.
Table 5. Display
8
7
7
5
6
4
3
2
1
13
14
15
9
11
12
10
aik02f.eps
Item Symbol Description
  Continuity test.
  Diode test.
  Negative readings.
 Y
Unsafe voltage. Voltage ≥30 V, or
voltage overload ().

Fluke 177 Specifications

General

Frequency range	0.00001 - 100 kHz
DC current range	0.00001 - 10 A
DC voltage range	0.0001 - 1000 V
Resistance range	0.1 - 50000000 Ω
Resistance resolution	0.1 Ω
Resolution (frequency)	0.01 Hz
Resolution (AC current)	10 µA
Resolution (DC voltage)	0.1 mV
Basic accuracy (frequency)	±(0.1% + 1)
Basic accuracy (DC voltage)	±(0.09% + 2)
Basic accuracy (resistance)	±(0.9% + 1)
Basic accuracy (capacitance)	±(1.2% + 2)
Battery type	9V
Battery voltage	9 V
Number of batteries supported	1
Manual	Yes

Weight and Dimensions

Depth	43 mm
Width	90 mm
Height	185 mm
Weight	420 g
