Fluke 177 User Manual

True-rms Multimeters
Basic Measurements
15
Measure Frequency
XW Warning
To prevent possible electrical shock, fire, or personal
injury, disregard the bar graph for frequencies >1 kHz. If
the frequency of the measured signal is >1 kHz, the bar
graph is unspecified.
The Product measures the frequency of a signal. The trigger level
is 0 V, 0 A ac for all ranges.

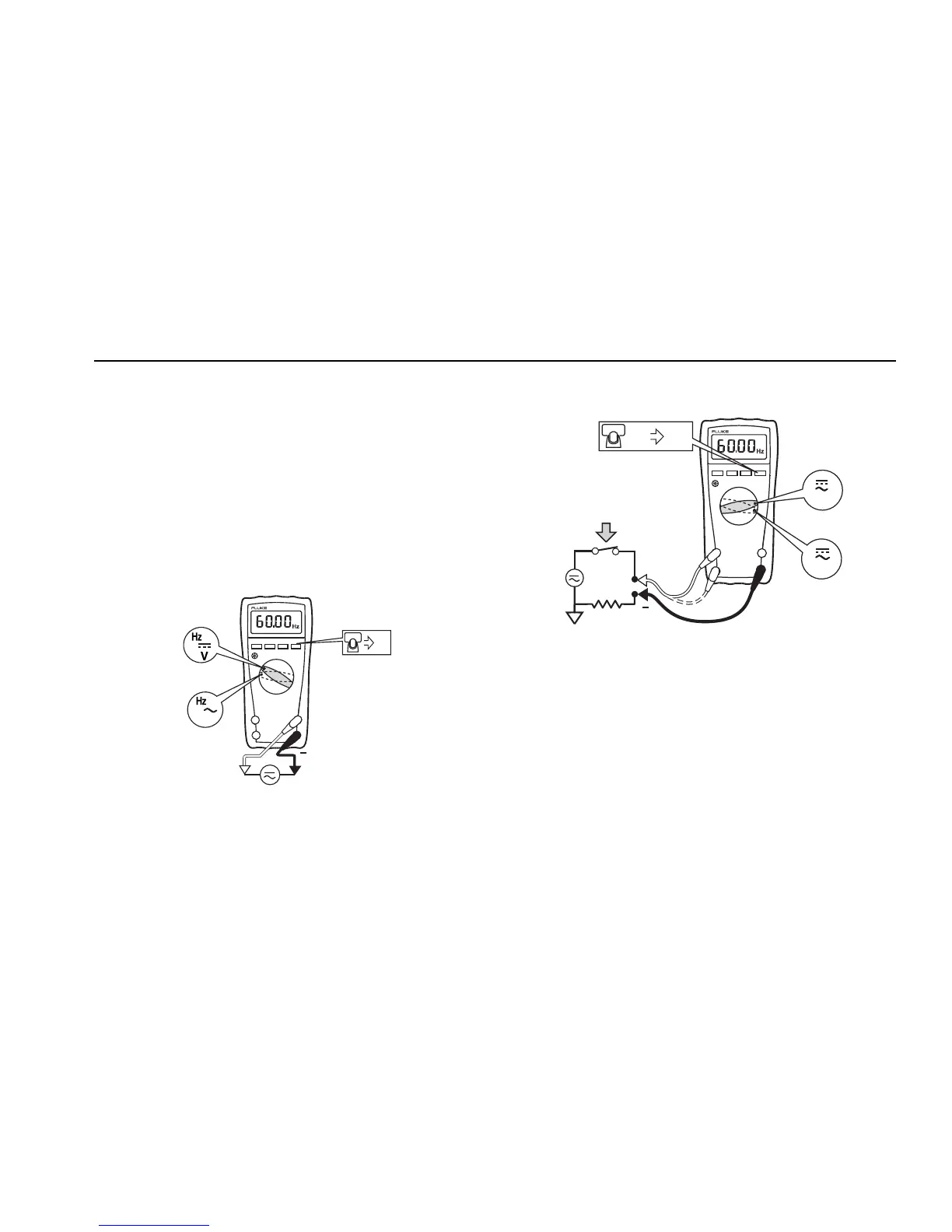

AC/DC Voltage Frequency
+
RANGEHOLD
MIN MAX
Hz
V
aik15.eps
AC Current Frequency
RANGEHOLD
MIN MAX
Hzx 2
+
mA
A
aik16.eps
• In frequency, the bar graph shows the ac/dc voltage or ac
current accurately up to 1 kHz.
• Select progressively lower ranges using manual ranging for a
stable reading.
• To exit frequency, press  or turn the rotary switch.

Fluke 177 Specifications

General

Frequency range	0.00001 - 100 kHz
DC current range	0.00001 - 10 A
DC voltage range	0.0001 - 1000 V
Resistance range	0.1 - 50000000 Ω
Resistance resolution	0.1 Ω
Resolution (frequency)	0.01 Hz
Resolution (AC current)	10 µA
Resolution (DC voltage)	0.1 mV
Basic accuracy (frequency)	±(0.1% + 1)
Basic accuracy (DC voltage)	±(0.09% + 2)
Basic accuracy (resistance)	±(0.9% + 1)
Basic accuracy (capacitance)	±(1.2% + 2)
Battery type	9V
Battery voltage	9 V
Number of batteries supported	1
Manual	Yes

Weight and Dimensions

Depth	43 mm
Width	90 mm
Height	185 mm
Weight	420 g
