Fluke 27-II - Replacement Parts

27 II/28 II
Calibration Information
24
Replacement Parts
Table 7 lists the Meter’s replaceable parts identified in Figure 5.
MP20
MP19
MP18
MP15
DS1
MP14
MP10
MP9
H4 (7)
MP7
MP8 (2)
MP6
MP2
MP3 (2)
BT1 (3)
MP1
MP4
H1 (6)
MP5
H4 (7)
H5 (4)
F1
F2
MP13
MP11
MP12
MP16
MP17
H2 (6)
H3 (6)
gaq106.eps

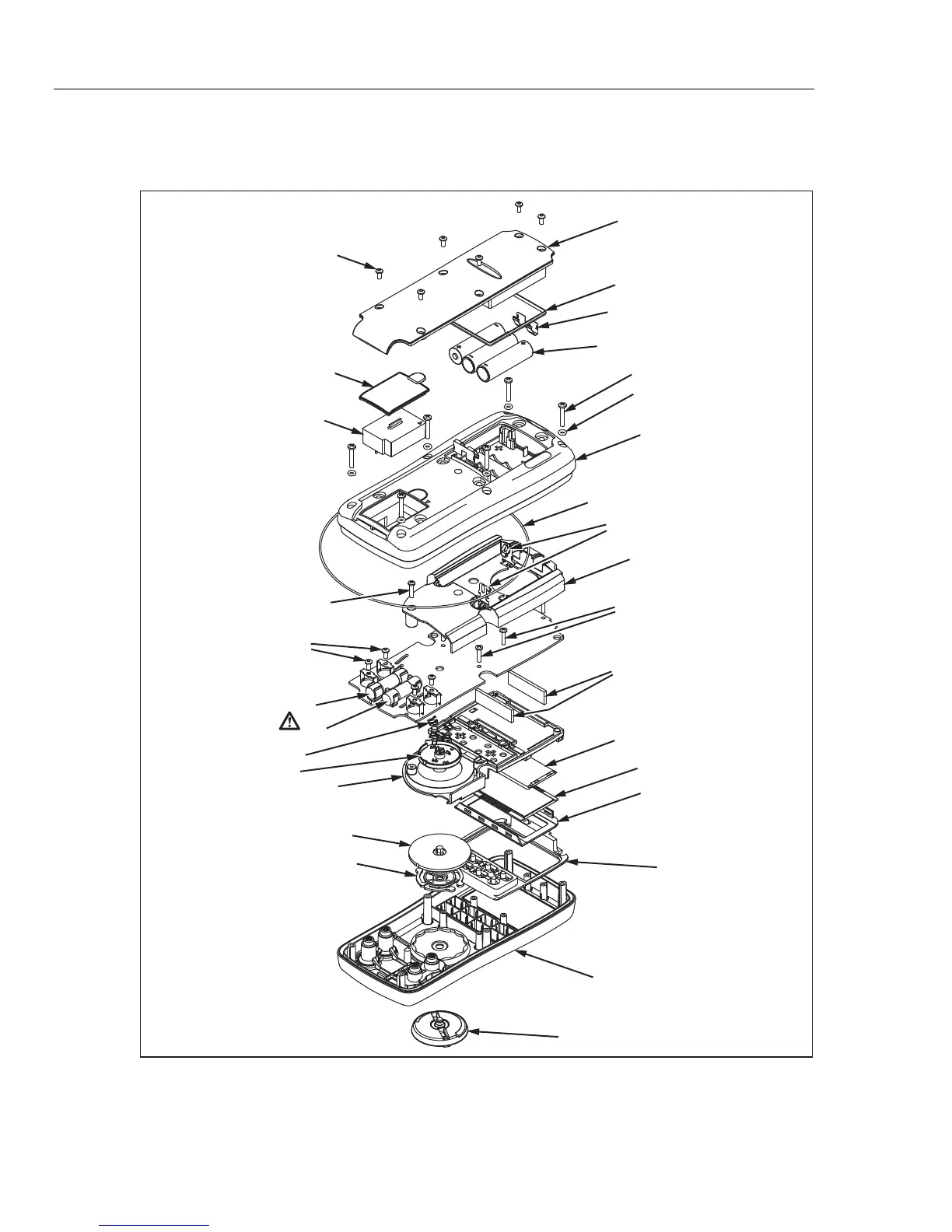

Figure 5. Exploded View of Meter
