Clamp Meter
Using the Meter
13
Measuring Resistance (355 only)
XW Warning
To avoid possible electric shock or personal
injury, when measuring resistance in a
circuit, make sure the power to the circuit is
turned off and all capacitors are discharged.
To measure resistance:
1. Turn the rotary function switch to e.
2. Remove power from the circuit being tested.
3. Connect the black test lead to the COM terminal and
the red test lead to the V terminal.
4. Measure the resistance by touching the probes to the
desired test points of the circuit.
5. View the reading on the display. See Figure 8.
XW Warning
To avoid electrical shock or personal injury,
be aware that dangerous voltages may be
present at the input terminals and may not be
displayed
A
A
A
AC+DC
V
A
A
OFF
A
V
AC+DC
V
AC+DC
COM
V
600 V CAT
1000 V CAT
HOLD
RANGE
ZERO
INRUSH
MIN MAX
Hz
FILTER
Auto
Range
355
AC/DC CLAMP METER
2000 A
600 V CAT
TRUE RMS
fbq08.eps

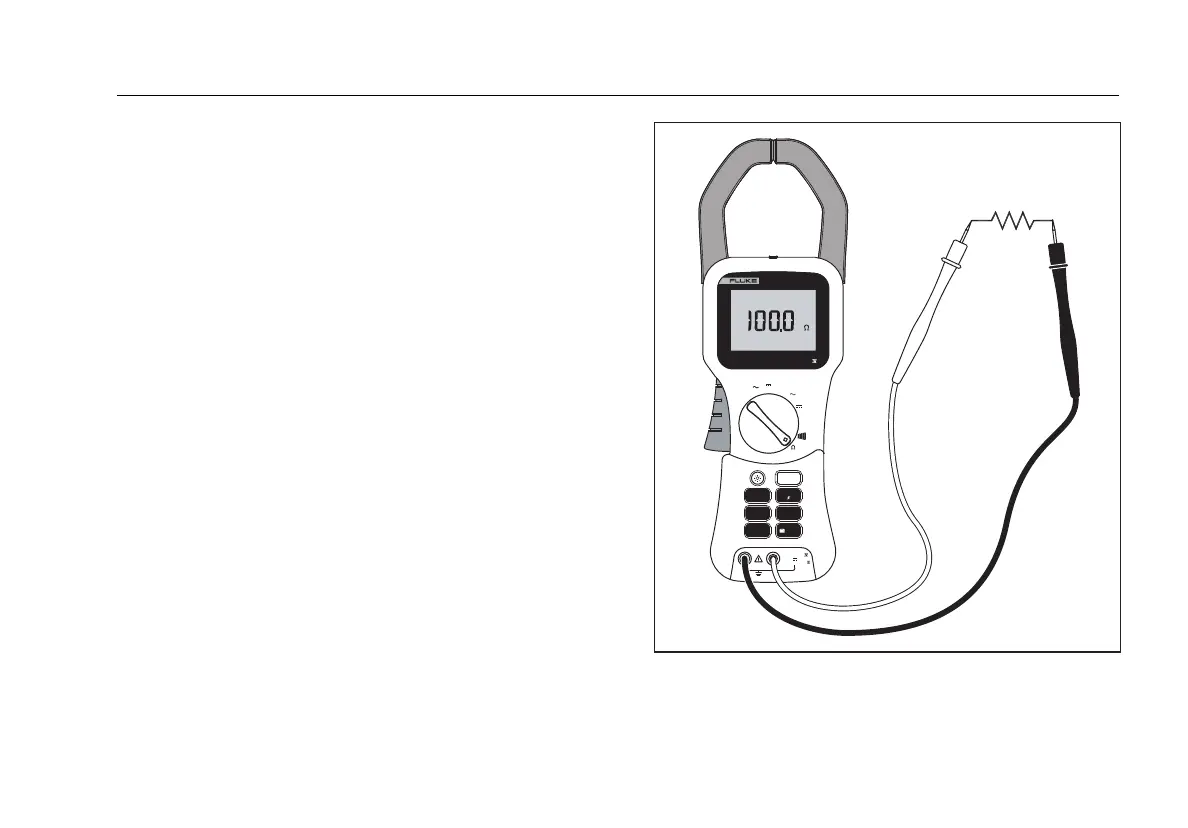

Figure 8. Measuring Resistance

Other manuals for Fluke 353

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fluke 353 and is the answer not in the manual?

Fluke 353 Specifications

General IconGeneral
DC voltage1000 V
Low pass filterYes
DC current (max)2000 A
Measuring categoryCAT III 1000V, CAT IV 600V
AC current maximum resolution (probe)1 A
Battery typeAA
Number of batteries supported6
CertificationIEC 61010-2-032, CE, RoHS, EMI, RFI, EMC, IP42
Product colorBlack, Red, Yellow
Operating altitude0 - 2000 m
Non-operating altitude0 - 10000 m
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 95 %
Weight and Dimensions IconWeight and Dimensions
Depth52 mm
Width98 mm
Height300 mm
Weight814 g
