Fluke 353 User Manual

353/355
Users Manual
10
Measuring AC and DC Voltage (355 only)
To measure ac or dc voltage:
1. Turn the rotary function switch to W, V, or X.
2. Connect the black test lead to the COM terminal and
the red test lead to the V terminal. Before connecting
the probes to the measurement points, add any clips
to the probes that are necessary.
3. Measure the voltage by touching the probes to the
desired test points of the circuit.
4. View the reading on the display.
5. When measuring ac voltage, press Gto view the
frequency reading on the frequency display. See
Figures 5 and 6.
A
A
OFF
A
AC+DC
V
A
A
OFF
A
V
AC+DC
V
AC+DC
COM
V
600 V CAT
1000 V CAT
HOLD
RANGE
ZERO
INRUSH
MIN MAX
Hz
FILTER
Auto
Range
353
AC/DC CLAMP METER
2000 A
600 V CAT
TRUE RMS
fbq05.eps

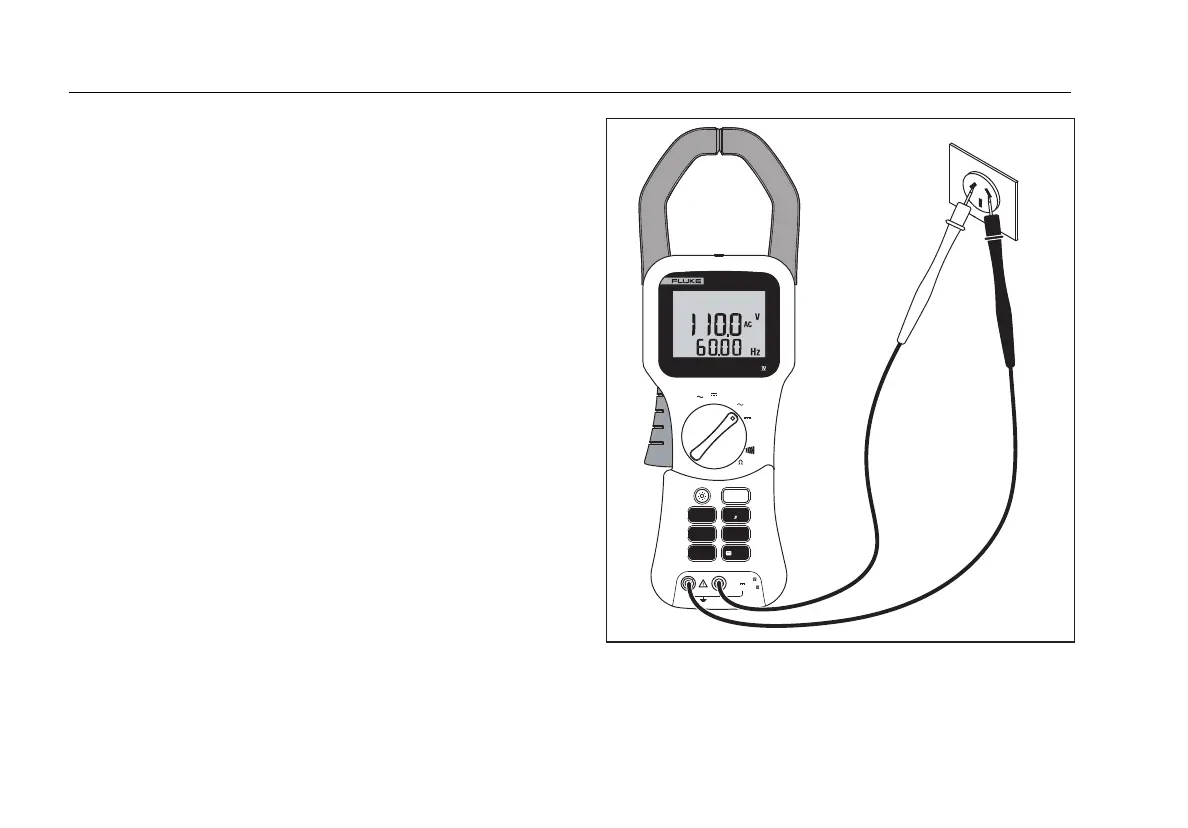

Figure 5. AC Voltage Measurement

Fluke 353 Specifications

General

DC voltage	1000 V
Low pass filter	Yes
DC current (max)	2000 A
Measuring category	CAT III 1000V, CAT IV 600V
AC current maximum resolution (probe)	1 A
Battery type	AA
Number of batteries supported	6
Certification	IEC 61010-2-032, CE, RoHS, EMI, RFI, EMC, IP42
Product color	Black, Red, Yellow
Operating altitude	0 - 2000 m
Non-operating altitude	0 - 10000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	52 mm
Width	98 mm
Height	300 mm
Weight	814 g
