Using the Meter
XW Warning
To avoid electric shock or personal injury:
• When measuring current, center the
conductor in the clamp.
• When making current measurements,
disconnect the test leads from the Meter.
• Keep fingers behind Tactile Barrier. See
Meter Features.
Measuring AC or DC Current
To measure ac or dc current:
1. Turn the rotary function switch to the proper current
setting A, C, or D.
2. Open the clamp by pressing the jaw release and
insert the conductor to be measured into the clamp.
3. Close the clamp and center the conductor using the
jaw alignment marks.
4. View the current reading on the main display.
5. When measuring ac or ac + dc current, press Gto
view the frequency reading on the frequency display.
XWWarning
To avoid possible electric shock or personal
injury, if current is moving in opposite
directions, place only ONE conductor into
the clamp at a time. If current is moving in
the same direction, more than one conductor
may be placed into the clamp. See Figure 3.
600 V
A
A
OFF
A
A
C+DC
V
A
A
OFF
A
V
A
C+DC
V
A
C+DC
V C
A
T
1000
V C
A
T
Aut
o
Rang
e
355
A
C/DC CLAMP METER
2000 A
600 V C
A
T
T
R
UE RMS
COM
V
HOLD
RANGE
ZE
R
O
IN
RUSH
MIN MAX
Hz
FI
LTER
A
A
OFF
A
AC+DC
V
A
A
OFF
A
V
AC+DC
V
AC+DC
600 V CAT
1000 V CAT
Auto
Range
355
AC/DC CLAMP METER
2000 A
600 V CAT
TRUE RMS
COM
V
HOLD
RANGE
ZERO
INRUSH
MIN MAX
Hz
FILTER
fbq04.eps

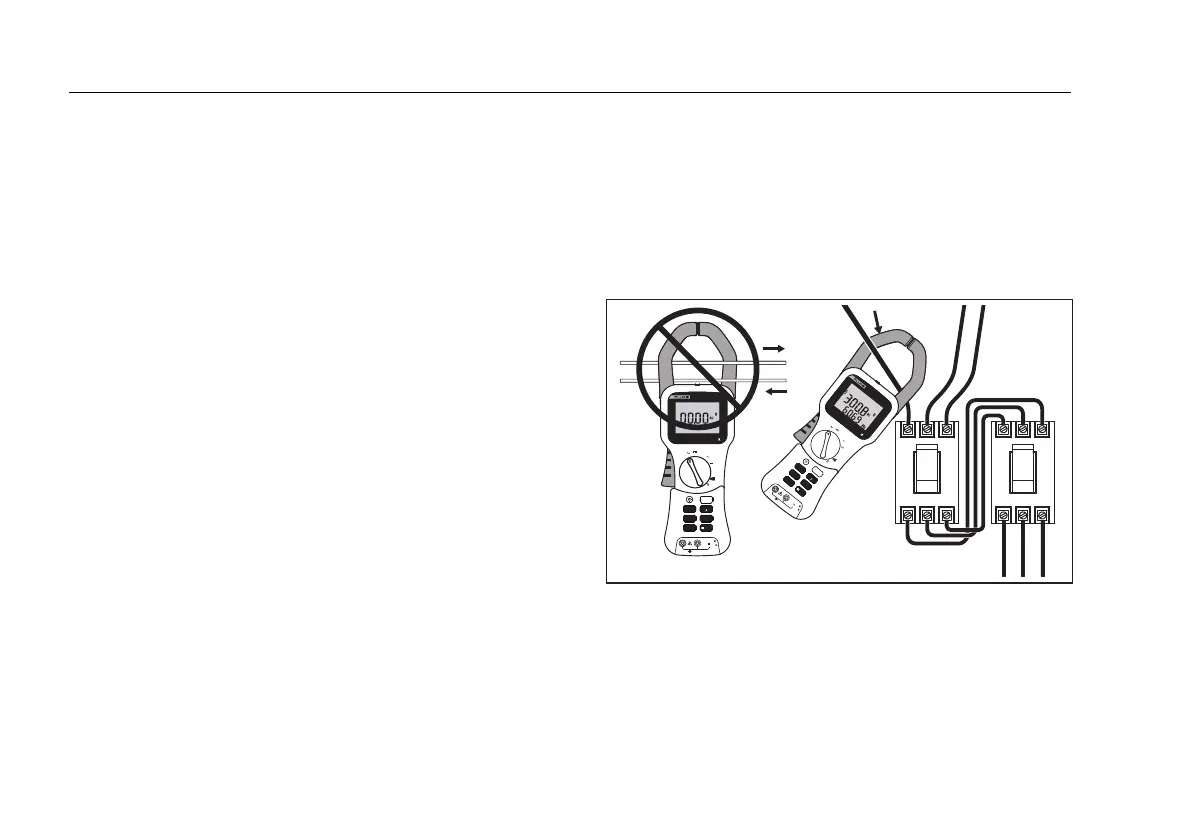

Figure 3. Connecting the Meter

Fluke 353 Specifications

General

DC voltage	1000 V
Low pass filter	Yes
DC current (max)	2000 A
Measuring category	CAT III 1000V, CAT IV 600V
AC current maximum resolution (probe)	1 A
Battery type	AA
Number of batteries supported	6
Certification	IEC 61010-2-032, CE, RoHS, EMI, RFI, EMC, IP42
Product color	Black, Red, Yellow
Operating altitude	0 - 2000 m
Non-operating altitude	0 - 10000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	52 mm
Width	98 mm
Height	300 mm
Weight	814 g
