Using Memory, Printer, and PC

Use of Printer and PC21

21-5

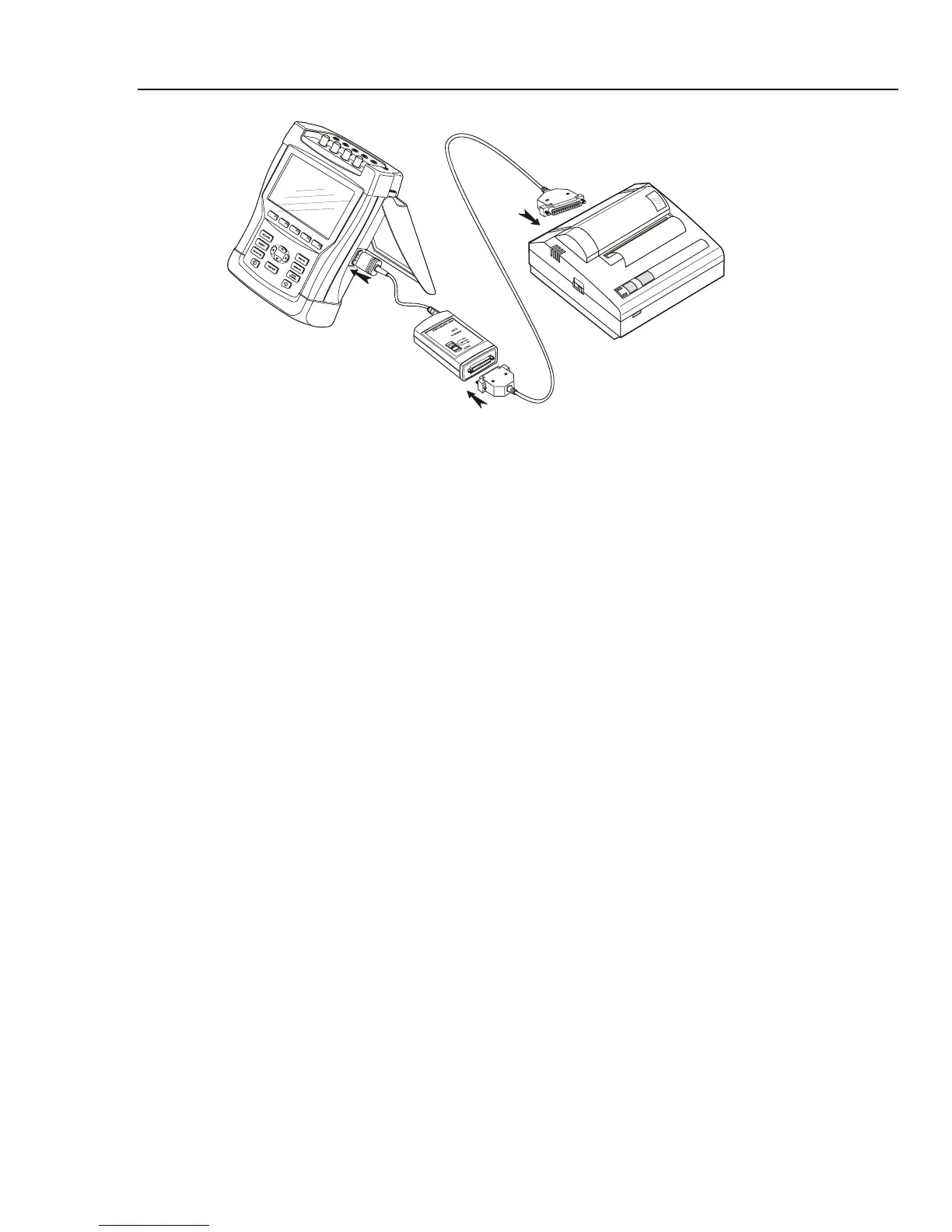

Figure 21-3. Analyzer, printer DPU-414, and printer adapter cable PAC91

Note

The Analyzer is adjustable to different baudrates for PC and printer.
