Fluke 434/435
Users Manual
16-2

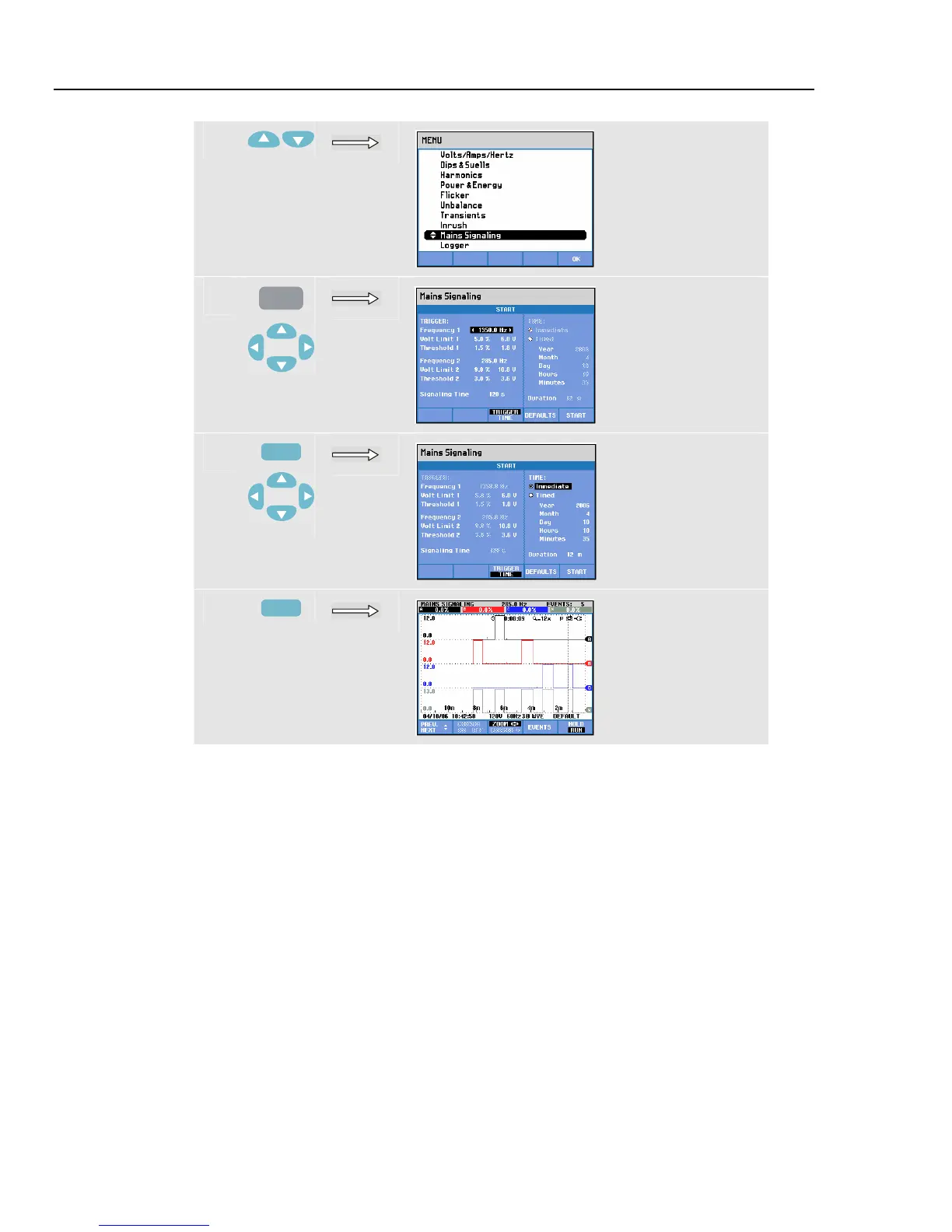

d
e
ENTER
f
F3
g
F5
The traces build up from the right side. Readings in the header correspond to the most
recent values plotted on the right. With the up/down arrow keys you can select readout as
a percentage of nominal line voltage or as a 3 second average voltage (V3s).
The Neutral conductor is not used for Mains Signaling, but is shown for troubleshoot
purposes.
