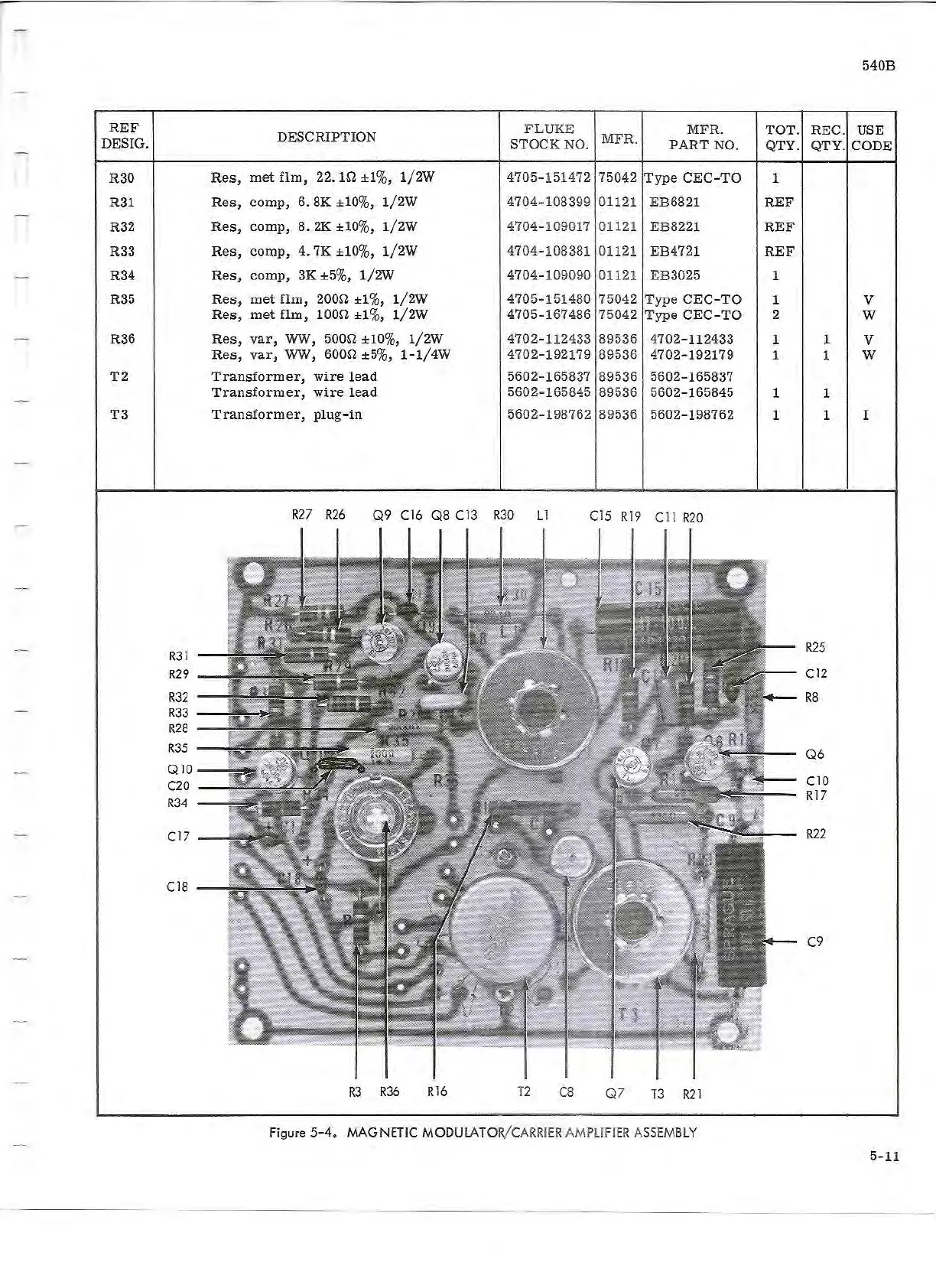

Fluke 540B - Page 51

540B
REF
DESCRIPTION
.
FLUKE
MF R. TOT.
REC . USE
DESIG.
STOCK
NO .
MFR.
PART NO. QTY. QTY .
CODE
R30
Res, met flm, 22. 1Ω ±1%, 1/2W 4705 - 151472 75 042 Type CEC -T O
1
R31
Res, comp, 6. 8K ±10%, 1/2W
4704-108399
01121 EB6821 REF
R32 Res, c omp, 8. 2K ±10%, 1/2W
4704- 109017
011
21 EB8221 RE F
R33
Res, comp, 4. 7K ±10 %, 1/2W 4704-108381 01121 EB4721
REF
R34 Res, comp, 3K ±5%, 1/2W
4704-109090
01121 EB3025
1
R35
Res, met flm, 200Ω ±1%, 1/2W
4705-151480
75042 Type CEC-TO
1 v
Res, met flm, l00Ω ±1 %, 1/2W
4705-167486
75042 Typ e CEC-TO 2
w
R36 Res , var, WW, 500Ω ±10%, 1/2W 4702- 112433 89536 4702-112433
1
1
v
Res, var, WW, 600Ω ±5%, l - 1/4W 4702-192179 89536 4702-192179
1 1
w
T2 Transformer, wire lead 5602-165837 89536 5602-165837
Transformer, wire lead 56 02-165845
89536 5602-165845
1 1
T3
Transformer, pl ug- in 56 02-198762
89536 5602-198762
1 1
I
R27 R2 6 Q9 C16 Q8 C13 R30 Ll
Cl5 Rl9 Cll R20
R31
R25
R29
C 12
R32 R8
R33
R28
R35
Q6
Q10
C20
C10
R34
R17
Cl7
R22
Cl8
C9
R3 R3 6
Rl6
T2
C8
Q7 T3 R2 1
Figure 5- 4. MA G NETIC MODULATOR/C ARRIER AMPLIFI ER ASS EM BLY
