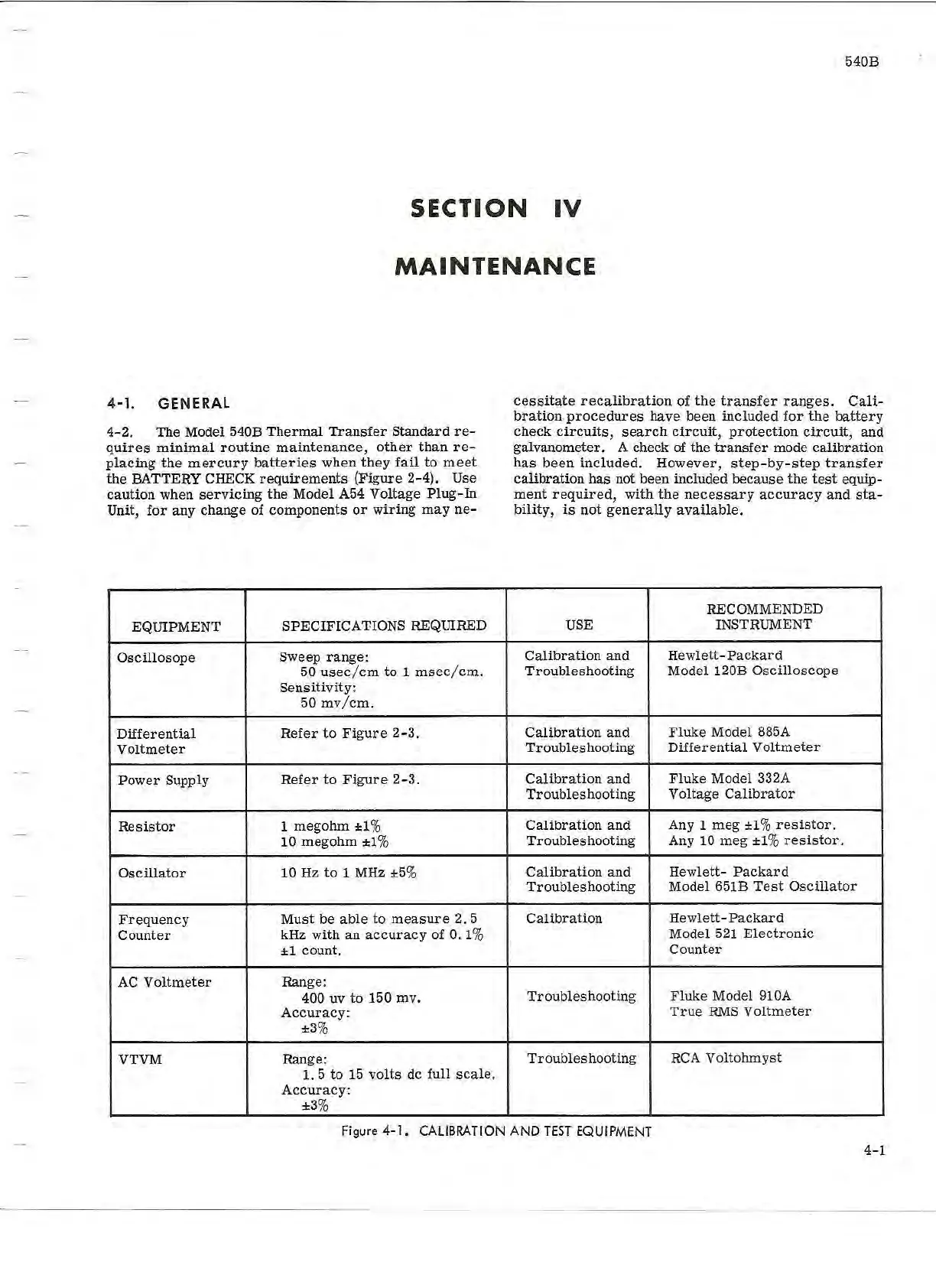

Fluke 540B - SECTION IV MAINTENANCE

540B
SECTION IV
MAINTENANCE
4 -1. GENERAL
4- 2. The Model 540B Thermal Transfer Standard re-
quires minimal routine maintenance, other than re -
placing the mercury batteries when they fail to meet
t he BATTERY CHECK requirements (Figure 2- 4). Use
caution when servicing the Model A54 Voltage Plug-In
Unit, for any change of components or wiring may ne -
EQUIPMENT
SPECIF I CATIONS REQUIRED
Oscillosope
Sweep range:
50 usee/em to 1 msec/cm.
Sensitivity:
50 mv/cm.
Differential
Refer to Figure 2- 3.
Voltmeter
Power Supply
Refer to Figure 2-3.
Resistor 1 megohm ±1%
10 megohm ±1%
Oscillator
10Hz to 1 MHZ ±5%
Frequency
Must be able to measure 2. 5
Counter
kHz with an accuracy of 0. 1%
±1 count.
AC Voltmeter
Range:
400
uv to 150 mv.
Accuracy:
±3%
VTVM Range:
1. 5 to 15 volts de full scale.
Accuracy :
±3%
cessitate recalibration of the transfer ranges. Cali -
brat ion procedures have been included for the ba ttery
check circuits, search circuit, protection circuit, and
galvanometer. A check of the transfer mode calibration
has been included. However, step - by - step transfer
calibration has not been included because the test equip-
ment required, with the necessary accuracy and sta-
bility, is not generally available.
RECOMMENDED
USE
INSTRUMENT
Calibration and
Hew lett- Packard
Troubleshooting Model 120B Oscilloscope
Calibration and Fluke Model 885A
Troubleshooting
Differential Voltmeter
Calibration and
Fluke Model 332A
Troubleshooting Voltage Calibrator
Calibration and
Any 1 meg ±1% resistor.
Troubleshooting
Any 10 meg ±1% resistor.
Calibration and
Hewlett- Packard
Troubleshooting
Model 651B Test Oscillator
Calibration
Hewlett- Packard
Model 521 Electronic
Counter
Troubleshooting Fluke Model 910A
True RMS Voltmeter
Troubleshooting RCA Voltohmyst
Figure 4- 1. CALIBRATION AND TE ST EQUIPMENT
4- 1
