Fluke 540B - Page 54

540B
REF
DESCRIPTION
FLUKE
MFR.
TOT. REC. USE
D
ES IG.
STOCK NO.
MFR.
PART NO. QTY. QTY.
CODE

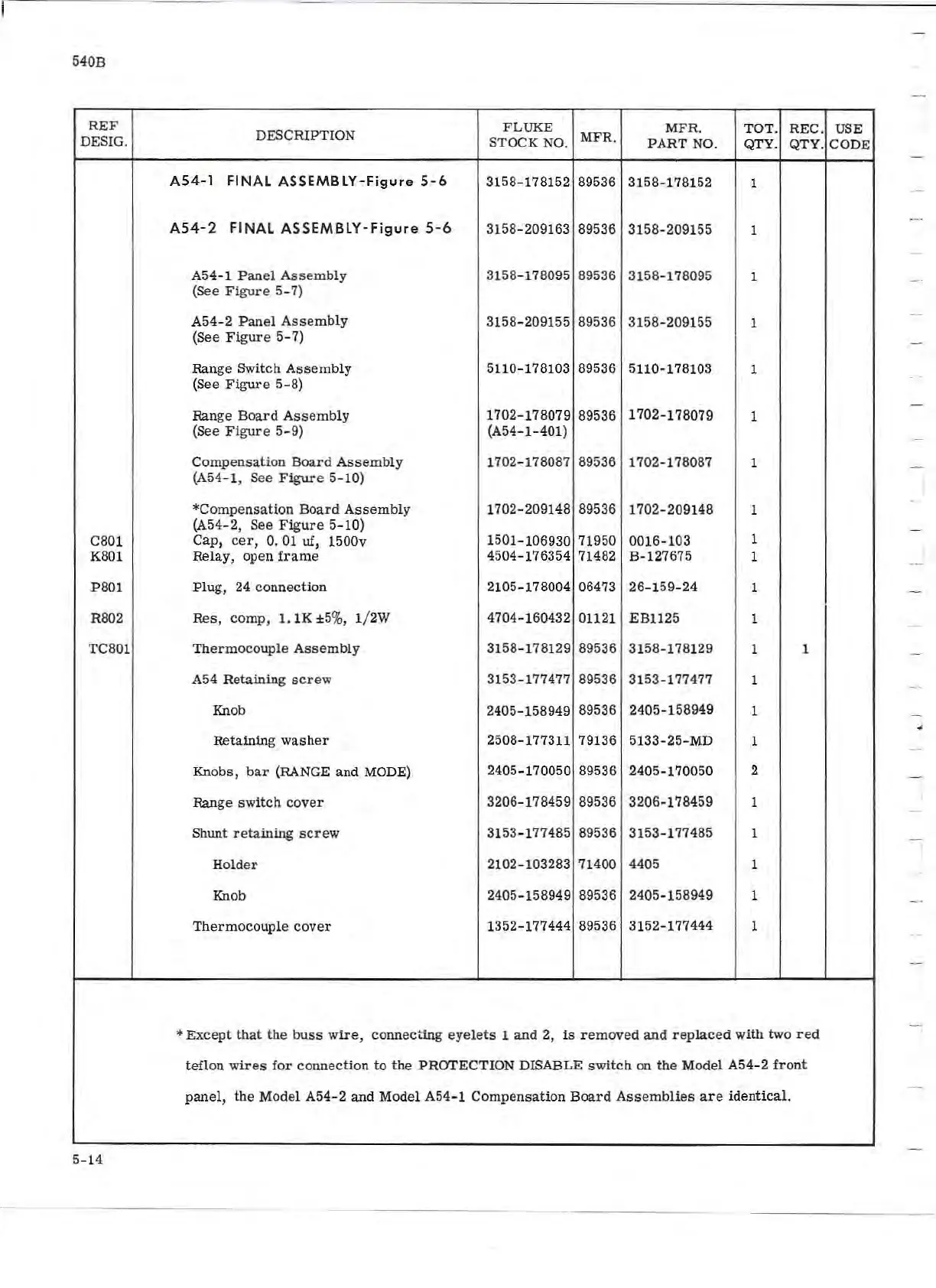

A54 - 1 FINAL ASSEMBLY-Fig ure 5-6
3158-178152
89536 3158-178152
1
A54-2 FINAL ASSEMBLY-Figure 5-6
3158-209163
89536 3158-209155
1
A54-1
Pan el As se mbly 3158-178095
89536 3158
-17 8095
1
(See
Fi gur e 5-7)
A54-2 Panel As s e mbly
3158-209155 89536 3158-209155
1
(See
Figur e 5-7)
Range Switch Assembly 5110-178103 89536
5110-178103 1
(See
Figur e 5-8)
Range
Board Ass e mbly 1702-178079
89536
1702-178079
1
(See F
igu r e 5- 9) (A54-1-401)
Compe ns ation B oa rd Assembly 1702-178087
89536 1702-178087
1
(A54-1, See
Figure 5-10)
*Compensation Board Assembly
1702-209148
89536 1702-209148
1
(A54-2, See
Fi g ure 5-10)
C801
Cap,
cer, 0. 01 uf, 1500v 1501-106930 71950 0016-103
1
K801
Relay, open frame
4504-176354
71482 B-127675
1
P801
Plug, 24 connection
2105-178004
06473 26
-1 59-24
1
R802
Res, com p, 1. 1K ±5%, 1/ 2W
4704-160432
01121
EBU25
1
TC 8 01
Thermo couple Assembly 3158-178129 8953 6 3158-178129
1
1
A54
Retain ing scr ew 3153-177477
89536 3153-177477
1
Knob 2405-158949
89536 2405-158949
1
Retainin g washer
2508-177311
79136
5133-25-MD
1
Knobs, bar (RANGE and MODE)
2405- 170050 89536 2405-170050 2
Range s w
itch co ver
3206-178459 89536 320 6-178459
1
Shunt r
eta in ing s crew 3153 -1 77485 89536 3153-177485 1
Holder
2102-103283 71400 4405
1
Knob 2405
-1 58949 89536
2405-158949
1
Thermocoupl e cover
1352-177444 89536 3152-177444
1
*Except that t he b uss w ire , connec t ing eye l et s 1 and 2, is removed and replaced with two red
teflon w ire s f or co nnection to the PROTECTION DISABLE switch on the Model A54- 2 front
panel, the Model A54-2 and Model A54- 1 Compensation Board Ass em blies are identical.
