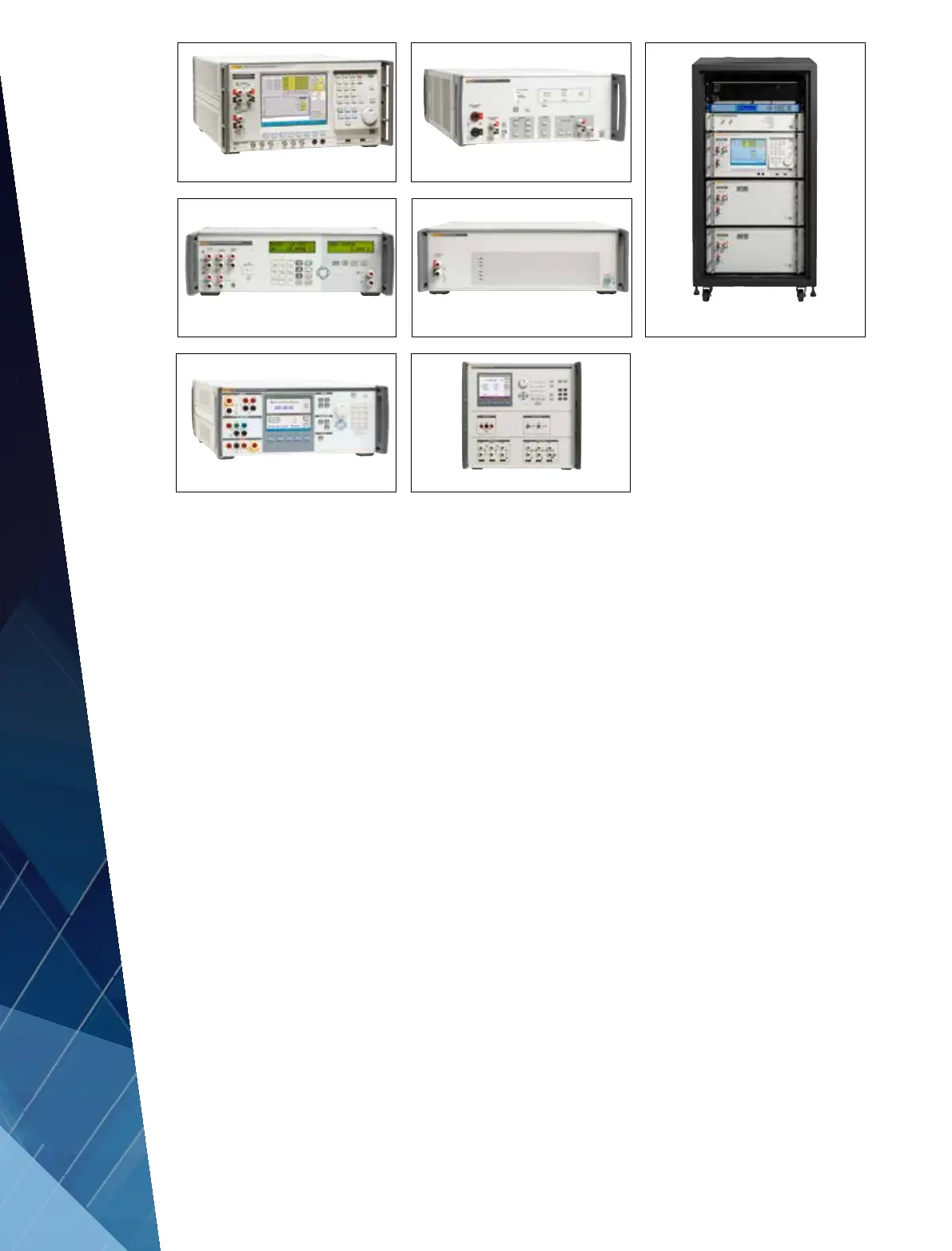

52120A Transconductance
Amplifier
Test and calibrate power stan-
dards, power and energy meters,
PQ analyzers, high-current clamp
meters and Rogowski coils.
Delivers:
• 120 A stand-alone
• 240 A or 360 A with parallel
operation
• 3000 A or 6000 A with
accessory coils
• Industry-leading amplifier
accuracy:
– 100 PPM dc to 850 Hz
– 120 PPM dc and 260 PPM ac
in stand-alone operation
• Frequency capability, dc to
10kHz
7526A Precision Process
Calibrator
Best balance of economy and
accuracy for calibration of tem-
perature and pressure process
measurement instrumentation.
• Sources and measures dc
voltage, current, resistance
• Measures and simulates RTDs
and thermocouples
• Measures pressure using Fluke
750 Series pressure modules
• Includes 24 V dc loop power
supply, automated switch-test
function and measures 4 mA to
20 mA
Specialty
calibrators
6105A/6100B Electrical
Power Standards
The most accurate, comprehen-
sive and flexible sources of
electrical power quality and
energy signals.
• Power calibration with voltage
to 1008 V and current to
21 amps, and optionally up to
80 amps
• Voltage and current accuracies
better than 0.005 % (50 ppm)
• Current to voltage phase
accuracy of 0.003 °
• Programmable harmonic
distortion up to 100 harmonics
• Includes other power quality
testing phenomena
• Complex measurements gener-
ating a wide variety of signals
5725A Amplifier
The Fluke 5725A Amplifier is a
companion to the 57XX Series
calibrators.
• Extends the calibrators’
alternating volt-hertz product
to 1100 V at 30 kHz and 750 V
at 100kHz
• Increases maximum direct and
alternating current to 11 A
6003A Three Phase
Electrical Power Calibrator
Three power phases in a single
easy-to-use instrument.
• Cost effective
• Easy to use
• Simulates dc or ac electrical
power and energy in voltage
range to 600 ac V or 280 dc V
and current range to 30 A per
phase or 90 A combined
• Phase shift between voltage
and current channels can be
set from 0° to 359.99°
6135A/PMU Phasor
Measurement Unit Calibrator
Fast, automated, IEEE C37
118 .1-2011- c omp l i a nt P M U
calibrations. System includes:
• PMU control unit
• GPS receiver
• PMU test and calibration
software
• Fluke 6135 Electrical Power
Standard
• Configured server PC
5322A Electrical Safety
Tester Calibrator
Calibrate all major types of elec-
trical safety testers with just one
calibrator
• Calibrate insulation resistance
testers; leakage current testers;
multifunction installation tes-
ters; portable appliance testers
(PATs); continuity testers, earth
(ground) resistance testers and
many more types of electrical
safety testers
• Complies with new regula-
tory standards up to four times
faster than traditional methods
• Compatible with MET/CAL
software
www.flukecal.comElectrical calibration
6

Fluke 5730A/03 Specifications

General

Brand	Fluke
Model	5730A/03
Category	Test Equipment
Language	English
