Attach Accessories
Accessory attachment is explained in the subsequent sections.
Fluid Overflow Accessory
Fluke Calibration recommends the fluid overflow accessory kit (model 7109-
2083) to avoid spills caused by thermal expansion of the fluid or an overfilled
tank.

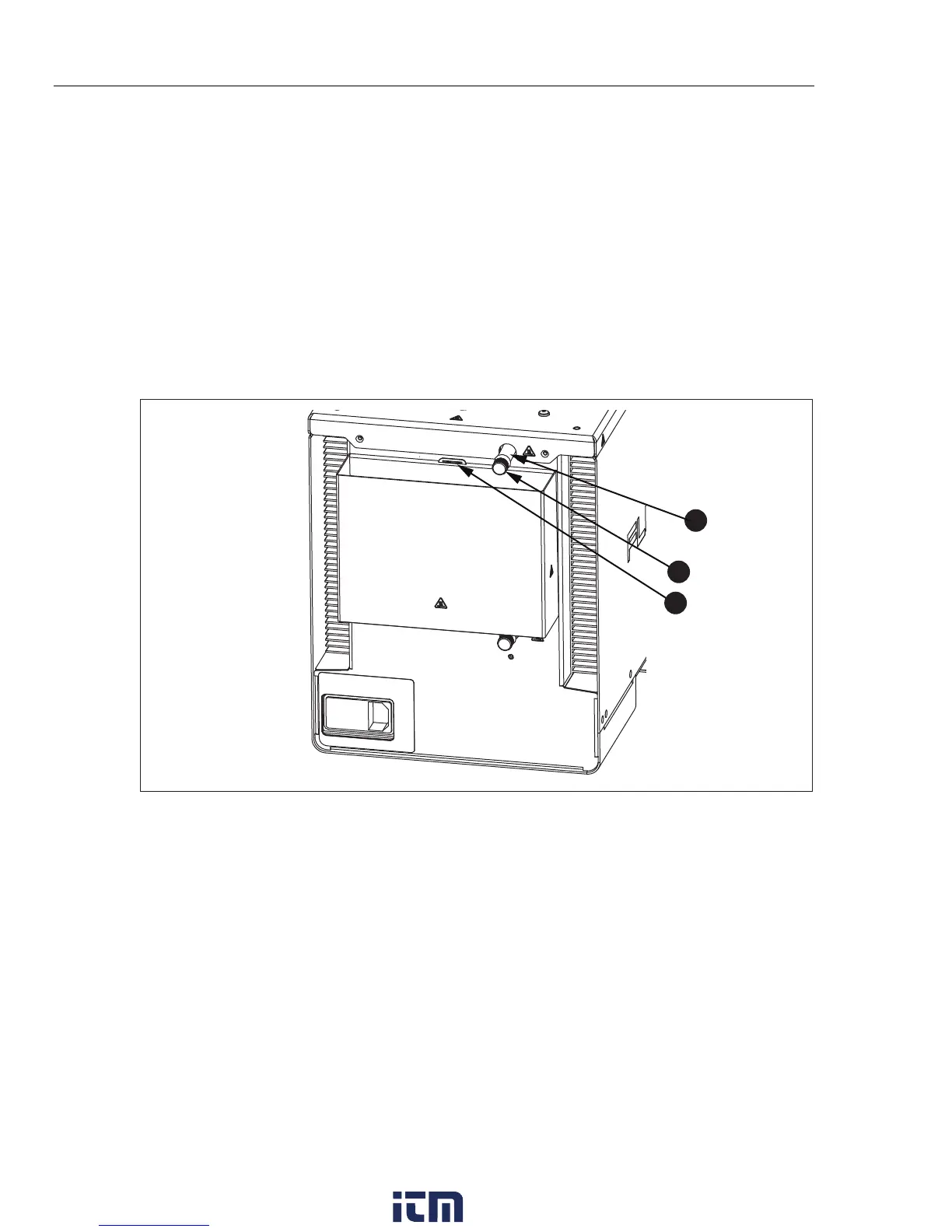

To install the bath fluid overflow accessory, see Figure 7:
1. Remove the plug from the overflow tube .
2. Place the overflow container onto the mounting bracket and align it below
the overflow tube.
3. Place the cover (not shown) on the overflow container.
1
2
3
icu03.eps
Figure 7. Fluid Overflow Accessory
