6109A/7109A
Operators Manual
18
Adjustable Probe Fixture
Use the adjustable probe fixture (model 7109-2027) to hold up to four tri-clamp
temperature sensors. The device fits inside the tank opening and attaches to the
top panel of the Product with four thumb screws. The height of the platform can
be adjusted for proper immersion of the stems and flanges of the temperature
sensors. To adjust the height, slightly squeeze the tabs inward on the height
adjustment bracket shown in Figure 9.
1
icu08.eps

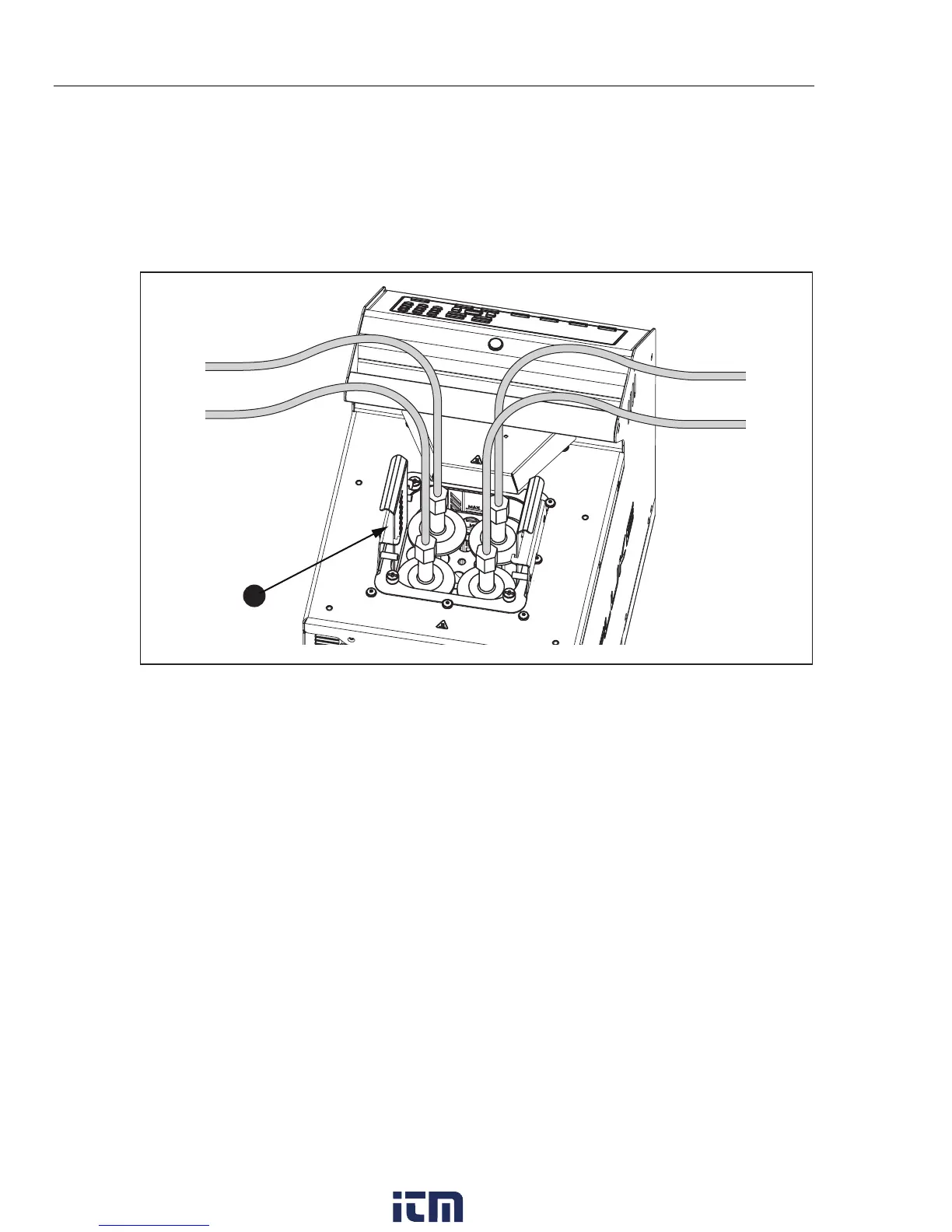

Figure 9. Adjustable Probe Fixture
