Connect the Reference Probe and Test Sensor
21
Use the provided clamp-on ferrites to reduce radio-frequency emissions and to
ensure electromagnetic compatibility with other equipment. Loop a section of

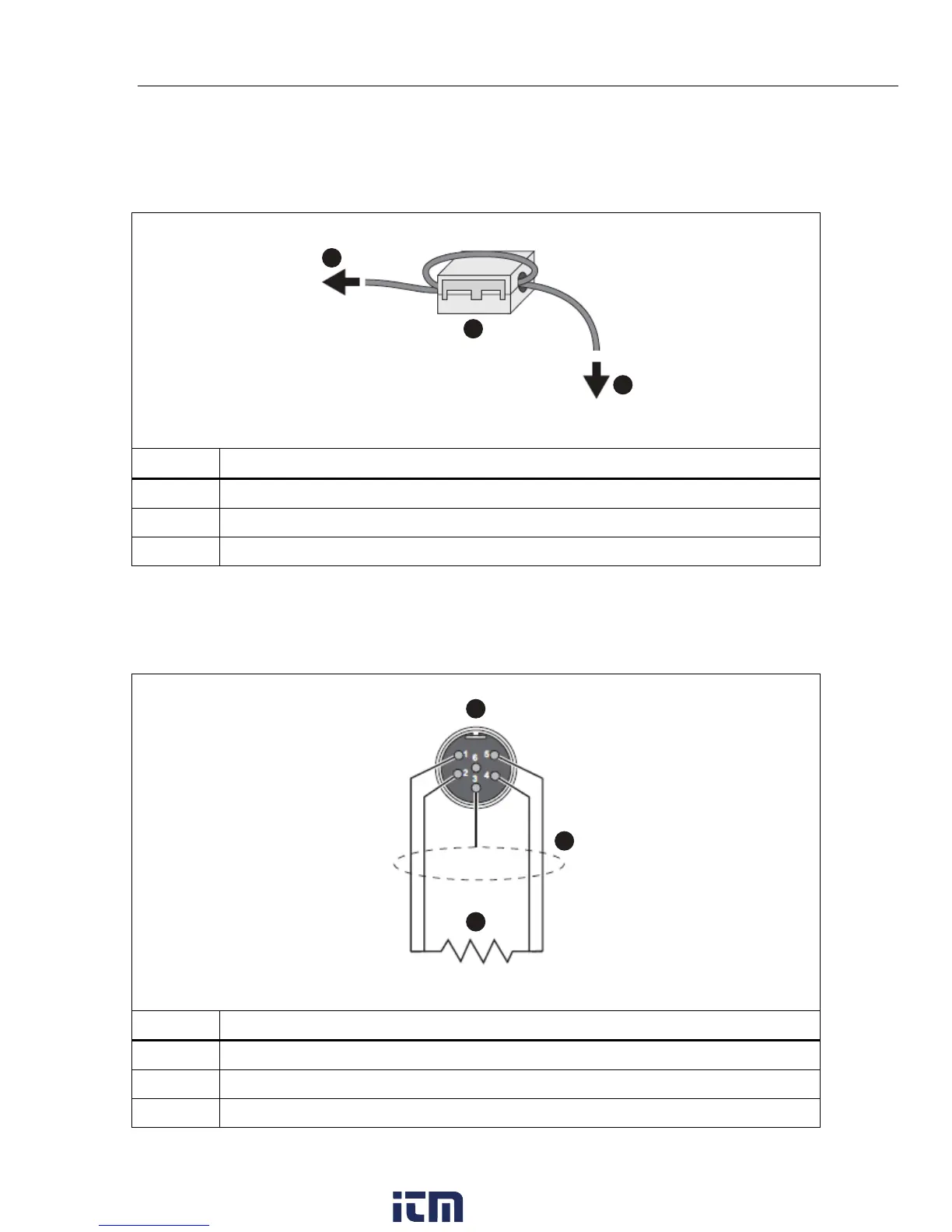

cable near the connector through the ferrite as shown in Figure 10. Fluke
Calibration also recommends a ferrite for the test sensor.
1
3
2
icu10.eps
Number Description
Connector
Clamp-on Ferrite
Probe
Figure 10. Ferrite Installation
The reference probe plugs into the REF PRT input. It requires a 6-pin DIN
connector wired as shown in Figure 11.
1
2
3
icu11.eps
Number Description
Probe Connector
Shield
PRT Sensor
Figure 11. Reference Probe Connections
