Fluke 725/FPC User Manual

Name: Fluke 725/FPC
Brand: Fluke
Rating: 4 (1 reviews)

68 pages

To Next Page

To Previous Page

Shut Down Mode

V mA

LOOP

V mA

RTD

100%

25%

RECALL

ZERO

MEAS

SOURCE

STORE

SETUP

MULTIFUNCTION CALIBRATOR

725

sh39f.eps

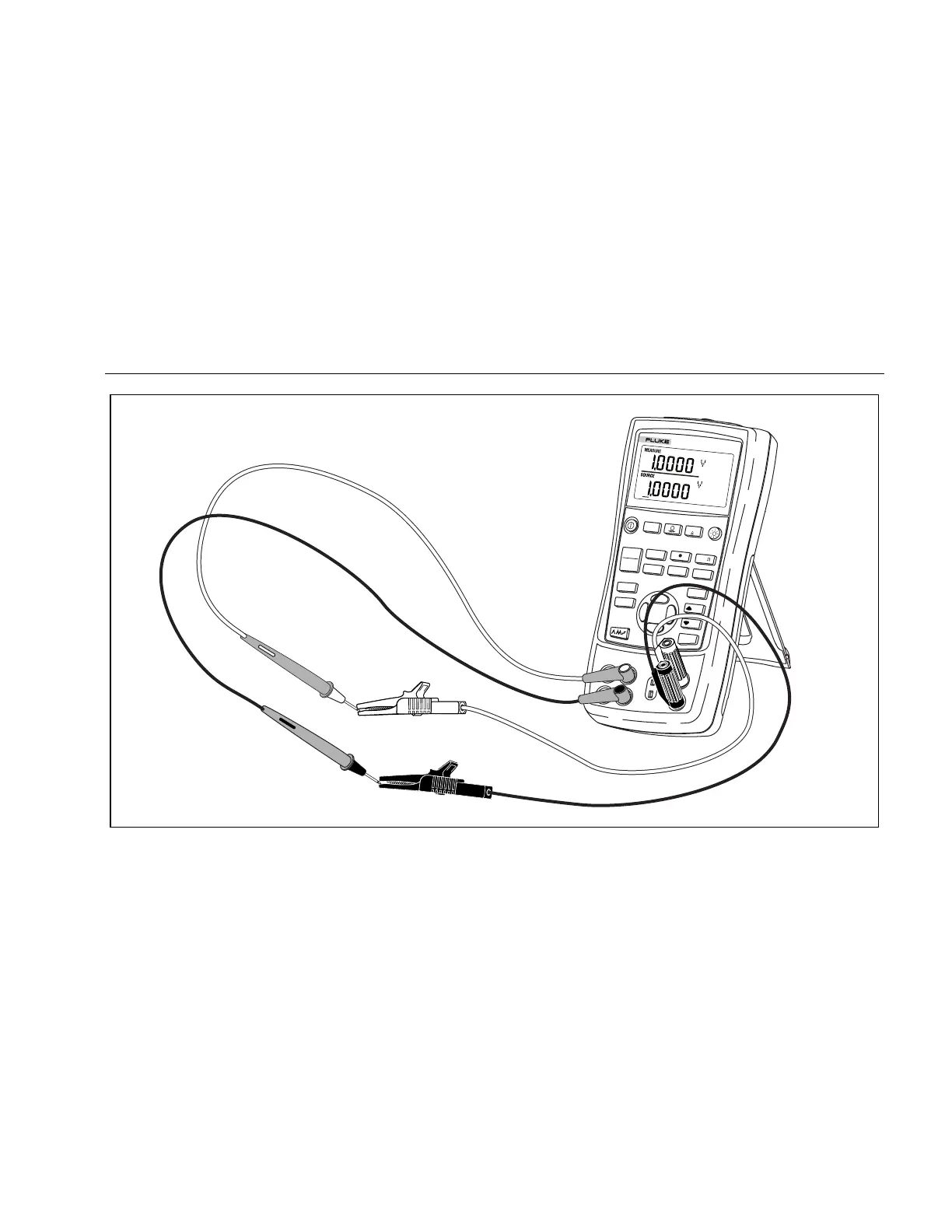

Figure 5. Voltage-to-Voltage Test

1.800.561.8187information@ITM.com

Fluke-Direct.ca

Table of Contents3
Introduction9
Standard Equipment11
Safety Information11
Getting Acquainted with the Calibrator16
Input and Output Terminals16
Keys18
Display21
Getting Started22
Shut down Mode22
Contrast Adjustment24
Using Measure Mode25
Measuring Electrical Parameters (Upper Display)25
Current Measurement with Loop Power25
Measuring Electrical Parameters (Lower Display)27
Measuring Temperature28
Using Thermocouples28
Using Resistance-Temperature Detectors (Rtds)31
Measuring Pressure34
Zeroing with Absolute Pressure Modules35
Using Source Mode37
Sourcing 4 to 20 Ma37
Simulating a 4- to 20-Ma Transmitter37
Sourcing Other Electrical Parameters37
Simulating Thermocouples40
Simulating Rtds40
Sourcing Pressure43
Setting 0 % and 100 % Output Parameters45
Stepping and Ramping the Output45
Manually Stepping the Ma Output45
Auto Ramping the Output46
Storing and Recalling Setups46
Calibrating a Transmitter47
Calibrating a Pressure Transmitter49
Calibrating an I/P Device51
Testing an Output Device53
Remote Control Commands54
Replacing the Batteries57
Replacing the Fuses57
Maintenance58
Cleaning the Calibrator58
Service Center Calibration or Repair58
Replacement Parts59
Accessories61
External Fluke Pressure Module Compatibility61
Specifications64
DC Voltage Measurement64
DC Voltage Source64
Millivolt Measurement and Source64
DC Ma Measurement and Source65
Ohms Measurement65
Ohms Source65
Frequency Measurement65
Frequency Source66
Temperature, Thermocouples66
Loop Power Supply67
RTD Excitation (Simulation)67
Temperature, RTD Ranges, and Accuracies (ITS-90)67
Pressure Measurement68
General Specifications68
