77 Series III
Service Manual
3-6
Decal Window
Case Top
LCD Window
Mask Bracket
LCD
Elastomeric Connector
Internal Cover
Shaft Adapter
AC Shield
Main PCA
Screw, 4-14
Bottom Shield
Case Bottom Assembly
Screw, 5-14
Probe Holder
Tilt Stand
Knob Assembly
Shock Absorber
Detent Spring
Key Pad
Screw, 4-24
F1
F2
Battery
Annunciator
Contact
FLUKE-77-3
aaa12c.eps

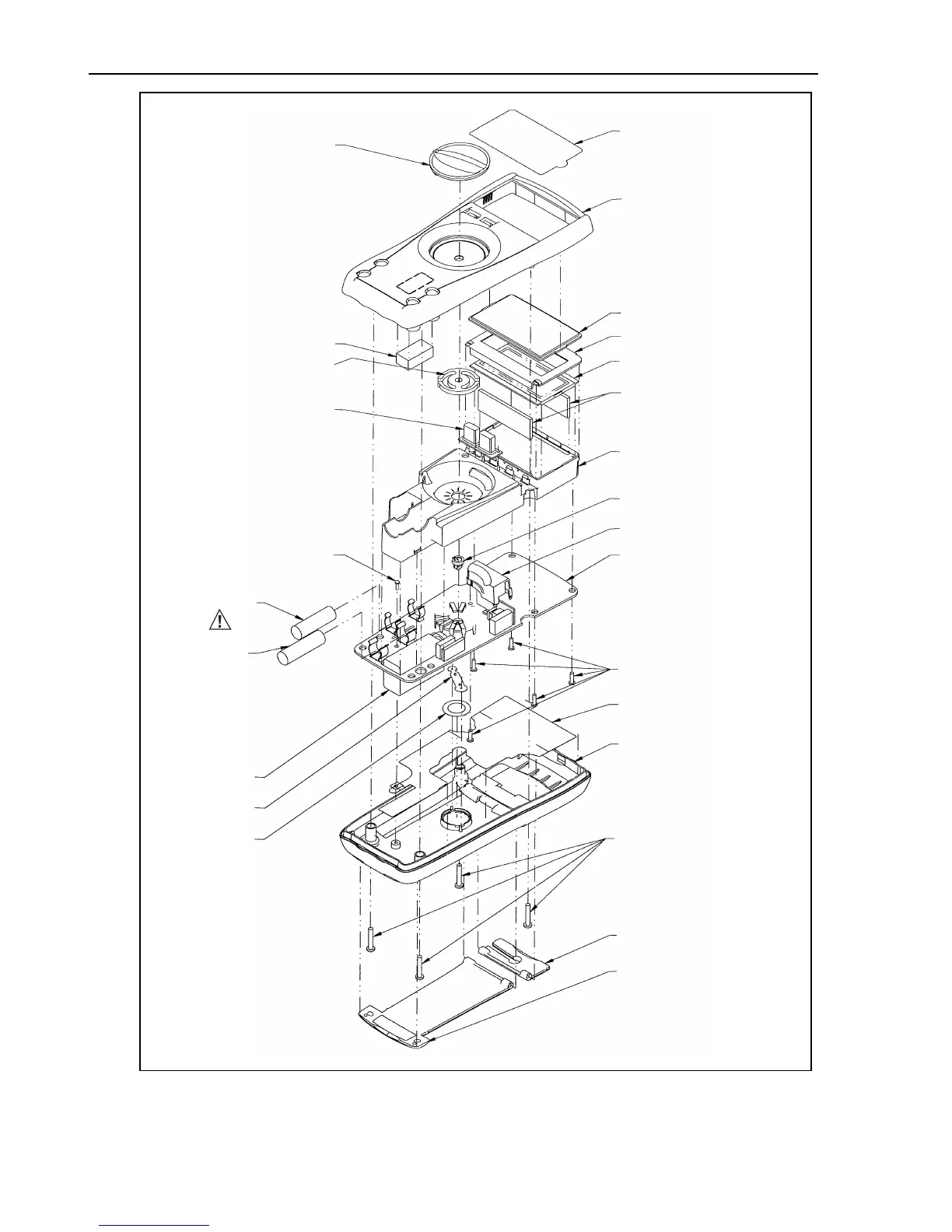

Figure 3-1. Assembly Details

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fluke 77 Series III and is the answer not in the manual?

Fluke 77 Series III Specifications

General IconGeneral
Diode TestYes
Continuity BeeperYes
Battery Type9V
Safety RatingCAT III 600V
DisplayLCD, 4000 counts
Voltage DC1000V
Voltage AC1000V
Current DC10A
Current AC10A
Resistance40 MΩ
Weight340 g
