8021
B

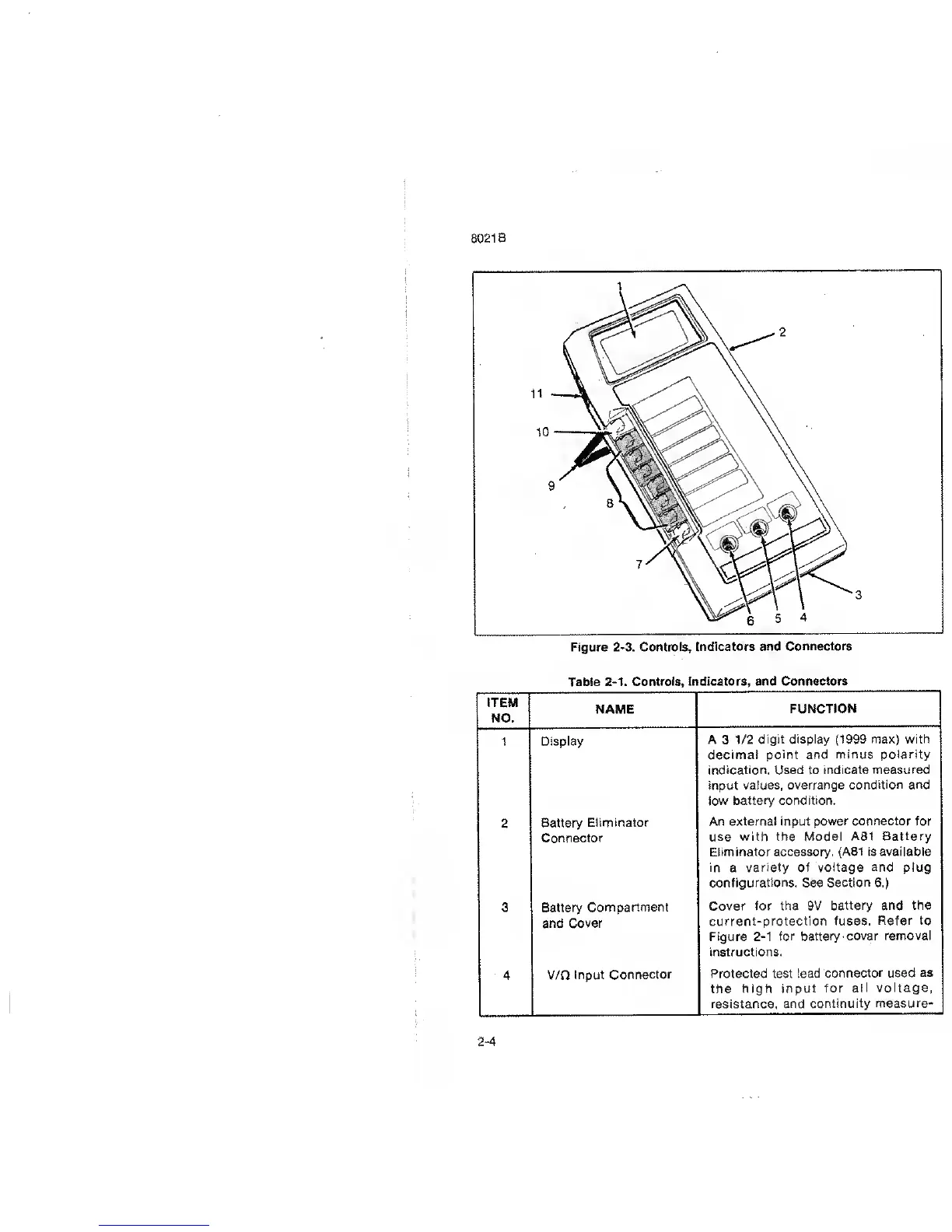

Table
2-1.
Controls,
Indicators, and Connectors
ITEM
NO.
NAME
FUNCTION
1
Display
A 3
1/2 digit display (1999
max)
with
decimal
point and minus polarity
indication. Used to
indicate measured
input values, overrange
condition and
iow
battery condition.
2
Battery
Eliminator
Connector
An external input power connector for
use with the Mode!
A81 Battery
Eliminator accessory. (A81
is available
in a
variety of voltage and plug
configurations. See
Section
6.)
3 Battery
Compartment
and Cover
Cover for the 9V
battery and the
current-protection fuses.
Refer to
Figure
2-1
for battery cover
removal
instructions.
WO
Input Connector
Protected test lead
connector used
as
the high
input for
all voltage,
resistance, and
continuity
measure-
2
-
