18 80i-110s Instruction Manual

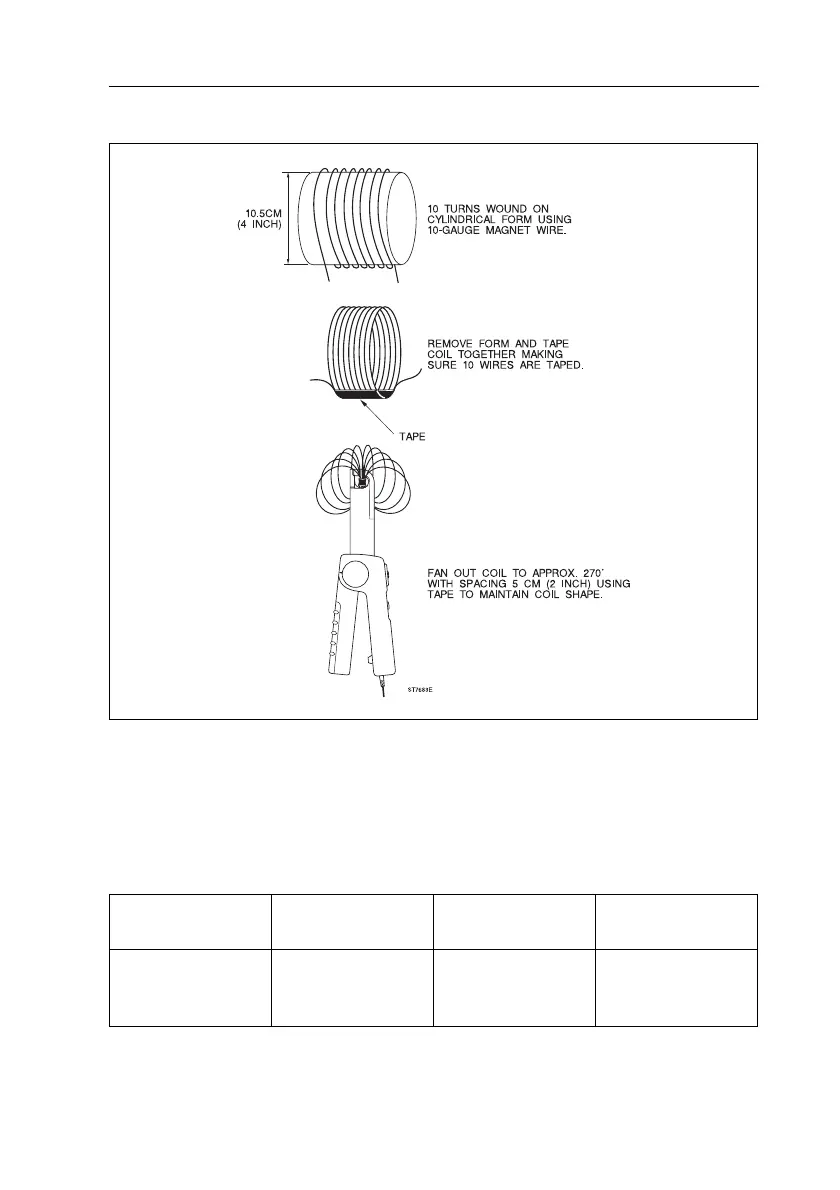

Figure 6. Toroid Coil Construction
Table 2. Performance Test Points (5100B Direct)
Current range 0 to 10A
DC Measurement:
5100B
SETTINGS
DC AMPS
MEASURED
LOW LIMIT
OUTPUT
HIGH LIMIT
OUTPUT
0.1A
0.5A
0.9A
1A
5A
9A
92 mV
480 mV
868 mV
108 mV
520 mV
932 mV
