Testing Speaker Cabling
13
Testing Speaker Cabling

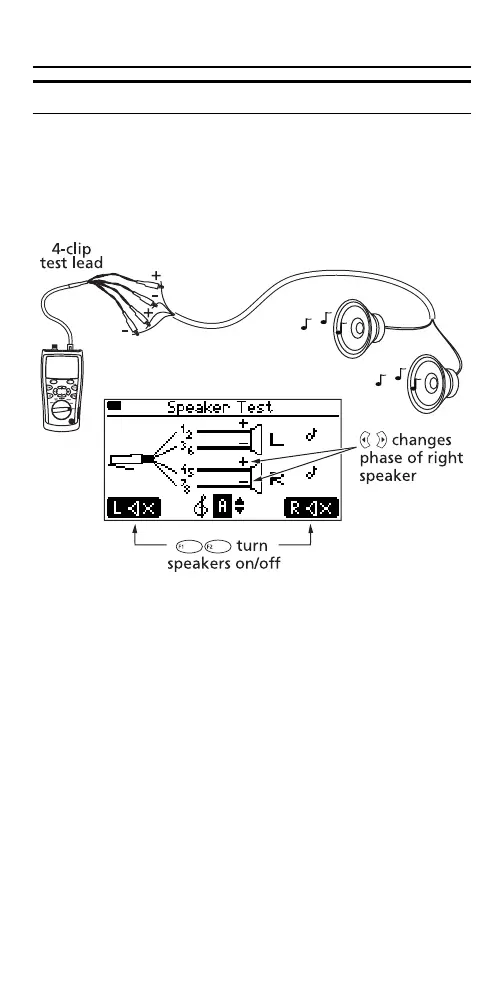

The Speaker Test generates audible tones for testing the
wiring and phase of installed twisted pair speaker
cabling.
Turn the rotary switch to Diag; then select Speaker Test.
axy39
4-clip test lead wiring:
+ Pair 12: green + Pair 45: blue
- Pair 36: orange - Pair 78: brown
