6R, 6G, 180R, 180G
Users Manual
6
Controls

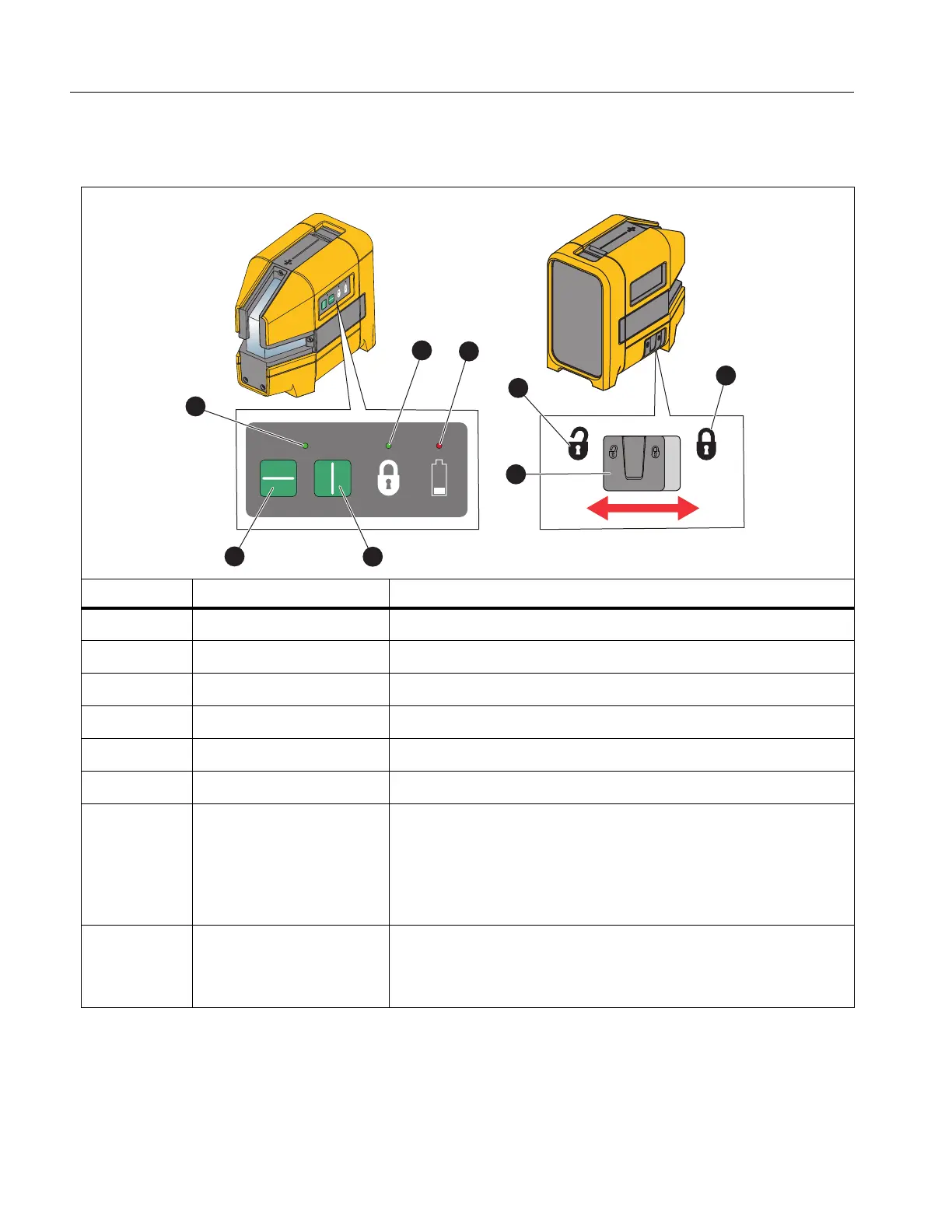

Table 4 lists the Controls of the Product.
Table 4. Controls
Item Description Function
Laser LED Shows green when at least one laser is on.
Lock LED Shows green when the laser lock is enabled.
Battery LED Shows red when the batteries need to be replaced.
Vertical laser button Turns on or off the vertical laser.
Horizontal laser button Turns on or off the horizontal laser.
Laser lock switch Slides to lock or unlock the lasers.
Laser unlock position
The self-leveling feature, keeps the lasers visible when the
Product tilts 4 ° in any direction.
When the Product tilts >4 ° in any direction, the lasers do not
show. The Laser indicator LED stays green to indicate that when
you return the Product to an upright position, the lasers show
again.
Laser lock position
Keeps the lasers visible even when you tilt the Product >4 °. The
lasers blink twice every 5 seconds to indicate the self-leveling
feature is disabled. Use to align items diagonally such as a stair
rail.
2
1
5
3
6
7
8
4
