Plumb Marks (6R, 6G Only)
The Product sends plumb marks up and down.
New Plumb Marks
To identify new plumb marks on a ceiling or roof:
1. Place a cross mark on the point to be transposed.
2. Center the down laser over the cross mark. See Figure 5.
3. Place a mark at the point where the up laser intersects the target area.
To identify new plumb marks on a floor, repeat the steps above but interchange the down and up lasers.
Note
Use the floor stand with the Product to increase the sight angle of the vertical down laser.

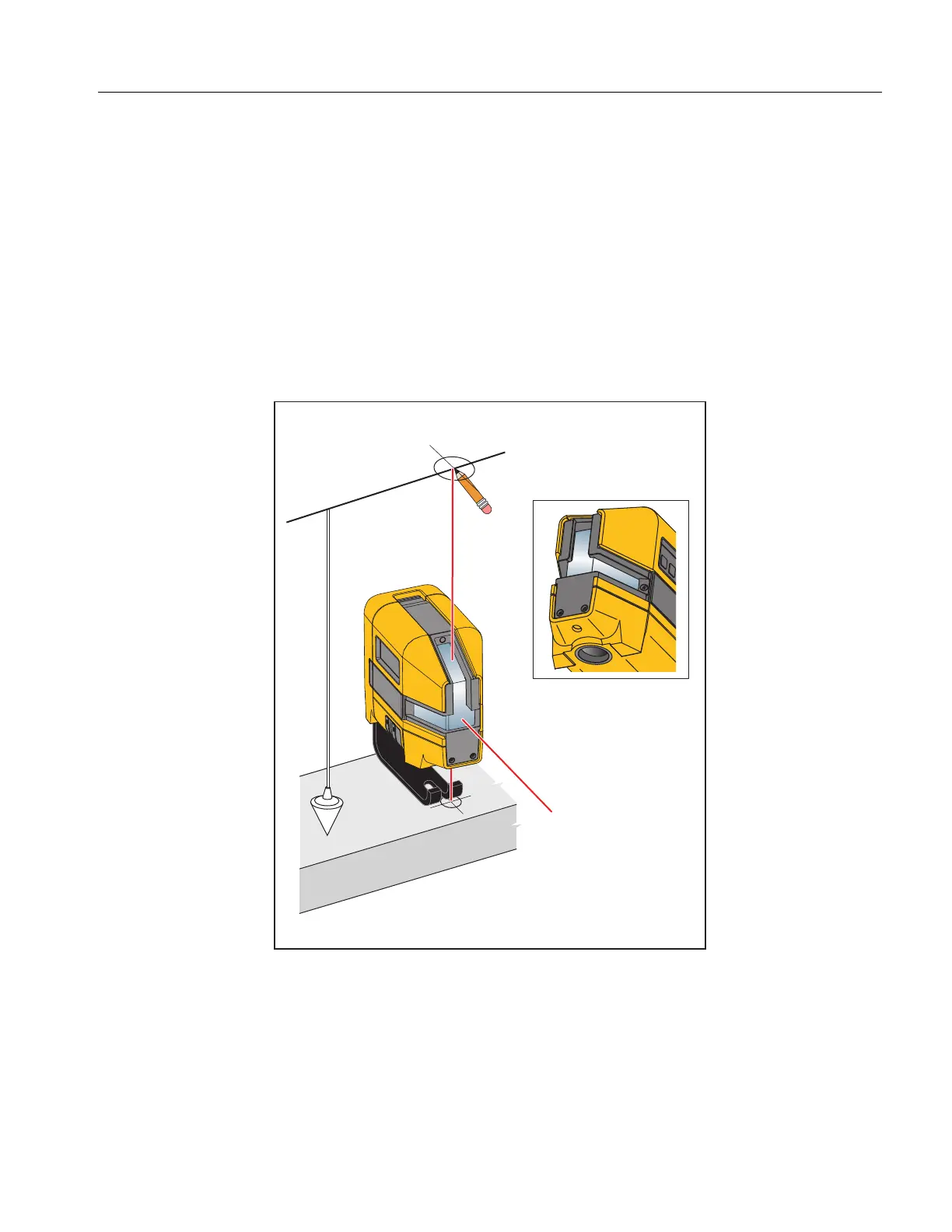

Figure 5. New Plumb Mark
