Fluke PLS 6R User Manual

6R, 6G, 180R, 180G
Users Manual
8
Use the Product
Use the Product to layout reference points and to make sure conditions are level and plumb.
W* Warning
To prevent eye damage and personal injury, do not look into the optical windows when the Laser
indicator LED shows green.
New Item Alignment
New Horizontal or Diagonal Alignment
Note
To find diagonal alignment, use the lock feature.
To identify new level or grade marks:
1. Put the bottom of the Product on a stable surface.
2. Turn on the horizontal laser and aim the laser at the target area. See Figure 2.
3. Put marks at the level or grade point on the target area.
Note
When the Product is mounted on a tripod, make sure the tripod head is perfectly level. Errors in marks
can result if a tripod is out of level.

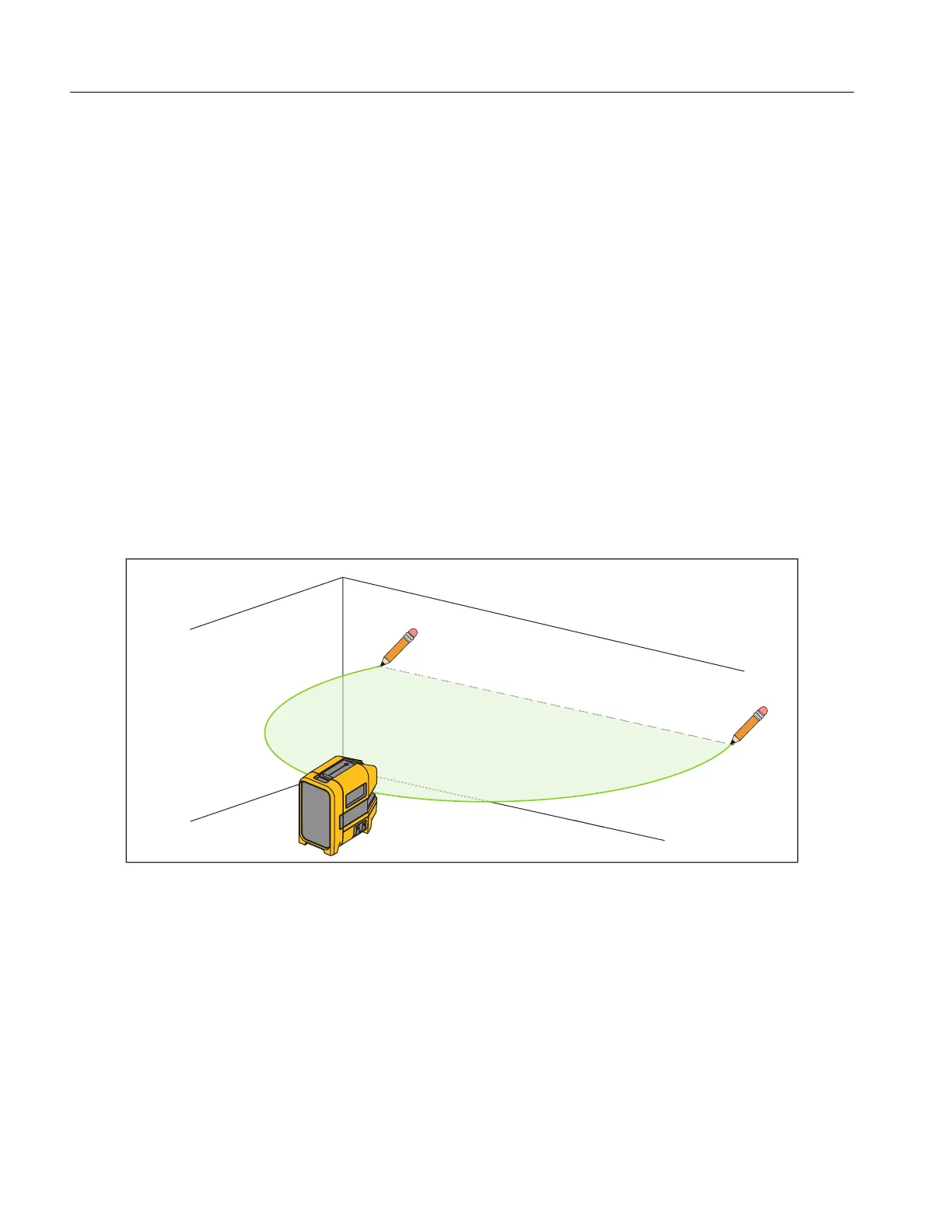

Figure 2. New Horizontal or Diagonal Alignment

Fluke PLS 6R Specifications

General

Brand	Fluke
Model	PLS 6R
Category	Laser Level
Language	English
