Fly Wing H1 - Pitch and Tail Servo Fine-Tuning; Zero and Pitch Angle Adjustment; Tail Servo Direction and Limits

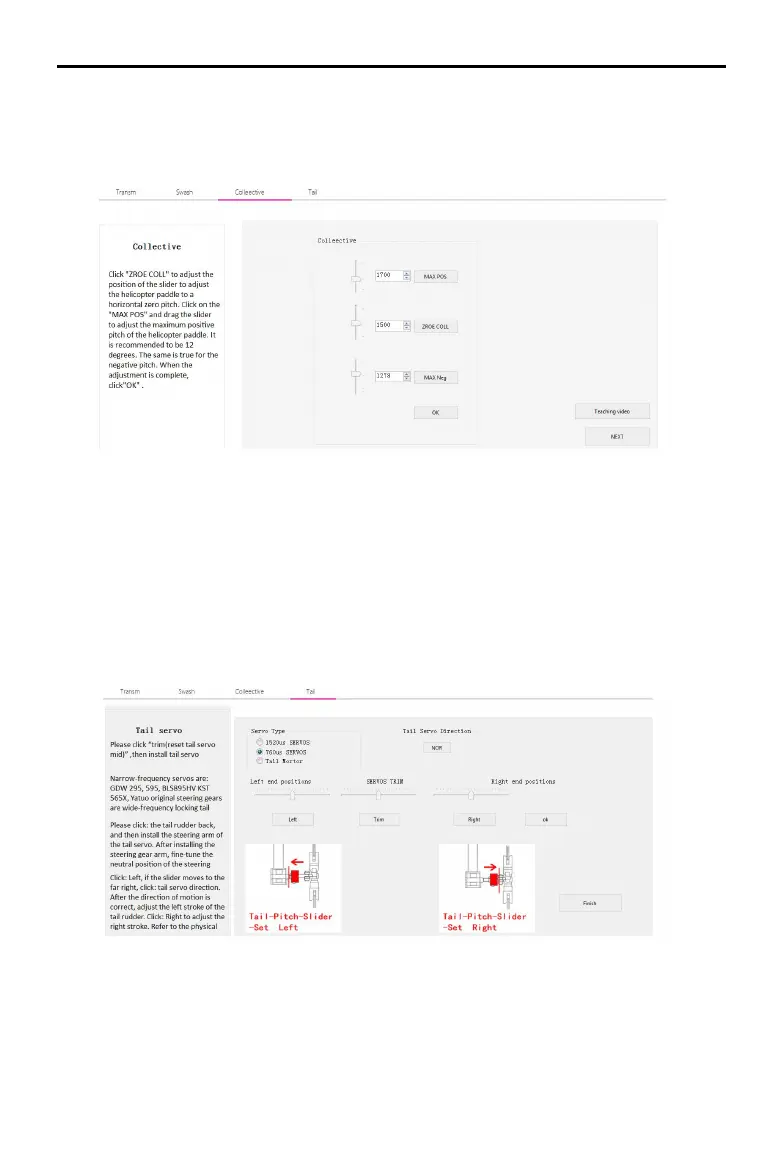

15、Enter the tail servo adjustment option, follow the left prompt to select
the servo type first, then click the slider to the left, if the slider is to the right,
click the tail rudder output to reverse; then click the tail rudder back,
calibrate the neutral point, and then click respectively The far left of the slider
and the far right of the slider, drag the slider until the slider just touches the
maximum limit of the tail axis.
14、Enter the pitch fine adjustment option, follow the left prompt for zero
pitch adjustment, then adjust the positive pitch to 12 degrees and the
negative pitch to 12 degrees.
H1
user manual
