SITE RREQUIREMENTS
The fireplace opening should be inspected and repairs made where necessary. Any chair brick will usually require
removal.
The opening WIDTH and HEIGHT dimensions should be between 365mm and 440mm wide, and 540mm to
575mm high.
Opening DEPTH should be 285mm. Opening DEPTHS include any plaster or infill panels which form part of the
installation.
This appliance required a natural draught flue system which may be one of the following;
225mm x 225mm (9in x 9in) brick or stone.
175mm (7in) minimum diameter lined brick or stone.
175mm (7in) minimum diameter twin wall flue conforming to BS 715.
Any existing under grate draught device must be sealed off.
The opening wall must be non-combustible and have adequate flat surface for appliance sealing.
The appliance requires a hearth with non-combustible surface of at least 12mm thick. The top surface must be at
least 50mm above the surrounding floor level, or be surrounded by a raised edge or fender 50mm high.
To enable the products of combustion to be cleared properly up the flue, the outlet at the back of the appliance
must have a minimum 50mm clearance between it and the back wall of the opening or other obstruction. The
area immediately above the outlet must form a smooth path into the flue. Any type of fire surround used with this
appliance must be adequately sealed to the wall and floor.
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given
in the user section of these instructions. A non-combustible shelf may be fitted to within 10mm of the top edge
of the fireframe.
Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the frame of the fire-
place opening, providing the forward projection does not exceed 100mm (4in).
Any combustible side walls must be at least 500mm to the side of the radiant heat source.
As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock, blown vinyl and
embossed paper) positioned too close to the appliance may discolour or scorch.
3

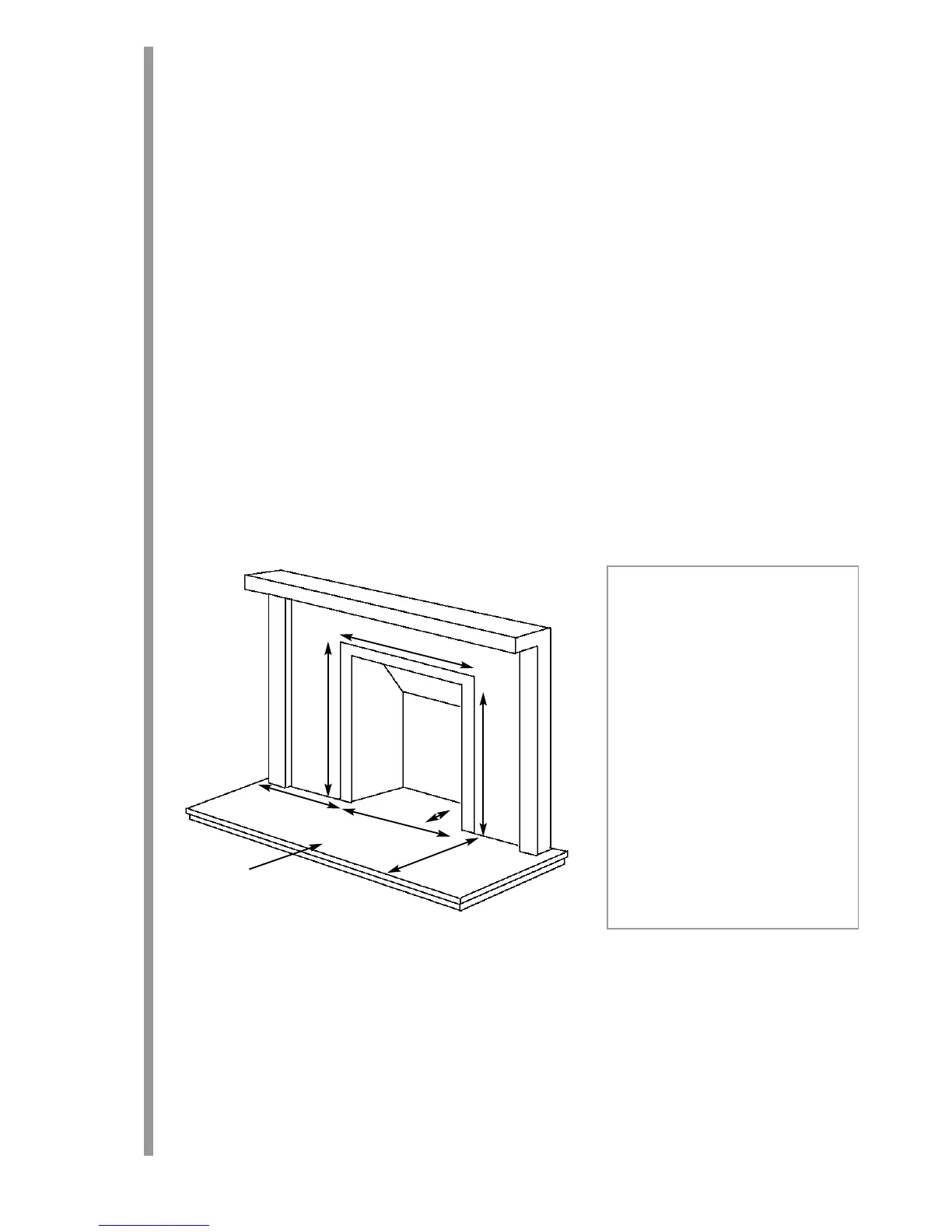

G
A
C
H
D
B
E
F
A. Opening height: 540mm min/575
mm max.
B. Opening width: 365mm
min/440mm max.
C. Mounting depth: 285mm
D. Hearth must extend minimum of
150mm either side of the opening.
E. Hearth must extend minimum of
325mm in front of the opening.
F. Non-combustible hearth must be a
minimum of 50mm in height, or be sur-
rounded by 50mm high fender.
G. 470mm, this area must be flat and
vertical to ensure a good seal.
H. 585mm, this area must be flat and
vertical to ensure a good seal.
4.0
