Thunderbolt Connection
Confirm that Red 4Pre’s Host setting is set to ‘Thunderbolt’, see Global Host Settings on page 19.
Two Thunderbolt 2 connectors are located on the rear panel.
Connect to the host or into the chain using standard Thunderbolt cables
(not supplied).
See appendix 2 on pages 24–26 for the channel I/O allocation tables.
Logic Pro X Setup

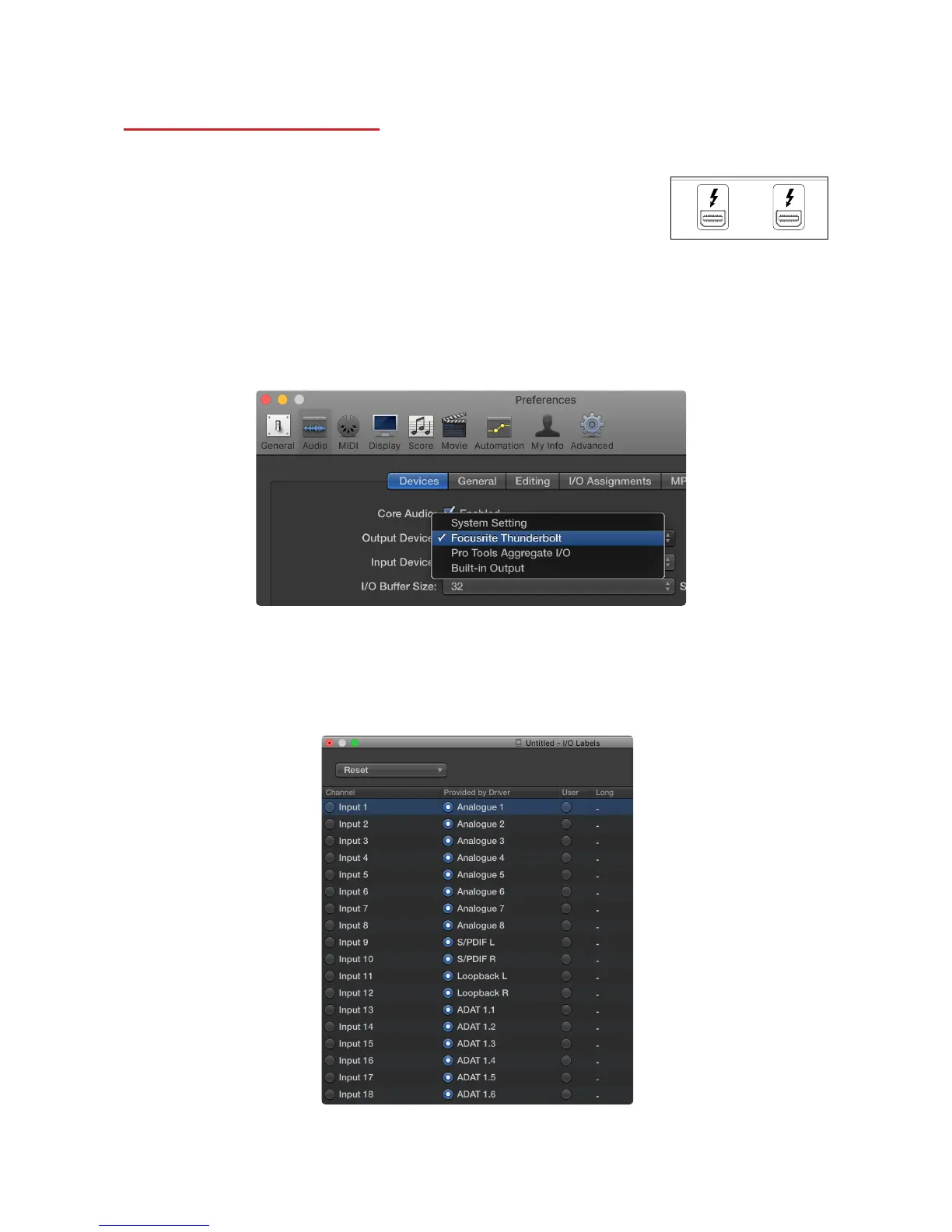

• From the menu bar, go to: Logic Pro X > Preferences > Audio...
• Under the Devices tab, set: Input Devices and Output Devices to ‘Focusrite Thunderbolt’
The following steps are optional but will simplify signal routing:
• From the menu bar, go to: Mix > I/O Labels...
• Select the I/O labels to be provided by the driver
