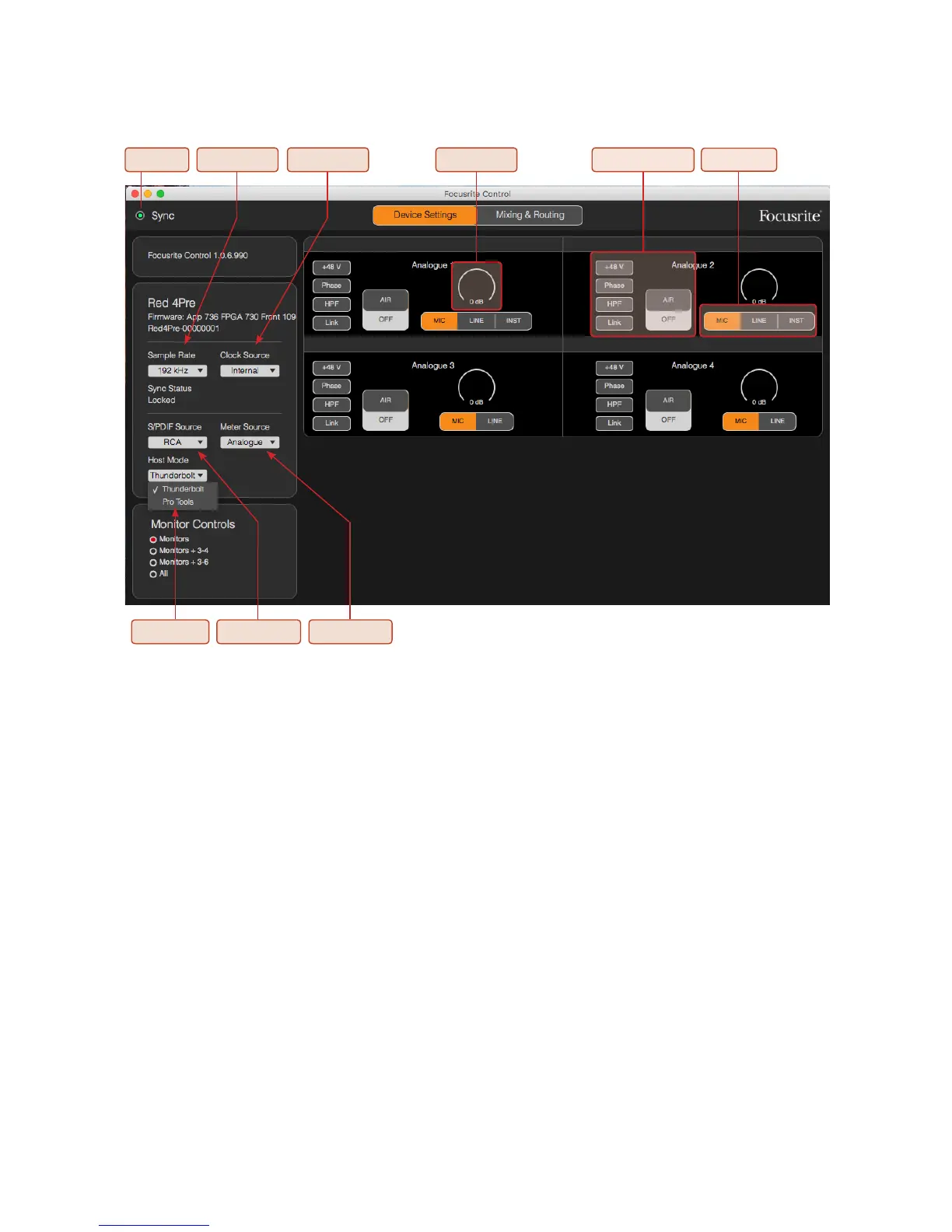

Device Settings GUI
Sync Tally – will be illuminated if Red 4Pre is locked to a valid clock source
Channel Gain – sets the input gain on analogue channels 1 – 4. Click-and-drag to change
Channel Function – click to select an input function. See page 11 for Function descriptions
Input Type – click to select the input signal type. Also see page 11 for Type descriptions
Sample Rate – select from: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Clock Source – Internal, S/PDIF, ADAT 1 & 2, Word Clock, Dante, Loop Sync (Pro Tools host mode)
S/PDIF Source – RCA, Optical
Meter Source – Internal, S/PDIF, ADAT 1 & 2, Word Clock, Dante, Loop Sync
Host Mode – Thunderbolt or Pro Tools. Changing Host type will cause the device to perform a power reset
Monitor Controls
Click to select which output channels are being controlled by the unit’s Output Encoder:
• Monitors: Monitor L/R Outputs
• Monitors + 3-4: Monitor L/R Outputs + Line Outputs 3–4
• Monitors + 3-6: Monitor L/R Outputs + Line Outputs 3–6
• All: Monitor L/R Outputs + Line Outputs 3–10
Channel GainSync Tally Channel Function Input Type
S/PDIF Source Meter SourceHost Mode
Sample rate Clock Source
