APPENDICES

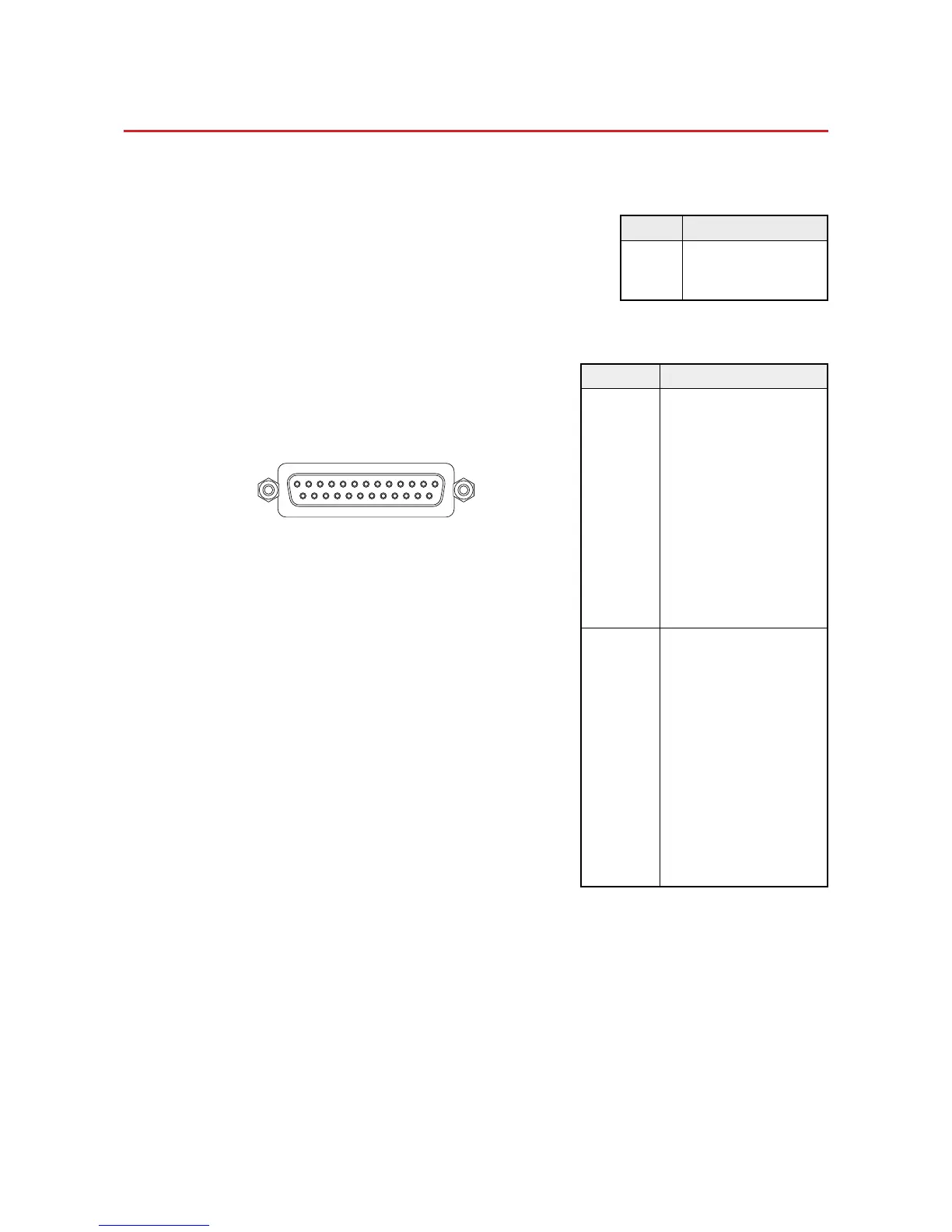

Appendix 1 – Connector Pinouts
DB25 (AES59) Connector
Connector type: DB25 Female
Applies to: Analogue Line Input / Line Output
XLR Connectors
Connector type: XLR-3 Female
Applies to: Mic Inputs
Pin Signal
1 Screen
2 Hot (+ve)
3 Cold (–ve)
Pin Signal
1 Channel 8 +
14 Channel 8 –
2 Ground
15 Channel 7 +
3 Channel 7 –
16 Ground
4 Channel 6 +
17 Channel 6 –
5 Ground
18 Channel 5 +
6 Channel 5
19 Ground
7 Channel 4 +
20 Channel 4 –
8 Ground
21 Channel 3 +
9 Channel 3 –
22 Ground
10 Channel 2 +
23 Channel 2 –
11 Ground
24 Channel 1 +
12 Channel 1 –
25 Ground
13 n/c
113
25 14
