Focusrite Red 4Pre - System Block Diagram

6

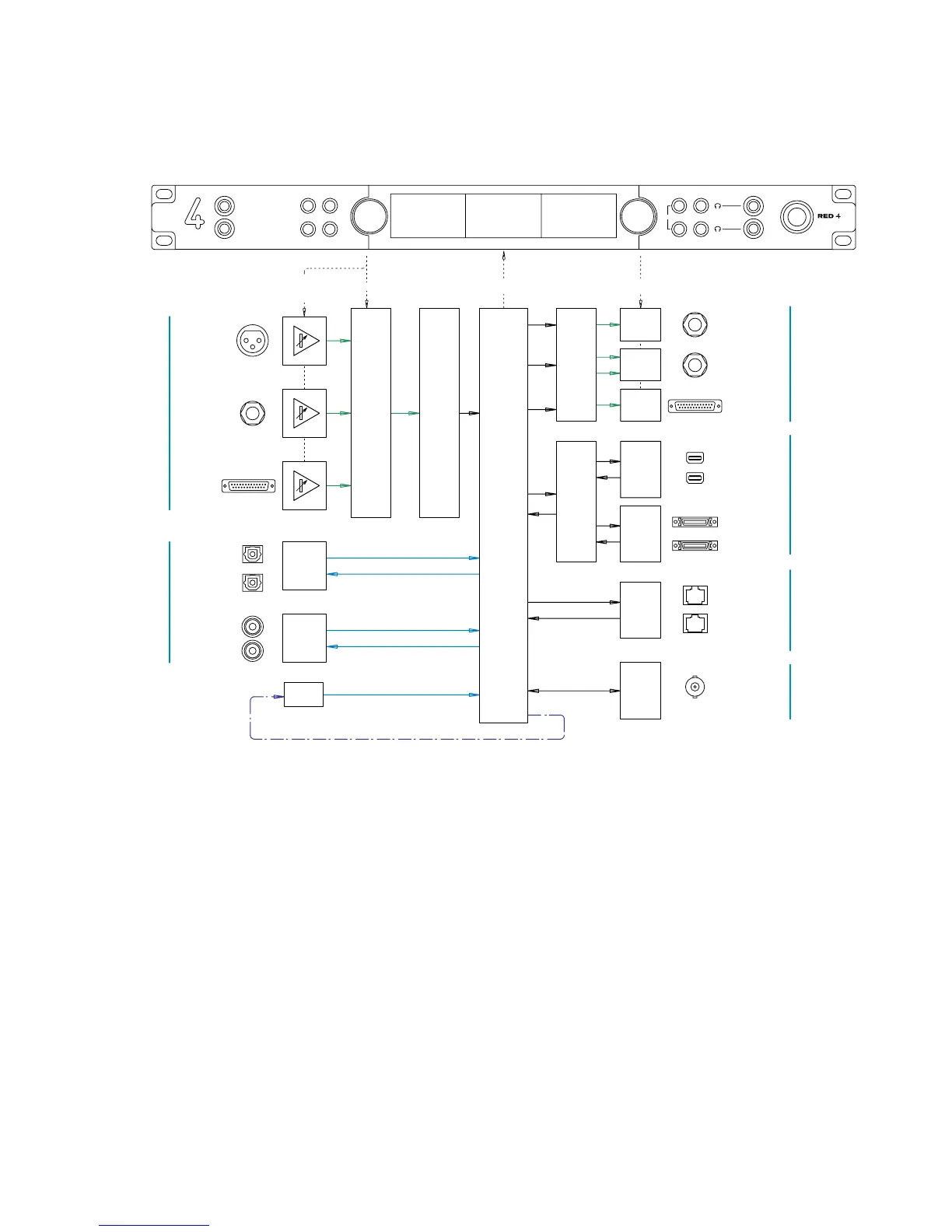

System Block Diagram
Mic
1-4
Analogue
Inputs
Pro Tools
Instrument
1-2
Line
1-8
16
2
Line
3-10
Monitor
1-2
Headphones
1-2
ADAT 1
1-8
S/PDIF In
Thunderbolt
Dante
Network
ADAT 2
9-16
S/PDIF Out
DAW
Digital
I/O
2
Analogue
Outputs
16
2
8
2
8
Word Clock
Loop Sync
Sync
Network
Loopback In
2
ch1-4
ch1-2
ch1-8
A-D
2
64
60
32
32
Input Function
& Gain
Input Select Output ControlMeters
Pre
SELECT
I
3
2
4
I
2
INST
GLOBAL
MONITOR
METER
I
2
Focusrite
ROUTER
D-A
Host
Select
Numbers indicating channel capacities relate to a 44.1/48 kHz sample rate. Refer to the Channel I/O tables
on pages 24–26 for the channel counts at higher sample rates.
