Hardware
Back Panel

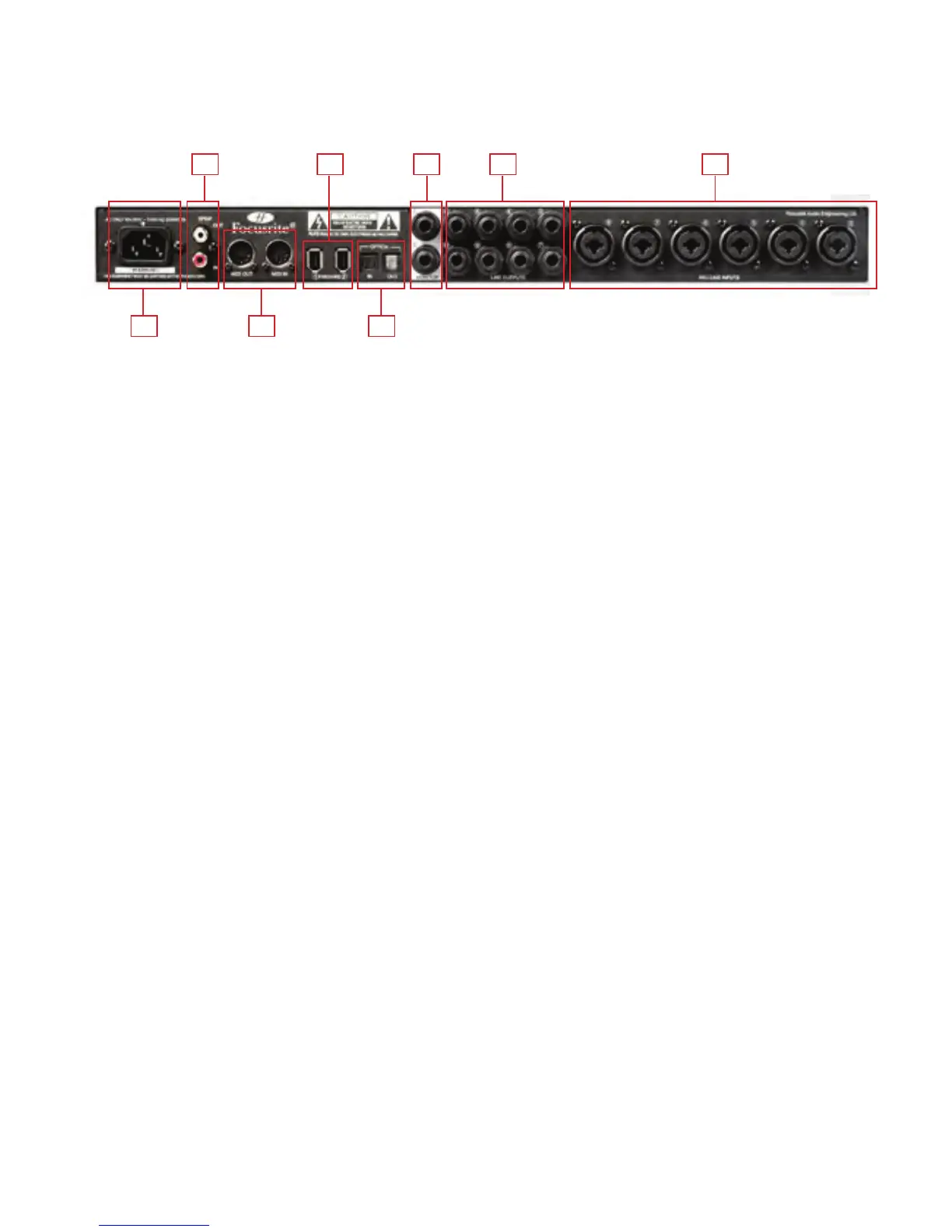

The Back Panel provides the majority of input and output connections on the Saffire PRO 40.
1. 6 Combo XLR input sockets for Mic / Line. – Each socket will accept an XLR, or 1/4 inch TRS (balanced) or TS (unbalanced)
Jack connector.
2. 8 TRS jack sockets for balanced outputs 3-10. – will accept either balanced or
unbalanced jacks.
3. 2 TRS jack sockets for balanced outputs main monitor mix. – will accept either balanced or unbalanced jacks.
4. 2 Optical ADAT input and output sockets - also available as additional S/PDIF optical i/o.
5. 2 IEEE 1394 6 pin Firewire sockets.
6. 2 Din5 MIDI input and output sockets.
7. 2 RCA S/PDIF input and output sockets.
8. 1 IEC Power inlet socket
