REF4P, REF5P and REF5BBP-T Undercounter Refrigerators 11
14. Remove screws and latch from refrigerator cabinet and the lock
from the door (Fig. 21).

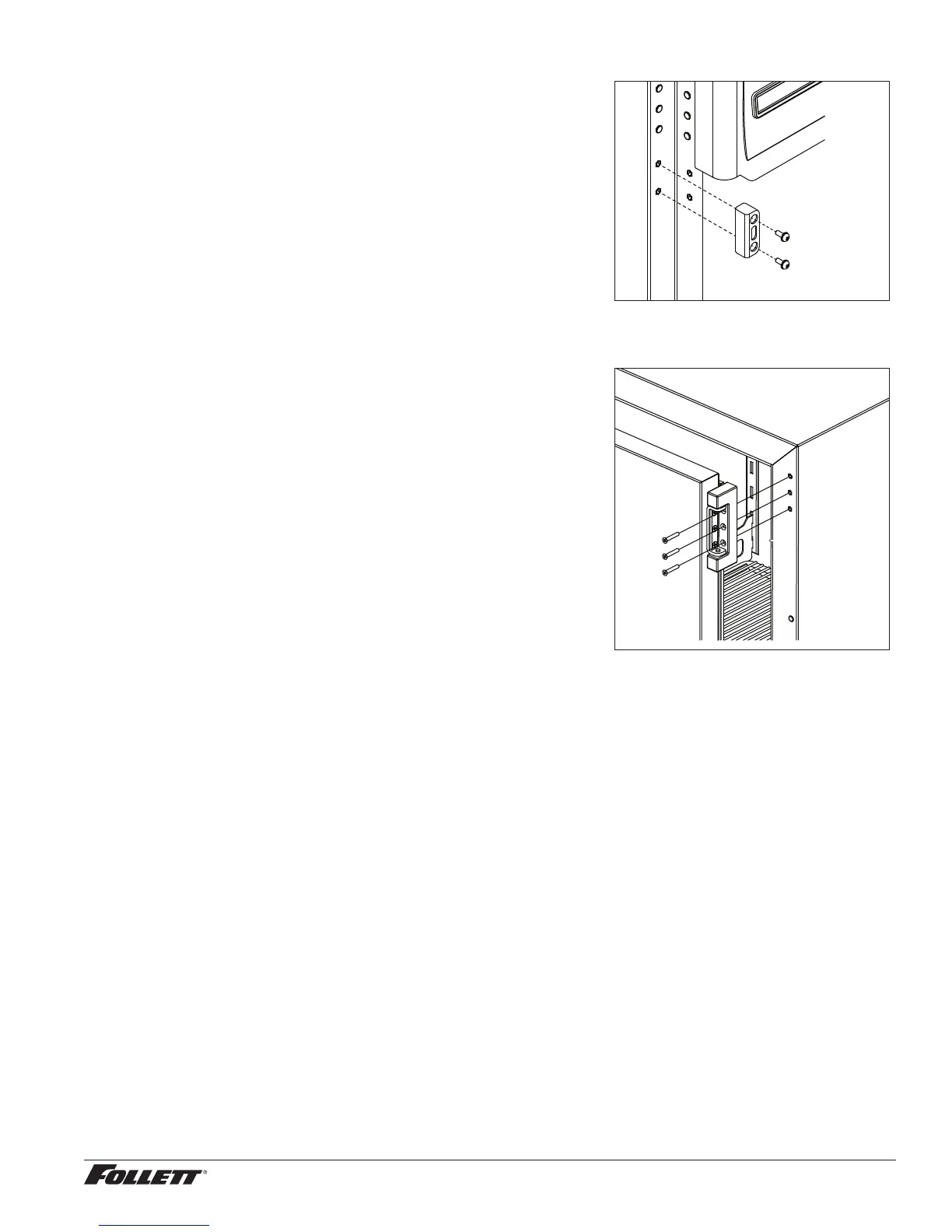

Fig. 21
15. Support door and remove screws attaching hinge to refrigerator
cabinet and remove the door (Fig. 22).
16. Remove the hinge from the door.
17. Remove hinge screws from opposite side of cabinet and transfer
to riv-nuts now left exposed from hinge removal on both the
cabinet and door side.
18. Reinstall the hinges on the opposite side of the door.
NOTE: When reversing the door the hinges must also be ipped
upside down
19. Adjust the hinges on the door by pushing the loose hinges
towards the gasket side of the door until the hinge is stopped by
the screws. Tightened screws.
20. Remove knock out on left side panel and route door cable and
strain relief through opening.
21. Reinstall the door onto the cabinet but keep the mounting
screws loose temporarily.
22. Reinstall lock and strike bracket to opposite side of door/cabinet.
23. Reinstall tension spring onto top hinge and adjust for proper
closure.
24. When spring is properly tensioned, door should automatically
close when held open roughly 1”.
25. Reinstall hinge covers.
26. Route door cable to the P10 terminal on the control board.
27. Reinstall control module.
28. Reinstall kickplate.
Fig. 22
