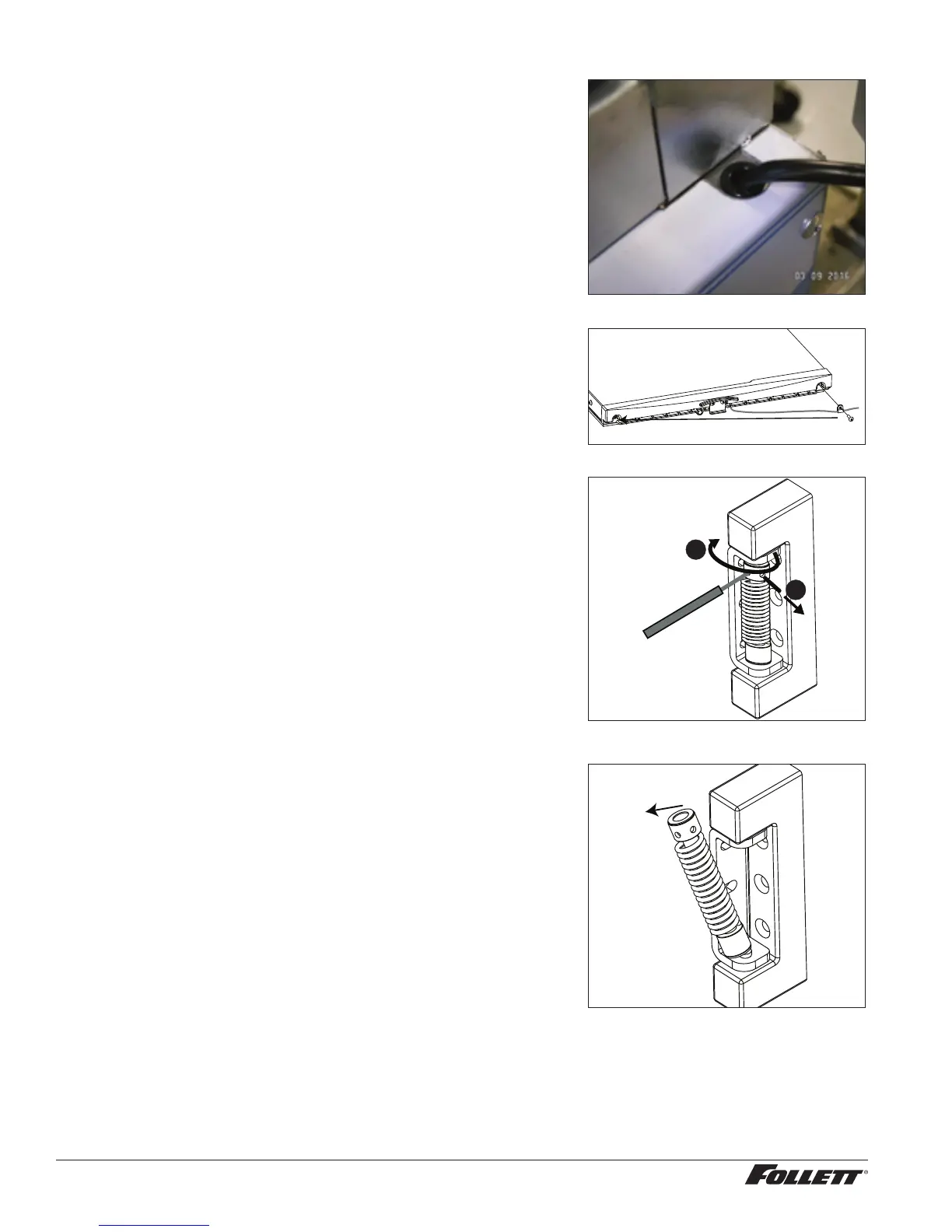

7. Remove the wire and strain relief from the right side panel and
pull the communication cable through opening (Fig.17).
Fig. 17
8. Remove the screw from the white strap on the hinge side of the
wire channel (Carefully remove the control wire from the channel
ensuring the insulation jacket does not tear.) Route through
channel to opposite side of door. Reinstall the wire and strap on
the opposite side of the door (Fig.18).
Fig. 18
9. Use a at screwdriver to carefully remove hinge covers.
10. Rotate top of spring assembly (clockwise for left-hands doors
and counter-clockwise for right-hand doors) (Fig.19.1) to
remove the pin (Fig.19.2).
11. Relieve torque on the spring.
12. Remove the knockout on the kick panel and move the strain
relief to the opposite side.
Fig. 19
13. With at-head screwdriver, simultaneously push down and pry
the top of the spring out of the top of the hinge (Fig. 20).
Fig. 20
1
2
10 REF4P, REF5P and REF5BBP-T Undercounter Refrigerators
