Reversing the Door Swing – Optional (units Serial #H94599
and above)
Tools needed:
§ #2 Phillips head screwdriver
§ Flat-head screwdriver
§ Awl
§ Gloves
§ Safety glasses
1. Remove kick panel* and disconnect reed switch where
applicable (Fig. 14). Disconnect the door sensor switch wires
and grey control wire.
* If the unit has a keypad lock, the door must be open to remove the kick panel.

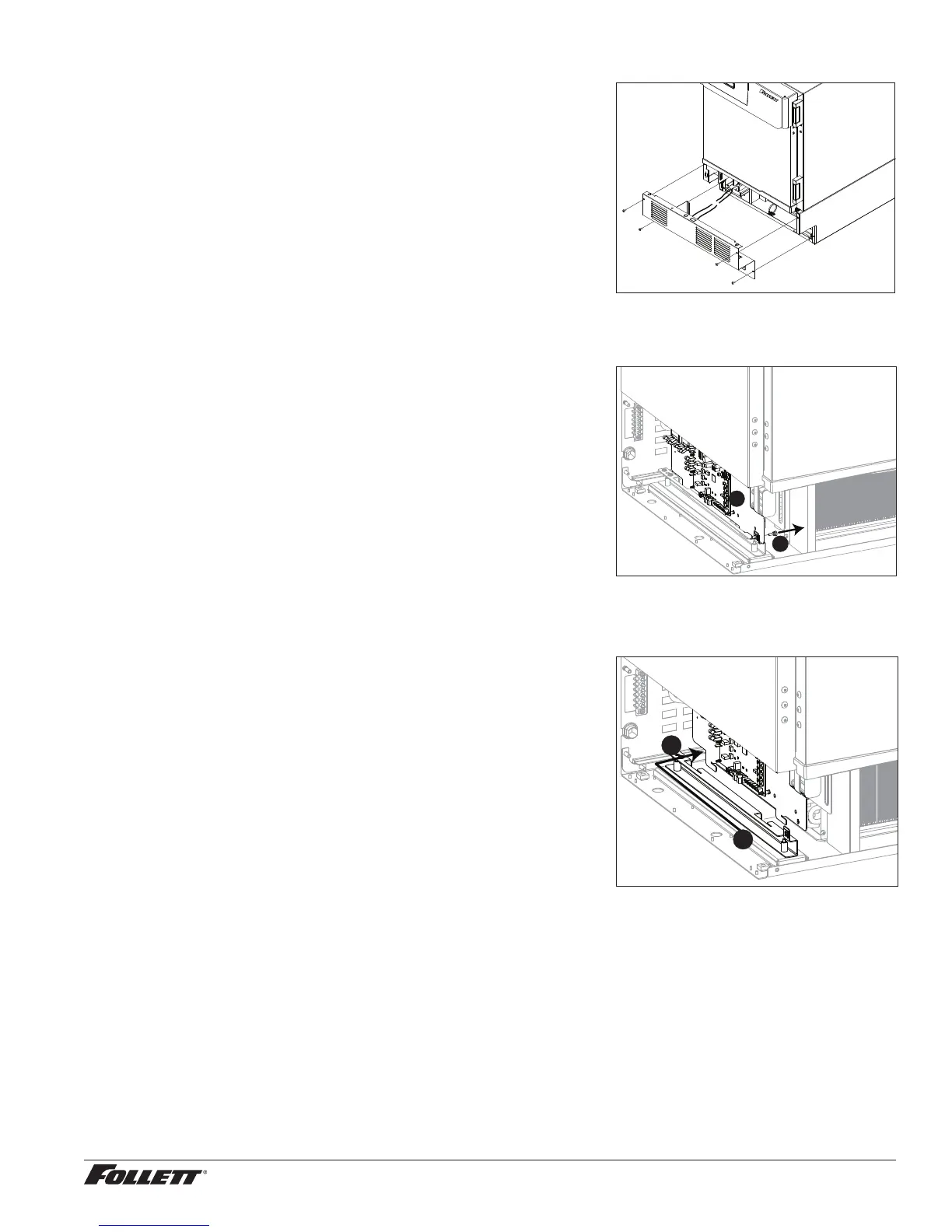

Fig. 14
2. Find the control module on the left-hand side of the unit, just to
the left of the condenser.
3. Remove the thumb nut (Fig. 15.1) on the bottom front of the
control module (Fig.15.2).
Fig. 15
4. Using the handle at the front of the control module, push the
control module back (Fig. 16.1) until the stop is felt.
5. Tilt the top of the module to the right to free the top of the
module from the restraining screw.
6. Slide the module to the right (Fig. 16.2) to free the module
bottom clips from the channel and pull module forward.
Fig. 16
1
2
1
2
REF4P, REF5P and REF5BBP-T Undercounter Refrigerators 9
