9. Remove screws and latch from refrigerator cabinet and the lock
from the door (Fig. 11).

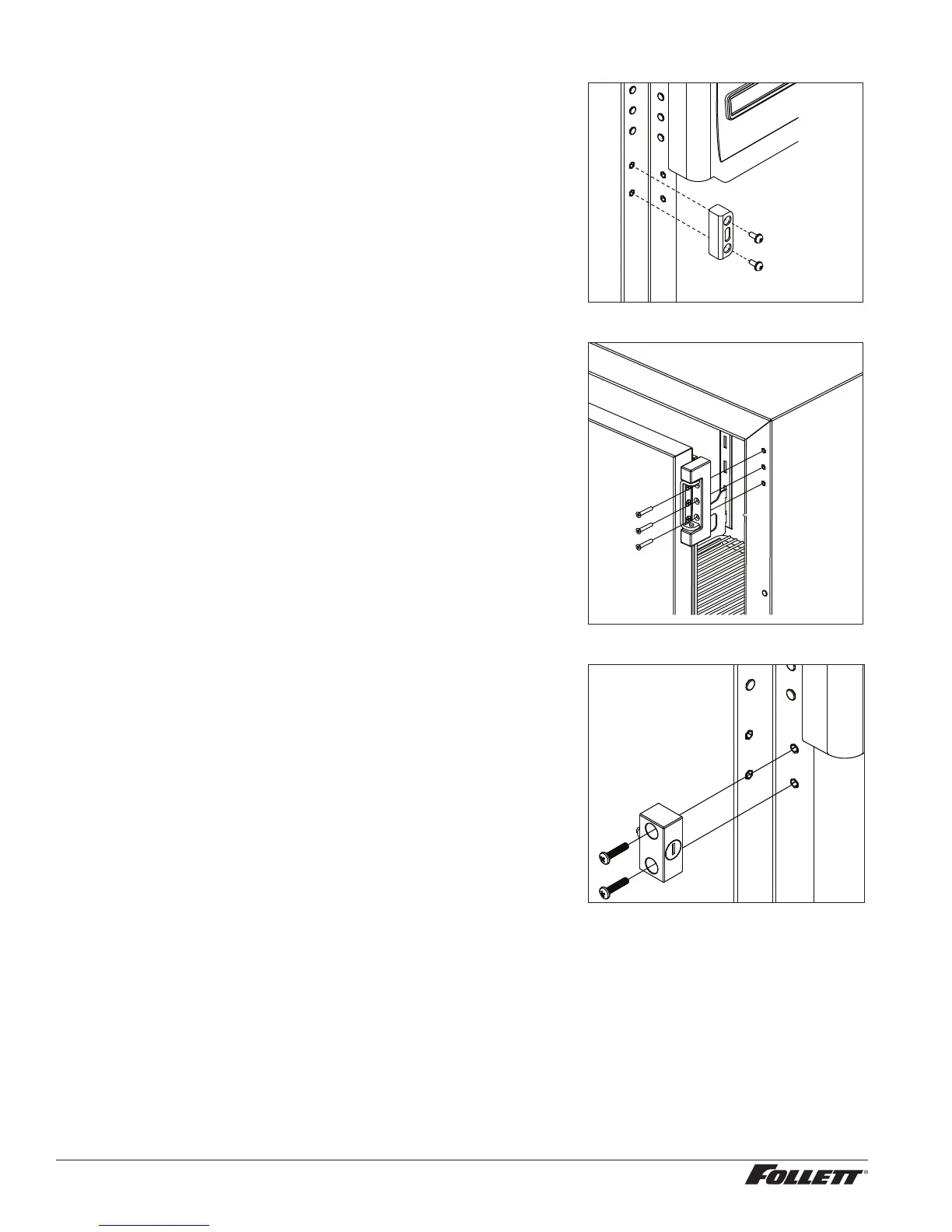

Fig. 11
10. Support door and remove screws attaching hinge to refrigerator
cabinet and remove the door (Fig. 12).
11. Cover hinge screw holes with screws removed from
opposite side of door and door frame.
12. Remove the hinges from the door and remove the screws from
the opposite side of the door. Install those screws in the screw
holes where the hinges were removed.
13. Reinstall hinges on opposite side of door.
Fig. 12
14. Reinstall the hinges onto the cabinet but keep the mounting
screws loose.
Note: When reversing the hinge from right to left, the hinge must
also be ipped upside down.
15. Adjust the hinges on the door by pushing the loose hinges
towards the gasket-side of the door until the hinge is stopped by
the screws. Tighten the screws.
16. Reinstall the door on the opposite side of the doorframe. Adjust
if needed.
17. Reposition lock to other side of door (Fig. 13).
18. Reinstall latch screws torqued to 25 in-lbs.
19. Reinstall screws on the door.
Fig. 13
8 REF4P, REF5P and REF5BBP-T Undercounter Refrigerators
