Information Logs
§ All available graphs, data logs and event logs are accessed through
the Information Logs function. The home screen in the Information
Logs section displays the product (P3) temperature graph with
one week’s data. Date and time information is displayed on the
horizontal axis.
§ The Performance Plus units come factory set to display only the
product temperature (P3) on the graph. All of the probes on the
Performance Plus unit can be viewed on the graph if desired.
Probes can be added to the graph through the advanced setting
under P1 to P8 by selecting the probe and changing the parameter
from No to Yes. The selected probe will now display on the graph.
– P1 control, P2 defrost, P3 Alarm, P7 Suction, P8 Discharge
§ Zoom in (+) or Zoom out (–) on an event/temperature on the home
screen will change the time scale.
§ Using the left and right arrows below the graph will scroll the graph.
All the stored temperature data on the graph is viewable.

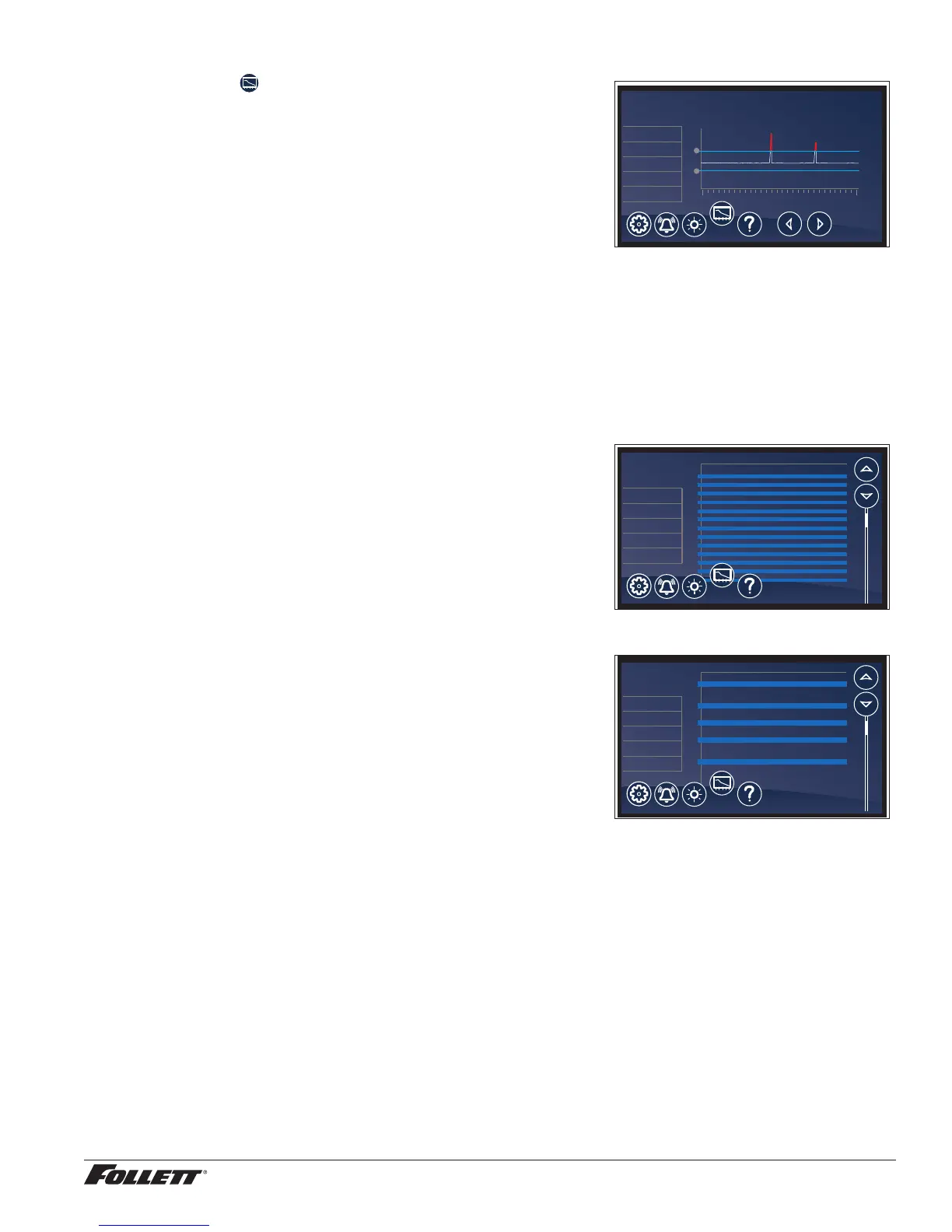

Fig. 36
38.4 F
HIGH
LOW
P3
P1
41.5 F
35.1 F
(1 - 10)
ON
3
OFF
Advanced Settings
i
i
20130101 20130201
+ Zoom in
- Zoom out
Options
Event log
Temperature log
§ Temperature Log – to display a chronological listing of logged
temperatures (latest logged temperature will display rst), touch the
“Temperature Log” label to the left of the screen. Use the UP and
DOWN arrows to the right of the screen to scroll through the logged
temperatures.
Fig. 37
38.4 F
HIGH
LOW
P3
P1
41.5 F
35.1 F
(1 - 10)
ON
3
OFF
Advanced Settings
i
i
20130101 20130201
+ Zoom in
- Zoom out
Options
Event log
Temperature log
3/1/13 12:30AM 41.1F 41.0F
3/1/13 01:00AM 39.4F 39.8F
Date
3/1/13 12:15AM 42.2F 41.1F
3/1/13 12:45AM 40.3F 39.9F
3/1/13 01:30AM 38.6F 39.7F
3/1/13 01:15AM 38.5F 39.8F
3/1/13 01:45AM 39.7F 39.8F
3/1/13 02:00AM 39.8F 39.9F
3/1/13 02:30AM 40.0F 39.7F
3/1/13 02:15AM 39.9F 39.8F
3/1/13 03:00AM 41.8F 39.5F
3/1/13 02:45AM 41.9F 39.6F
3/1/13 03:15AM 40.7F 39.6F
3/1/13 03:30AM 40.0F 39.7F
3/1/13 04:00AM 41.9F 39.9F
3/1/13 03:45AM 41.7F 39.8F
3/1/13 04:30AM 40.5F 39.7F
3/1/13 04:15AM 40.4F 39.6F
3/1/13 04:45AM 42.0F 39.8F
3/1/13 05:00AM 41.9F 39.9F
3/1/13 05:30AM 41.7F 39.7F
3/1/13 05:15AM 41.8F 39.6F
3/1/13 06:00AM 40.8F 39.9F
3/1/13 03:45AM 40.7F 39.8F
3/1/13 03:15AM 40.9F 39.6F
Time Product RTD 1
+ Zoom in
- Zoom out
Options
Event log
Temperature log
§ Event Log – to display a chronological listing of events (including
errors, alarms and alerts), touch the Event Log label to the left
of the screen. Use the UP and DOWN arrows to the right of the
screen to scroll through the logged temperatures.
Fig. 38
38.4 F
HIGH
LOW
P3
P1
41.5 F
35.1 F
(1 - 10)
ON
3
OFF
Advanced Settings
i
i
20130101 20130201
+ Zoom in
- Zoom out
Options
Event log
Temperature log
Verified 2:30PM 20130116
Event Description Time Date
+ Zoom in
- Zoom out
Options
Error Out of temperature 2:28PM 20130116
Back in temperature 2:35PM 20130116
Alert Door open 4:55PM 20130116
Verified 5:05PM 20130116
Door closed 4:56PM 20130116
Power restored 7:10PM 20130116
Verified 7:20PM 20130116
Error Door open alarm 5:00PM 20130116
Verified 2:30PM 20130116
Error Out of temperature 2:28PM 20130116
Back in temperature 2:35PM 20130116
Error Power failure 7:00PM 20130116
Temperature log
Graph
Keypad access log - download only
Insert USB stick and tap Keypad Log to view. File downloads as an excel
compatible .csv le.
Data logging
§ The Performance Plus controller is capable of storing up to 50,000
readings per probe. The factory setting for the sample rate is every
15 minutes, which will provide enough storage for 520 days. The
sample rate can be change to provide data logging for a longer or
shorter time interval by changing the Sample Rate (Min) in the
advanced settings menu. 0 = off and 360 minutes maximum.
