3
3
.
.
3
3
A
A
l
l
p
p
h
h
a
a
3
3
0
0
0
0
0
0
D
D
M
M
o
o
d
d
e
e
l
l
s
s
E
E
x
x
t
t
e
e
r
r
n
n
a
a
l
l
A
A
s
s
s
s
e
e
m
m
b
b
l
l
y
y
1
U
2
3
4
11
12
5
6 13
7
14
8
15
9 16
17
D
W
E
N
S
18
10
19
20
21

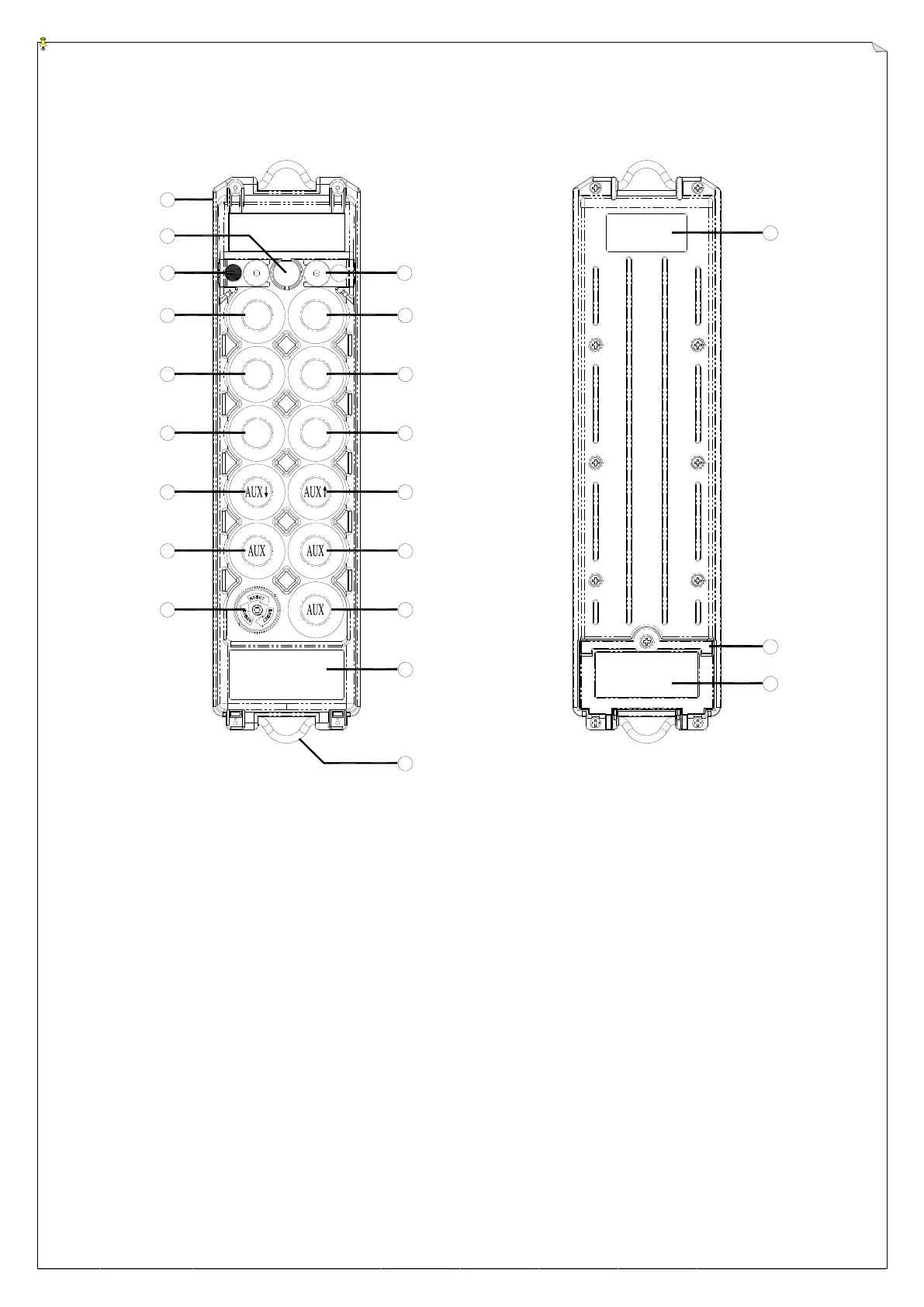

(Transmitter Front View) (Transmitter Back View)
1. Transmitter Unit 11. Pushbutton #1 (U or ↑)
2. Status LED Display* 12. Pushbutton #3 (E or →)
3. Spare Power Key 13. Pushbutton #5 (N or ↗)
4. Pushbutton #2 (D or ↓) 14. Pushbutton #7 (AUX or AUX ↑)
5. Pushbutton #4 (W or ←) 15. Pushbutton #9 (AUX or AUX →)
6. Pushbutton #6 (S or ↙) 16. Pushbutton #11 (START/AUX)
7. Pushbutton #8 (AUX or AUX ↓) 17. Warning Label
8. Pushbutton #10 (AUX or AUX ←) 18. Shoulder Strap Ring
9. Emergency Stop Button (EMS) 19. System Information
10. Power Key Switch 20. Battery Cover
21. FCC/IC Label
* Please refer to page 25 for transmitter Status LED display information
