Fomotech Alpha 608A - Receiver Function Settings; Α604;607;608 Receiver Function Settings

- 24 -
FUSE
JP1
OPEN→JUMP
SHORT→JUMP
AC
DIP-SW
U
JP3
JP2
JP4
7.3 Receiver Function Settings
7.3.1 α604/607/608 Receiver Function Settings
7.3.1.1 Set by programming tool
7.3.1.2. Adjust Jumper setting function by decoder board
Adjusting jumper setting to change function selection (refer to Jump Set table as below):
JP1 => α607A/B/608: MODE 0: Start the system either by AUX pushbutton (No.7 pushbutton) or
power switch.
MODE 1: JP1 setting is invalid. Start the system by power switch.
α604/607T: Start the system by power switch.
JP2 => Mode 0: Set the MAIN relay auto shutdown time as 5 minutes or base on customer’s single
request. The auto shutdown time is set either by the manufacturer or distributor
within setting range 0~30 minutes. (default 5 minutes)
Mode 1: JP2 setting is invalid. The MAIN relay auto shutdown time is controlled by the
transmitter.
JP3 => 1. Refer to “JP3 (*1)“ of Jumper Set Table on Page 24 & 25, for α604A/B, 607A/AT/B/BT, 608A/B
2. Refer to”JP3(*2), α608T only” on Page 25, for α608AT/BT.
Receiver function settings:
A. The MAIN relay will be activated when system is started. (After the receiver power is started and
emergency stop button is elevated)
B. The MAIN relay auto shutdown time can be set as 5 minutes or depends on customer’s single request.
(Remark 1)
C. When transmitter voltage is low, relays for the receiver MAIN and LV (Remark 1) will be auto shutdown
after one minute.

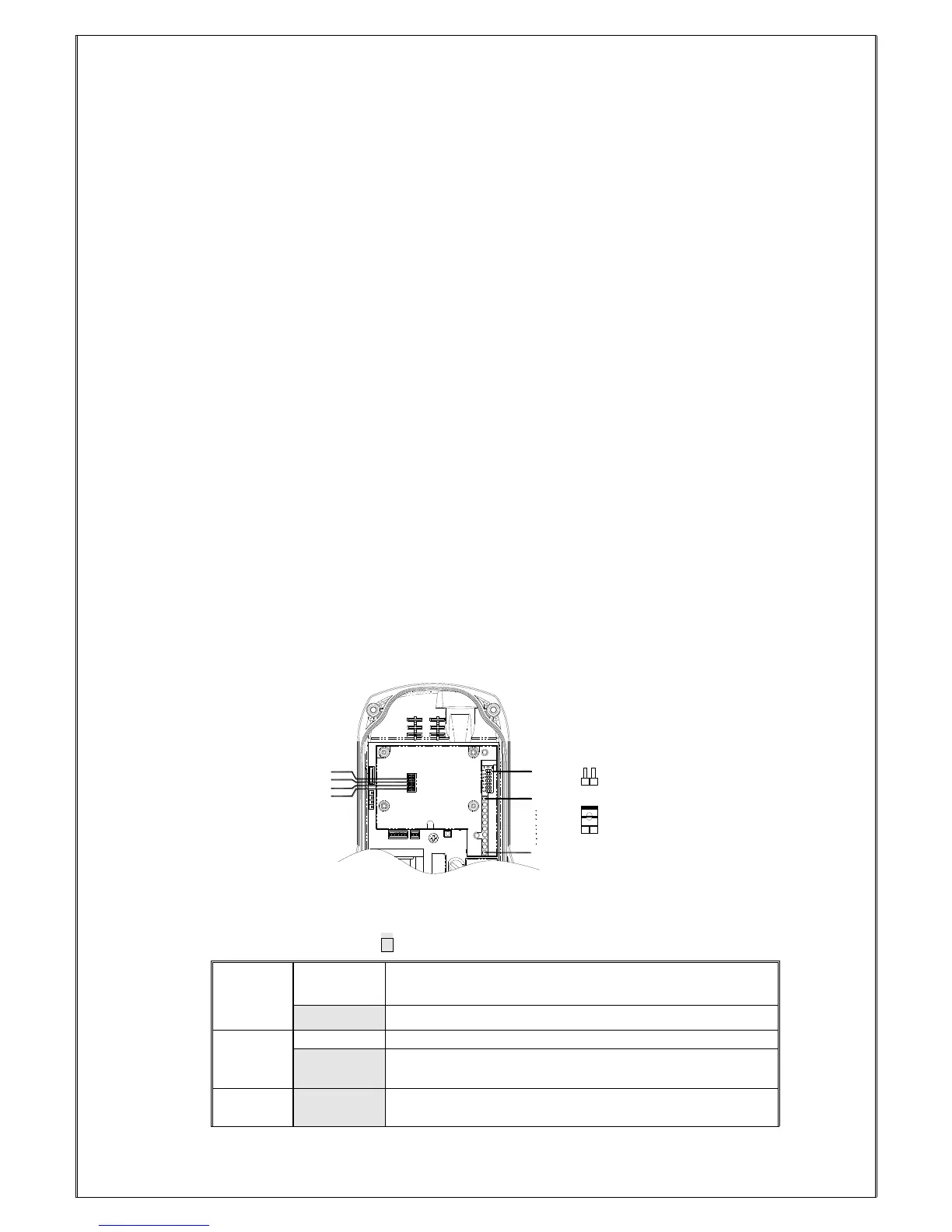

(Fig. 13) Alpha 607, 608 models
Jumper Set table: in-plant setting (default).
JP1
(Mode 0)
Open
Transmitter AUX pushbutton start (when MAIN
relay is off)
Short
Transmitter power switch start (when MAIN off is off)
JP2
(Mode 0)
Open
No auto shutdown time on Main relay
Short
The receiver MAIN will be deactivated after consecutive
5 minutes of standby time.
JP3(*1)
Open
When the transmitter voltage is low, LV relay
activates/deactivates every second.
