Fomotech Alpha 608A - Receiver Functionality Configuration via Jumpers

- 32 -

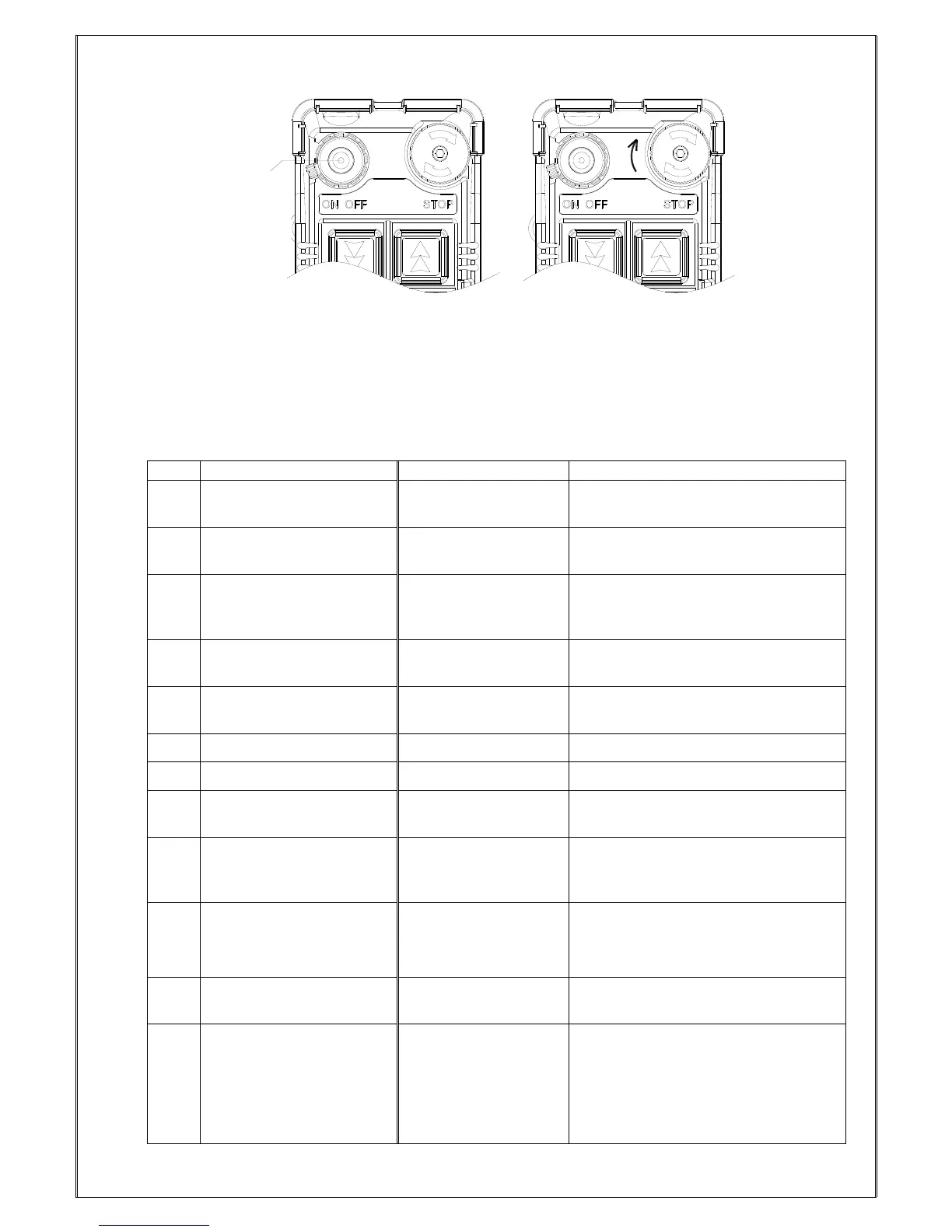

STOP: press → lock (emergency stop) STOP : Elevate clockwise → reset (Turn on the transmitter at any time)
8.2 Transmitter Status Light
Type
Status
Problem
LED Indication
1
Charging
Place transmitter into
charger
Constant red light ON
2
Power on when voltage is
low
BATT<2.2V
Blinking red light flash
ON_0.1/OFF_1.9 sec (until power off)
3
Setting failed or invalided
Set data by using
JUMPER & dip-switch
without following rules
Fast blinking on
Red light ON_0.1/OFF_0.1 sec
4
Setting completed
JP1 or JP2 inserted
Constant green light ON until transmitter
power shuts off.
5
EEPROM ID error
EEPROM ID code does
not match CPU data
Constant red light ON until transmitter
power shuts off
6
RF module abnormal
PLL UNLOCK
Red light ON_0.1/OFF_0.1 sec
7
ID even number error
Setting error
Red light ON_1/OFF_1 sec
8
Pushbutton locked
Power on pushbutton
connected
Red light ON_1.9/OFF_0.1 sec (until
power off)
9
Normal power on
BATT>=2.2V and all the
pushbuttons are not
depressed
All the lights ON_2 sec
10
STOP status
STOP button is pressed
MODE 0: Red light ON_0.5/ OFF_
0.5sec, flash 30sec.
MODE 1: all the lights OFF
11
Low voltage during
operation
BATT<2.2V and press
pushbutton
Red light flash ON_0.1/OFF_1.9sec
12
High temperature
protection
encoder board
temperature higher than
80℃
Press and hold the pushbutton:
Blinking blinks ON_0.05/OFF_0.15
second
All pushbutton released: All lights are
off
Power status light
