6.- OUTPUT: signal indicators for the output channels 9/10 or 11/12 according to the RD port connection
9/10 or 11/12 in the MPX-4088 audio matrix.
- SIGNAL: indicates signal presence in the corresponding channel.
- CLIP: indicates signal saturation in the corresponding channel.

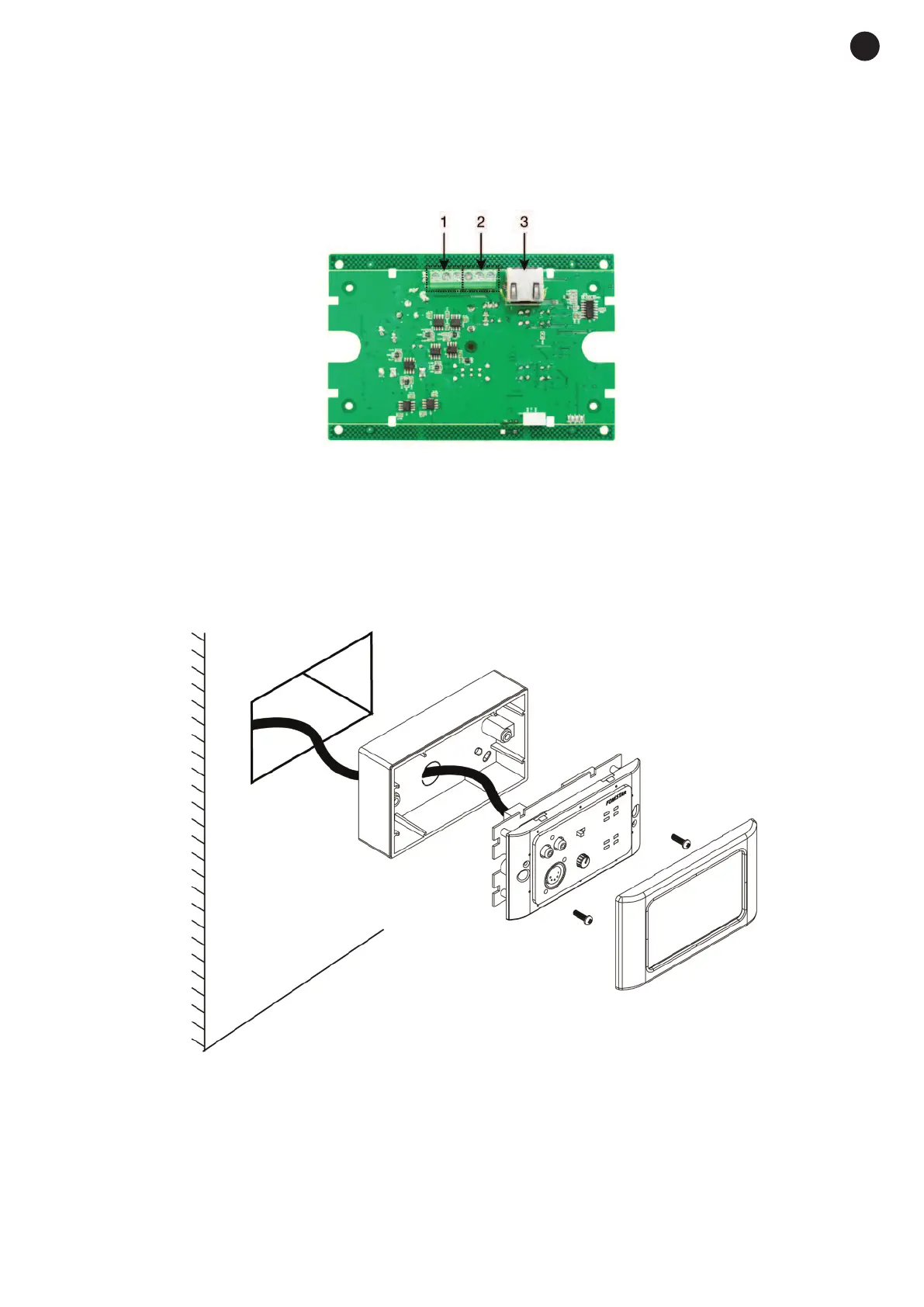

INTERIOR PANEL
1.- Euroblock connection terminals, corresponding to the output channel 9 or 11.
2.- Euroblock connection terminals, corresponding to the output channel 10 or 12.
3.- RD port for connection to MPX-4088 matrix. RJ-45 connector.
INSTALLATION
