FONESTAR MPX-4088 - MPX-440 X RD PORT EXTENDER; Front Panel and Rear Panel

MPX-440X
DESCRIPTION
The model MPX-440X is an RD port extender for the matrix mod. MPX-4088.
CONTROLS AND FUNCTIONS

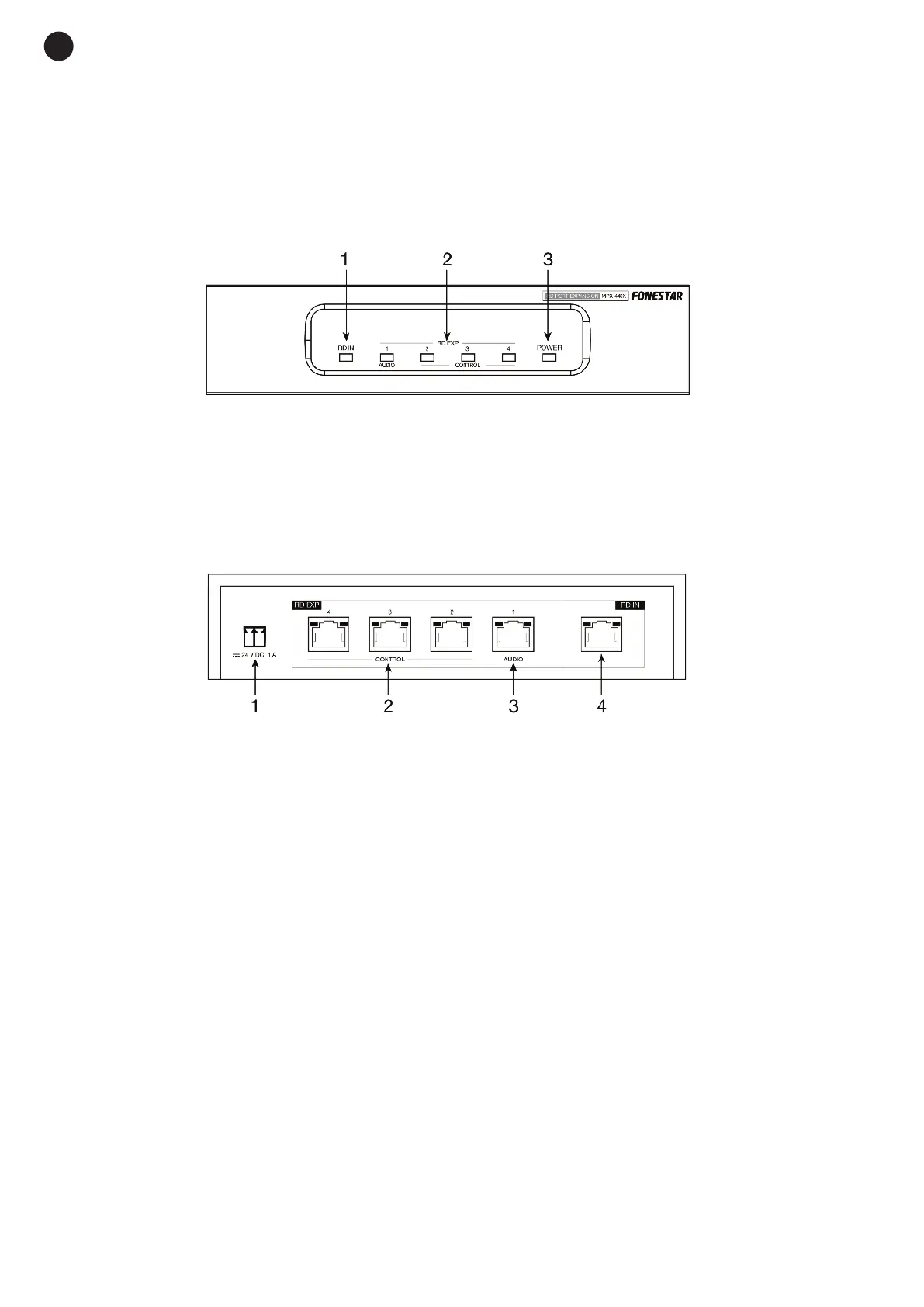

FRONT PANEL
1.- RD IN: LED indicator of connection to the mod. MPX-4088.
2.- RD EXP: LED indicator of connection via the RD EXP ports.
3.- POWER: LED power indicator.
REAR PANEL
1.- 24 V DC power supply, 1 A. Euroblock connector.
2.- RD EXP CONTROL: digital port for connection to model MPX-420V. RJ-45 connector.
3.- RD EXP AUDIO: digital port for connection to models MPX-400MIC, MPX-410ES and MPX-430VS.
RJ-45 connector.
4.- RD IN: digital port for connection to matrix model MPX-4088. RJ-45 connector.
